1.5L REVOTORQ ENGINE

153

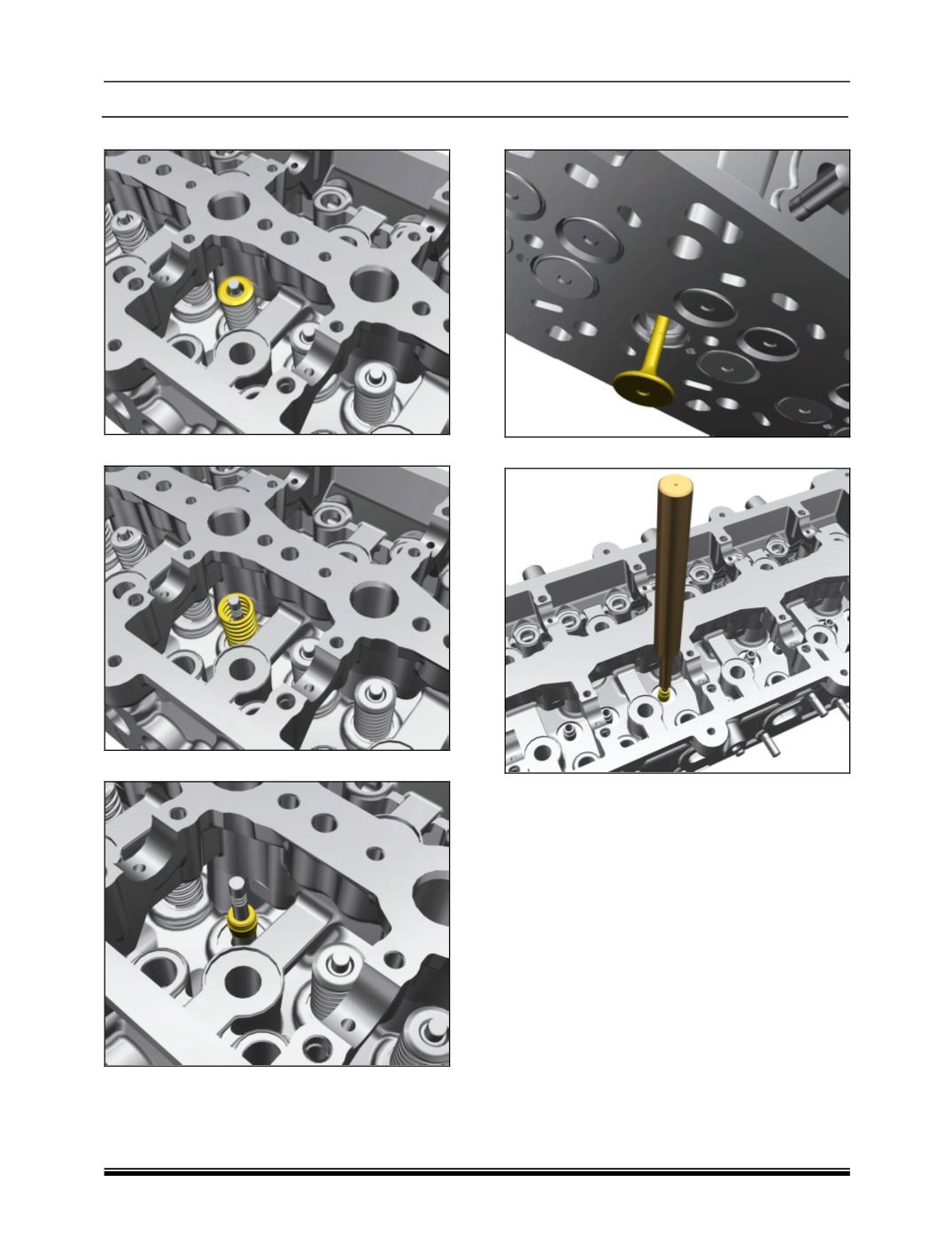

3.

Remove the valve springs retainers.

4.

Remove the valve springs.

5.

Remove the valve guide seal.

6.

Remove the valves

(Inlet and Exhaust).

7.

Remove the valve guide.
