1.5L REVOTORQ ENGINE
152
NOTE
Gently place the cylinder head on a table with
clean surface, and take care to avoid damage to
the head surface, valves and glow plug
projections
.
ix. REMOVAL OF CYLINDER HEAD SUB-
ASSEMBLIES

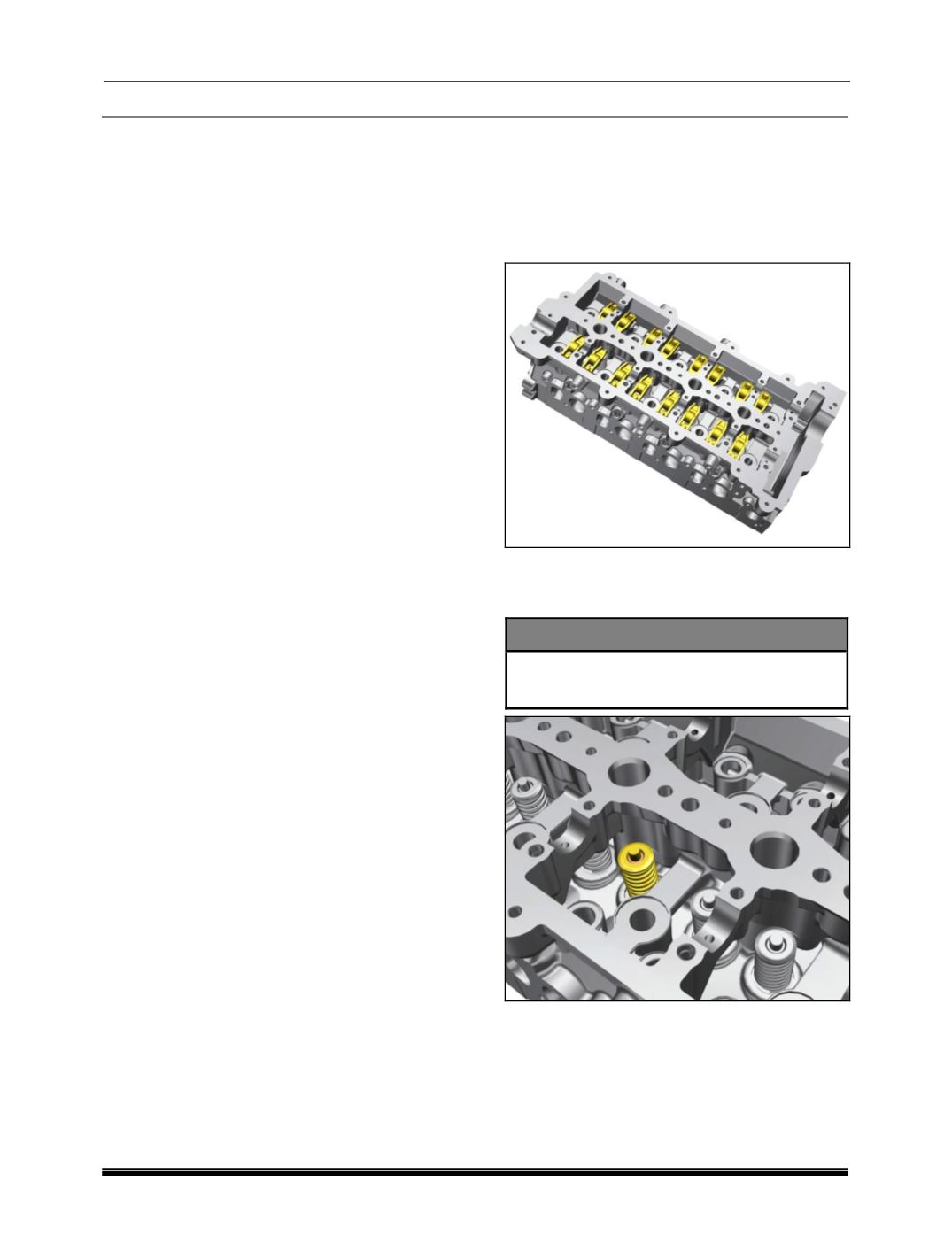

1. Remove all the roller finger followers (RFF)
along with hydraulic lash adjusters (HLA) by
lifting them vertically and placing them in
correct sequence and in vertical direction only
to avoid oil drain from HLA.
2. Using valve spring compressor (2868 5890 06
02), compress
valve springs and remove lock
halves
.
SPECIAL TOOL
Valve Spring Compressor -:
2868 5890 06 02
