1.5L REVOTORQ ENGINE
114

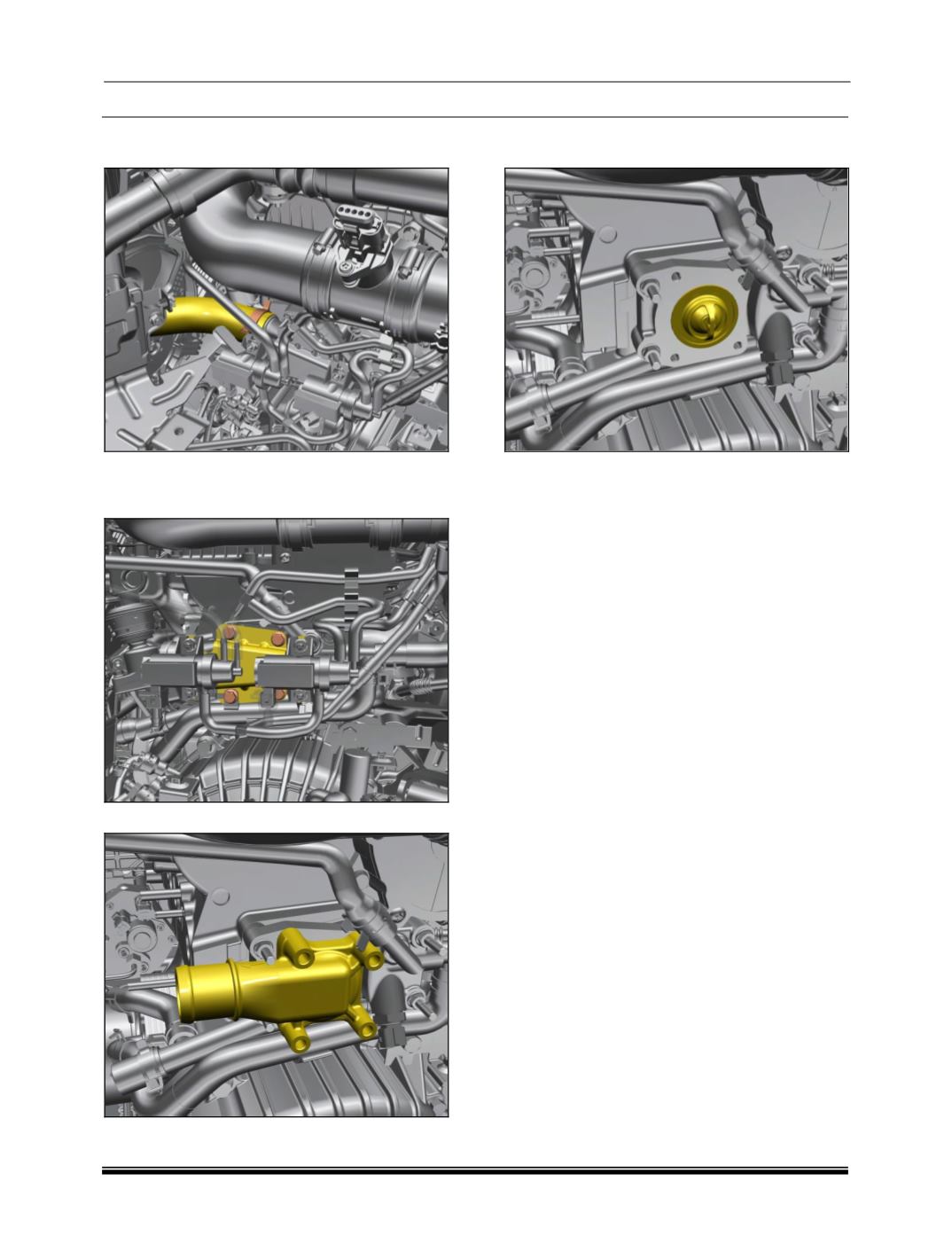

4. Remove the spring band clip and disconnect
the radiator hose of the thermostat.
5. Remove the mounting bolts of the EVRV
bracket and take out the bracket along with
both EVRV.
6. Remove the thermostat cover.
7. Remove the thermostat assembly from the
water box housing.
FITMENT
For fitment follow the reverse order of removal.
Tighten fasteners to the recommended torque.
