NEXON

1.5L REVOTORQ ENGINE

C. COOLING SYSTEM

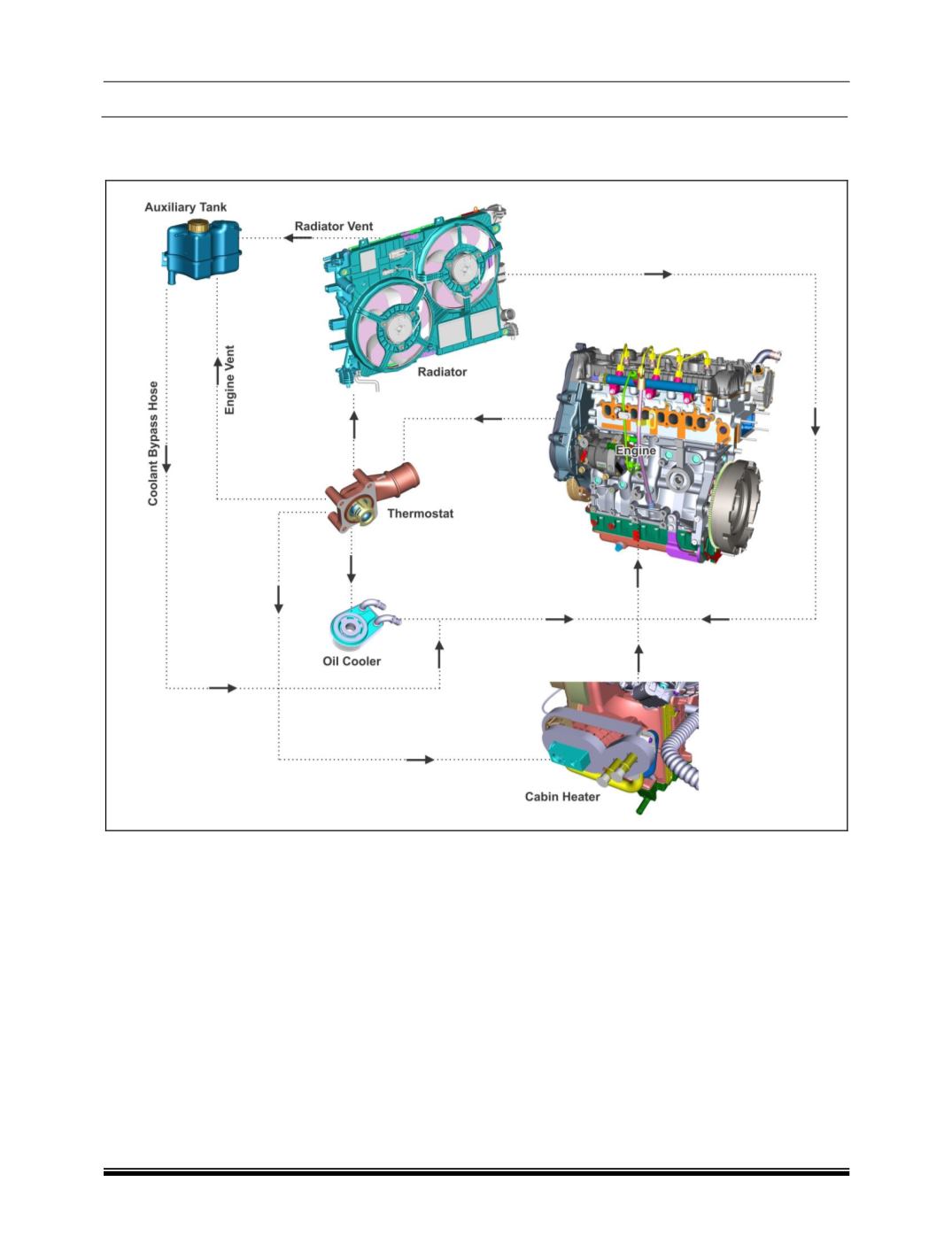

Cooling System Schematic Layout

Description

The above figure gives the coolant flow circuit with

the components. The coolant flow is controlled by

the thermostat

In addition to the Cylinder head and

block, the coolant also circulates through Oil cooler,

and radiator

Auxiliary tank is provided to compensate for the

drop in coolant level. In addition there is a de-

gassing line connected between thermostat housing

and radiator top tank. These help in maintaining the

system pressure created by expansion and

contraction of the coolant.

The Cooling system consists of the following

components.

1. Radiator.

2. Auxiliary Tank

3. Thermostat.

4. Water pump.
