NEXON

1.5L REVOTORQ ENGINE

B. EXHAUST SYSTEM

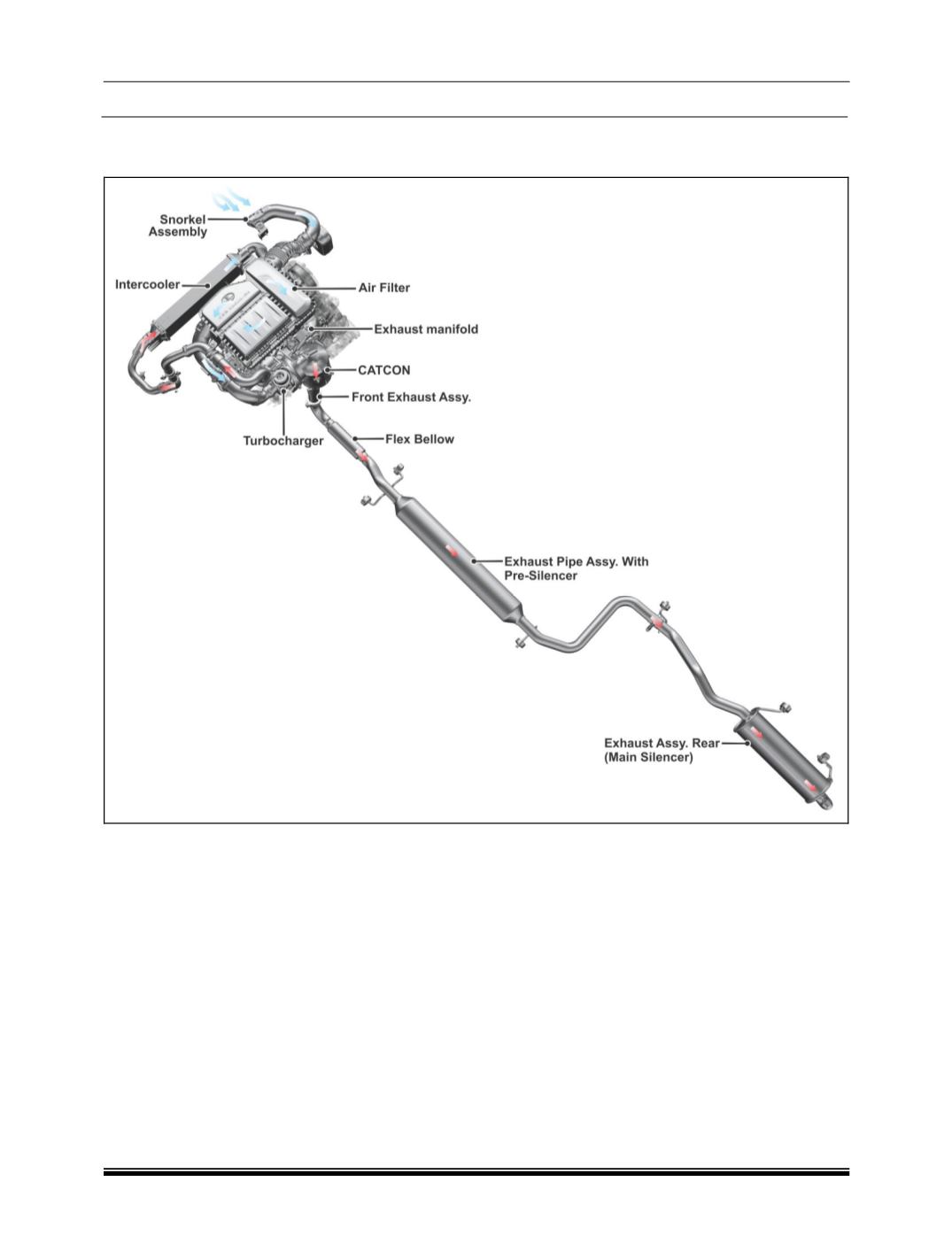

EXHAUST SYSTEM SCHEMATIC LAYOUT

DESCRIPTION

The exhaust system consists of an exhaust mani-

fold, Turbocharger, Catalytic Converter, Pre-silencer

and Rear silencer. The exhaust pipes are supported

using rubber hangers. Flange joints are provided at

each component to accommodate removal of each

component individually.

The catalytic converter is a post-treatment device

for oxidizing the CO, HC and particles transform-

ing them into carbon dioxide (CO

) and water

vapour (H

0).whereas the silencer is provided to

dampen the sound of the exhaust gases coming

out of the engine.

The Exhaust system consist of the following com-

ponents

1. Exhaust manifold.

2. Turbocharger.

3. Catalytic Converter

4. Exhaust Assy, Front

5. Exhaust Pipe Assy with Pre-silencer

6. Exhaust Pipe Assy, Rear (Main Silencer)

7. Rubber hanger
