1.2L REVOTRON ENGINE

210

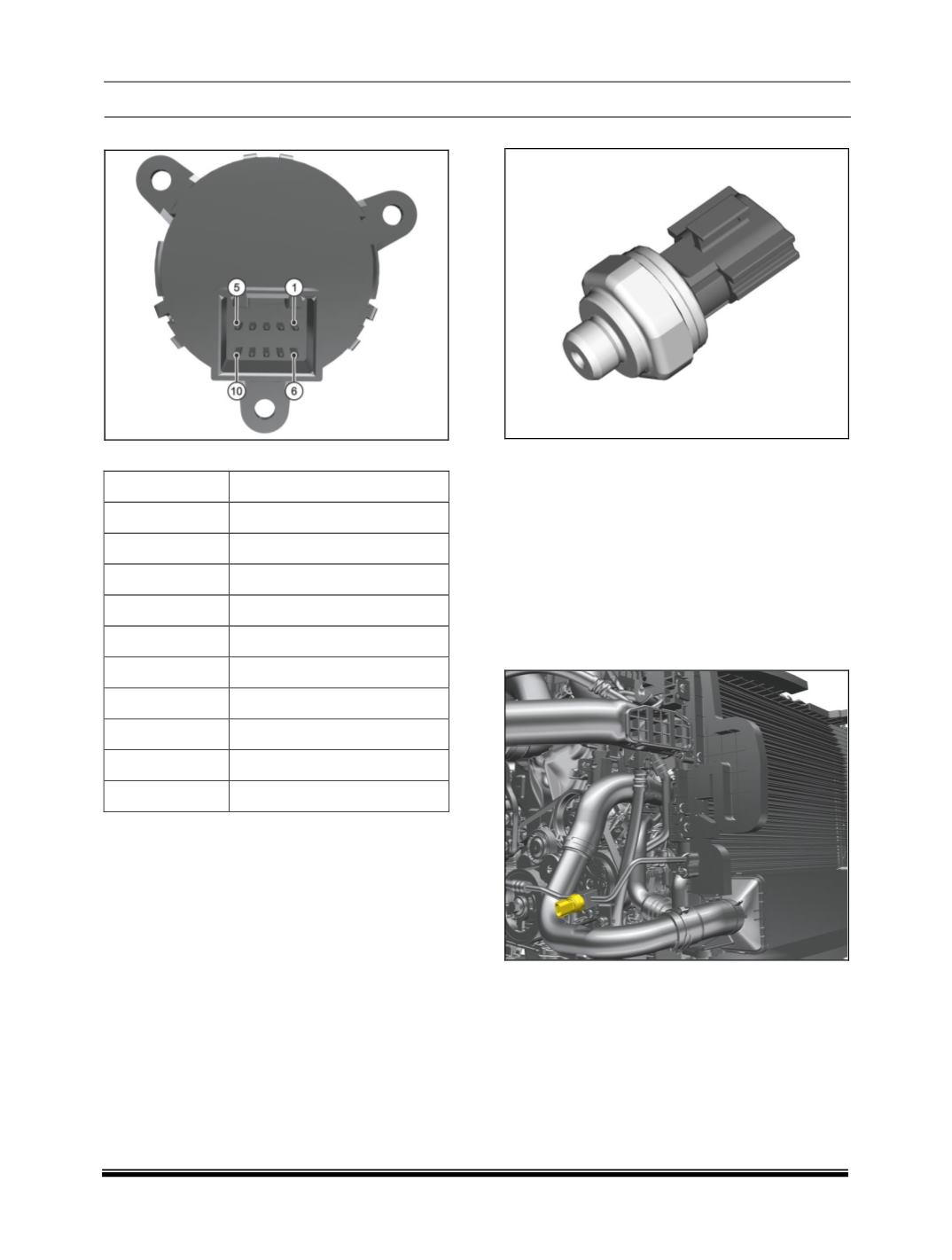

CONNECTOR DETAIL

PINOUT DETAILS

Pin No

Description

1

Switch 1

2

Switch 1 GND

3

Switch 2

4

Switch 2 GND

5

ACC LED

6

IGN LED

7

BACK LIGHT (-)

8

BACK LIGHT (+)

9

RING VEH GND (-)

10

RING LED (+)

VIII. AC PRESSURE SENSOR

The pressure sensor translates the measured

pressure within the AC system into a voltage that

is sent to the ECU of a car. Based on the

preferred temperature in the car the ECU will

manage the compressor in such a way that the

pressure in the AC system is most effective to

create the required atmosphere in the car. Next to

this the pressure will also be used to shut down

the compressor when pressure gets out of limit

and therefore protect the compressor against any

damage pressure might cause.

SENSOR LOCATION
