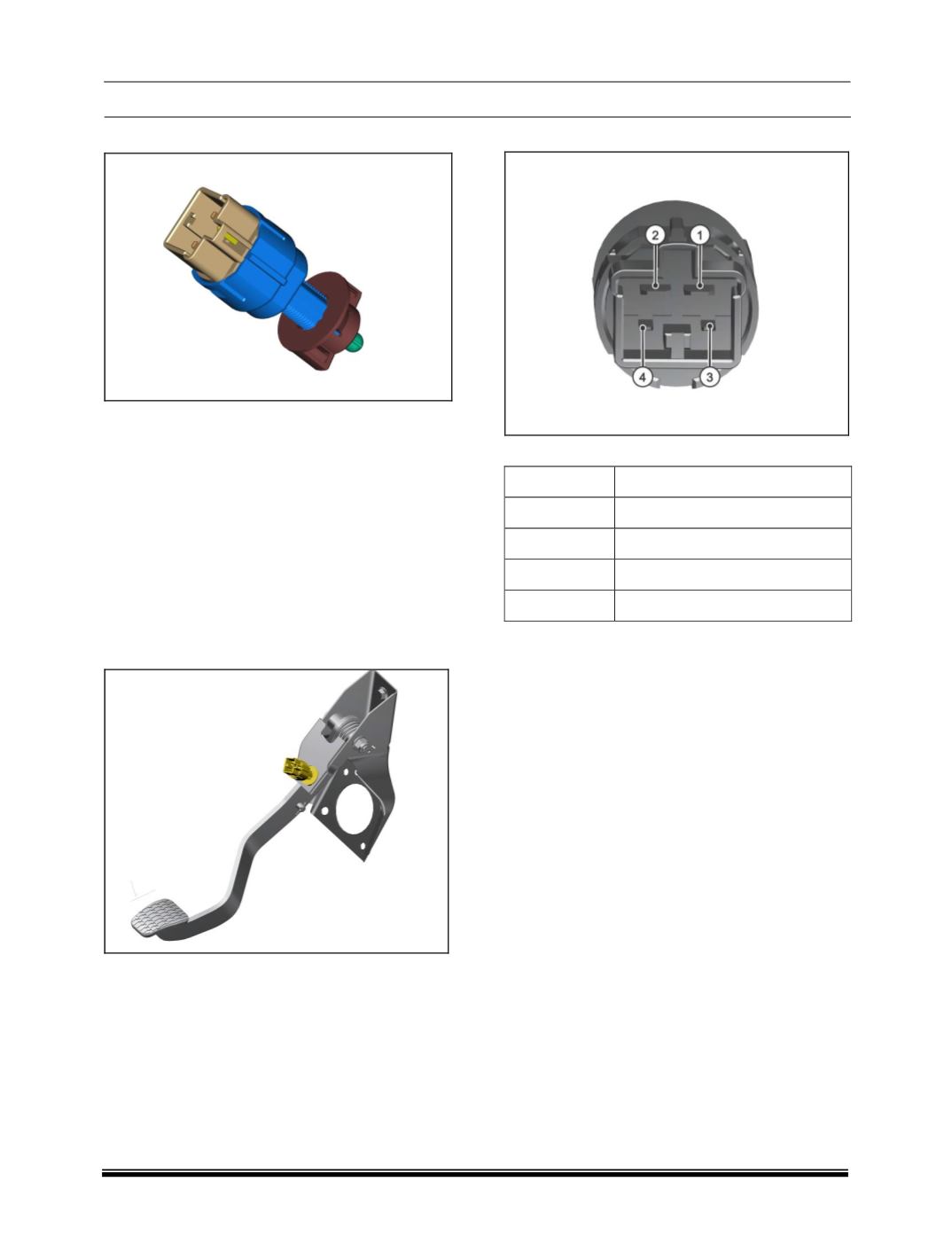

IV. BRAKE SWITCH
COMPONENT DETAILS
It provides information to ECU about the brake
application and ECU maintains the optimum fuel
supply.
The brake pedal is fitted with two Brake switches,
which provide the information to ECU about the
brake pedal application.
Upper brake switch give signal to EMS ECU
for cruise control functionality.
Lower brake switch give signal to tail lamp&
ABS/ESP ECU.
COMPONENT LOCATION
CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Main Brake Switch Signal
2
AC Trinary Pressure Sensor
3
Redundant Brake
4
IGN Sw KL-15
