247 / 1133
1.2L REVOTRON ENGINE
209

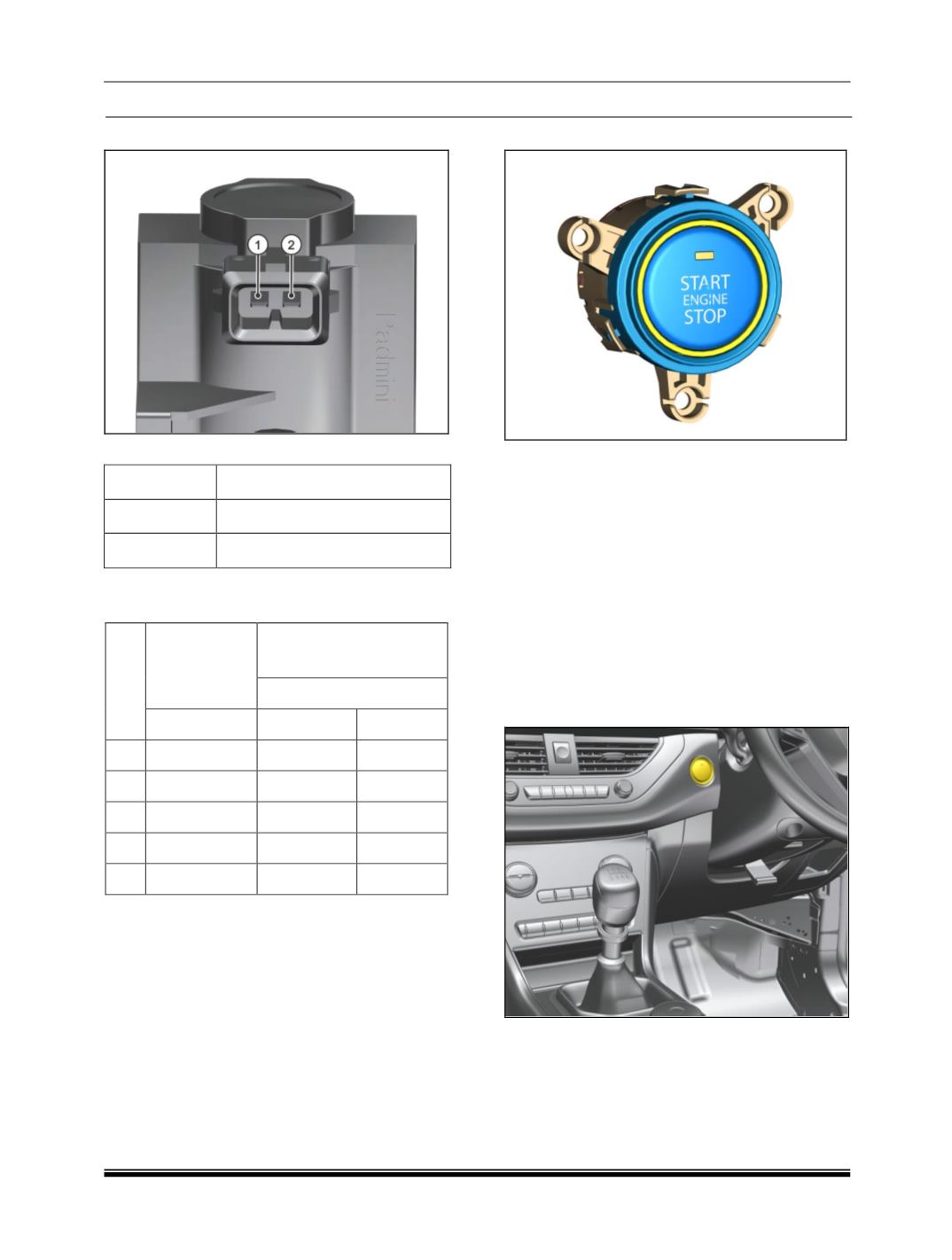

CONNECTOR DETAILS
PINOUT DETAILS
Pin No
Description
1
Supply
2
EGR Command
Vacuum Measurement Values
Equipment: Vacuum Gauge
Sr
No
Engine
Speed
Vacuum Pressure
(mm of HG) - Minimum
EGR EVRV
RPM
Inlet
Outlet
1
800 (Idle)
650
270
2
2000
640
260
3
3000
640
260
4
4000
640
0
5 4700 (Fly Up)
640
0
VII. START STOP SWITCH
Start Stop Switch also known as Push to Start
Button. This is main component to trigger engine
cranking and controls the completer vehicle power
mode (OFF, ACC, IGN, & CRANK) for entire
vehicle architecture.
It is provided with multicolor
LED to indicate different vehicle conditions to
customer,
OFF (No color)
ACC ON (Amber)
IGN ON (Green)
CRANK ON (Green)
Engine Run (Green)
SWITCH LOCATION
