1.2L REVOTRON ENGINE

145

VIII. Removal of Cylinder Head Sub-

Assemblies

NOTE



To avoid damage to valve tips, do not

rotate the camshaft.

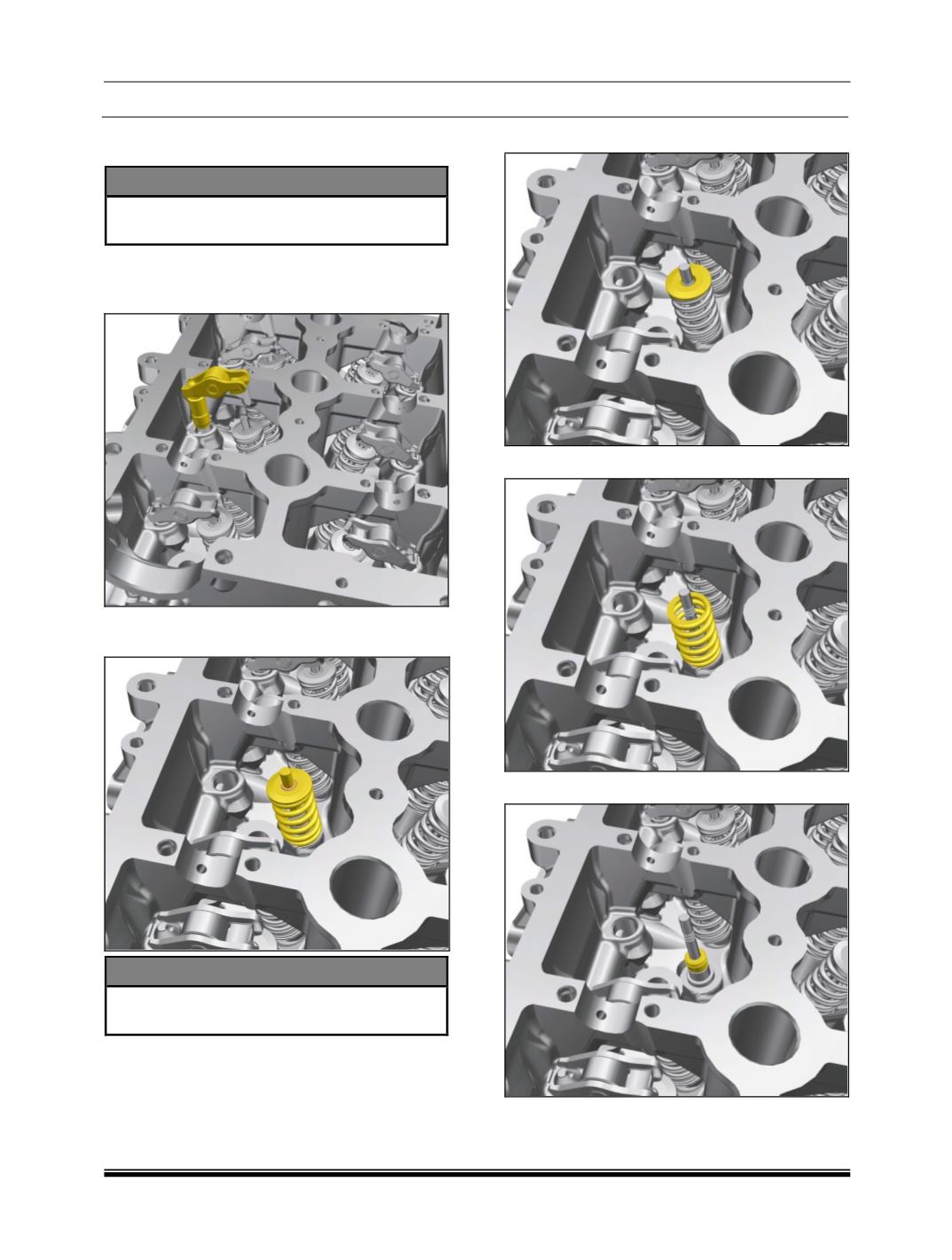

1. Remove the RFF along with Hydraulic Lash

Adjuster (HLA) from the cylinder head as

shown in figure below.

2. Using Special Tool, to compress and remove

the valve spring lock halves.

CAUTION



Use only special tool for removing the lock

halves. Not adhering could result in injury.

3. Remove the valve spring retainer.

4. Remove the valve spring.

5. Remove the valve guide seal.
