TIAGO/TIGOR AMT Gasoline
DTC Troubleshooting Guide
Version: 4.0
Date: 18-04-2017
Author: Sathi/Anupama
Page: 336 of 427
Copyright ©
TATA MOTORS Ltd.
This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.
Circuit Schematic Diagram:
NA
Component Location & Image:-
NA
Connector Location: -
1) Inter-harness connector is In Engine Compartment, below battery and 2) TCU connector is below Glove box.
Connector View & Information: -

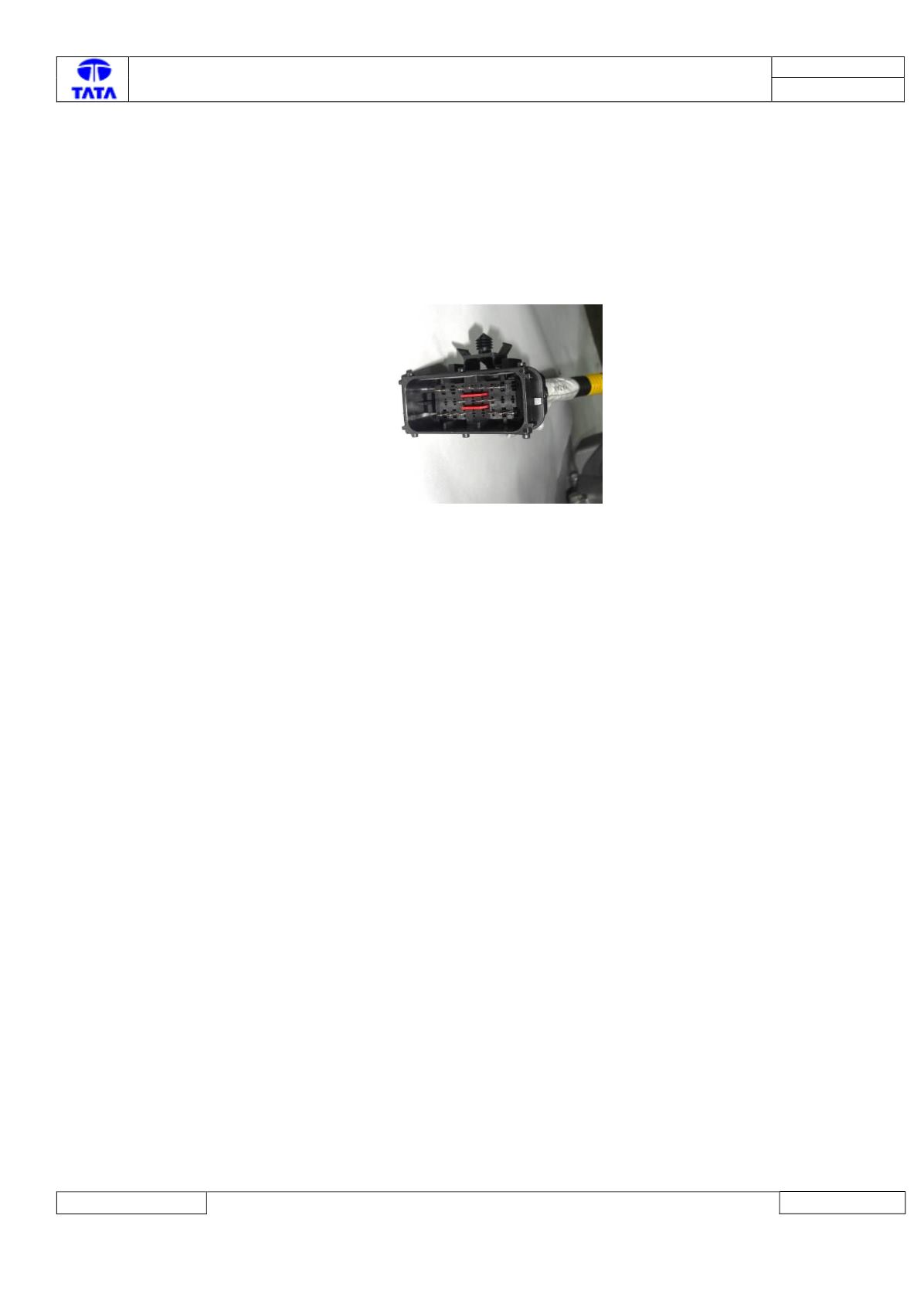

Inter wiring harness connector of AMT KIT
Inspection Method: -
