NEXON

ELECTRICAL

219

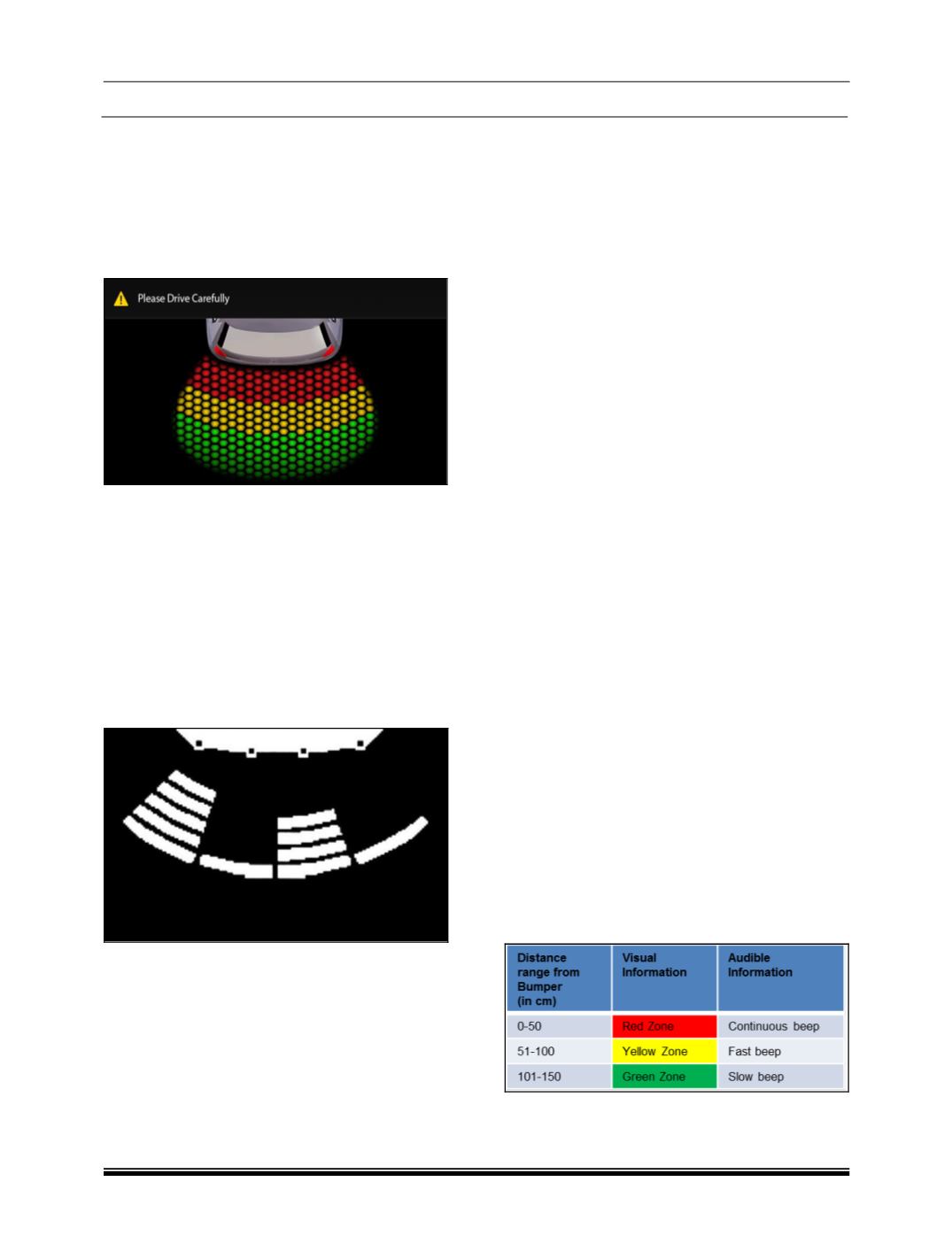

1.30 REVERSE PARK ASSIST SYSTEM

Reverse Park Assist system is an electronic

parking aid that will assist you to park your vehicle

safely when in reverse gear mode. It provides

audio and visual information through the vehicles

infotainment system.

Option I

There are 4 ultrasonic sensors placed on the rear

bumper of the vehicle. Once the system is

activated, the sensors will detect the proximity of

an obstacle from the bumper, and this information

would be displayed on the vehicles infotainment

system.

WARNING

0 to 25 cm obstacle detection performance is not

guaranteed due to ultrasonic sensor technology

limitation.

Option ll

The system displays the Park assist screen when

the reverse gear is engaged. The display is

stopped when the reverse gear is disengaged.

NOTE

Turning the ignition ‘OFF’ ‘while the Park assist

feature in running would disable the feature.

Ultrasonic Park Assist

Ultrasonic Park Assist feature will assist you to

park vehicle safely while reversing to avoid

objects which can hit or damage the rear bumper

by alerting with audible and visual information

from car infotainment system. Audible and visual

information is with respect to the proximity of the

object from the rear bumper.

Overview:

There are 4 ultrasonic sensors placed on the rear

bumper of the vehicle. Once Park Assist system is

activated, sensors will start detecting the proximity

of an obstacle approximately at 150cm from the

rear bumper and gives the proximity information to

Infotainment music system in the form of audio

and visual information.

NOTE



0-25cm obstacle detection performance is not

guaranteed due to ultrasonic sensor

technology limitation.



Values mentioned in the table are approximate

values only. Values may differ from actual

based on the vehicle and environmental

conditions.

Activation Procedure:

There are 3 ways to activate Park Assist

Reverse gear:

Park assist feature will automatically start

functioning once you engage the reverse gear.

Park assist Button (If equipped):

When you press the “Park Button” on the Fascia

switch, Park assist feature will start functioning.

Infotainment music system touch display:

In Infotainment system user interface, in the home

screen icon list, you can add Park Assist icon. By

using this icon you can enable park assist. Please

refer to infotainment module to add Park Assist

option on infotainment home screen.
