ELECTRICAL
218
FUSE
NO.
FUNCTION
FUSE
RATING
20
IGN KEY-IN/PEPS
5A/5A
21
PARK LAMP RH/POSITION
LAMP RH
5A
POWER SKT RR
15A

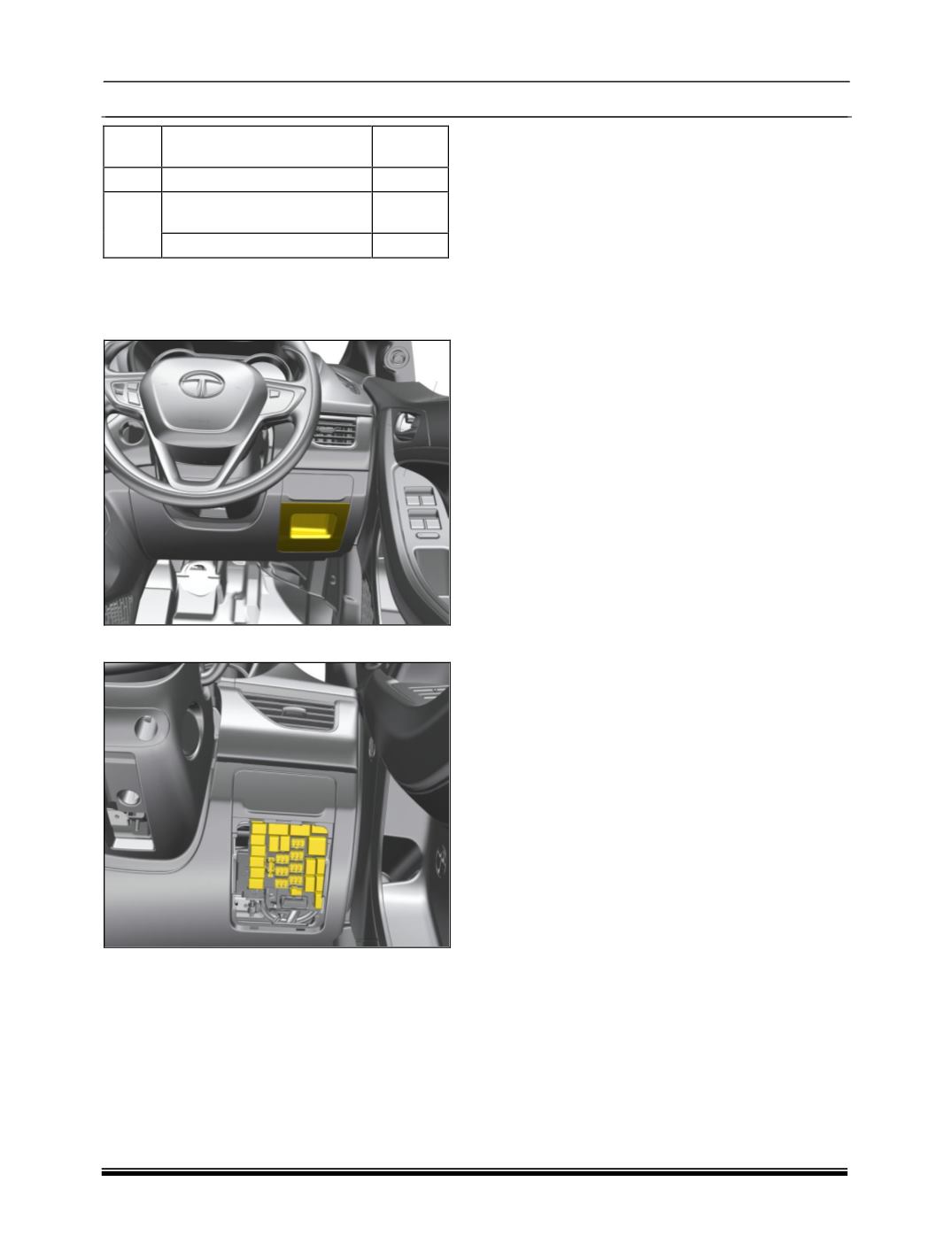

FUSE AND RELAY REPLACEMENT
1. Pry out the fuse box cover on the dashboard
panel.
2. Take out the fuse and relay from its base.
3. Check the Fuse/relay.
4. If faulty replace with same ratting of fuse and
relay.
REPLACEMENT PROCEDURE FOR RELAYS
1. Turn the ignition key to lock position.
2. Check each relay, if faulty replace with same
rating relay.
3. If replaced relay of same rating is not working
properly, there is probably a serious electrical
problem.
REPLACEMENT PROCEDURE FOR FUSES
1. Turn the ignition key to lock position.
2. Check each fuse and look for broken/open
controls link wire inside the fuse. If it is burnt,
replace it with one of the spare fuses of same
rating.
3. If replaced fuse of same rating burns out
then, there is probably a serious electrical
problem.
Note: Use designated fuses only
.
1.29.4 CIRCUIT SCHMATICS
Refer A3 Book
1.29.5 DTCs
Refer A3 Book
