NEXON

860 / 1131

ELECTRICAL
90

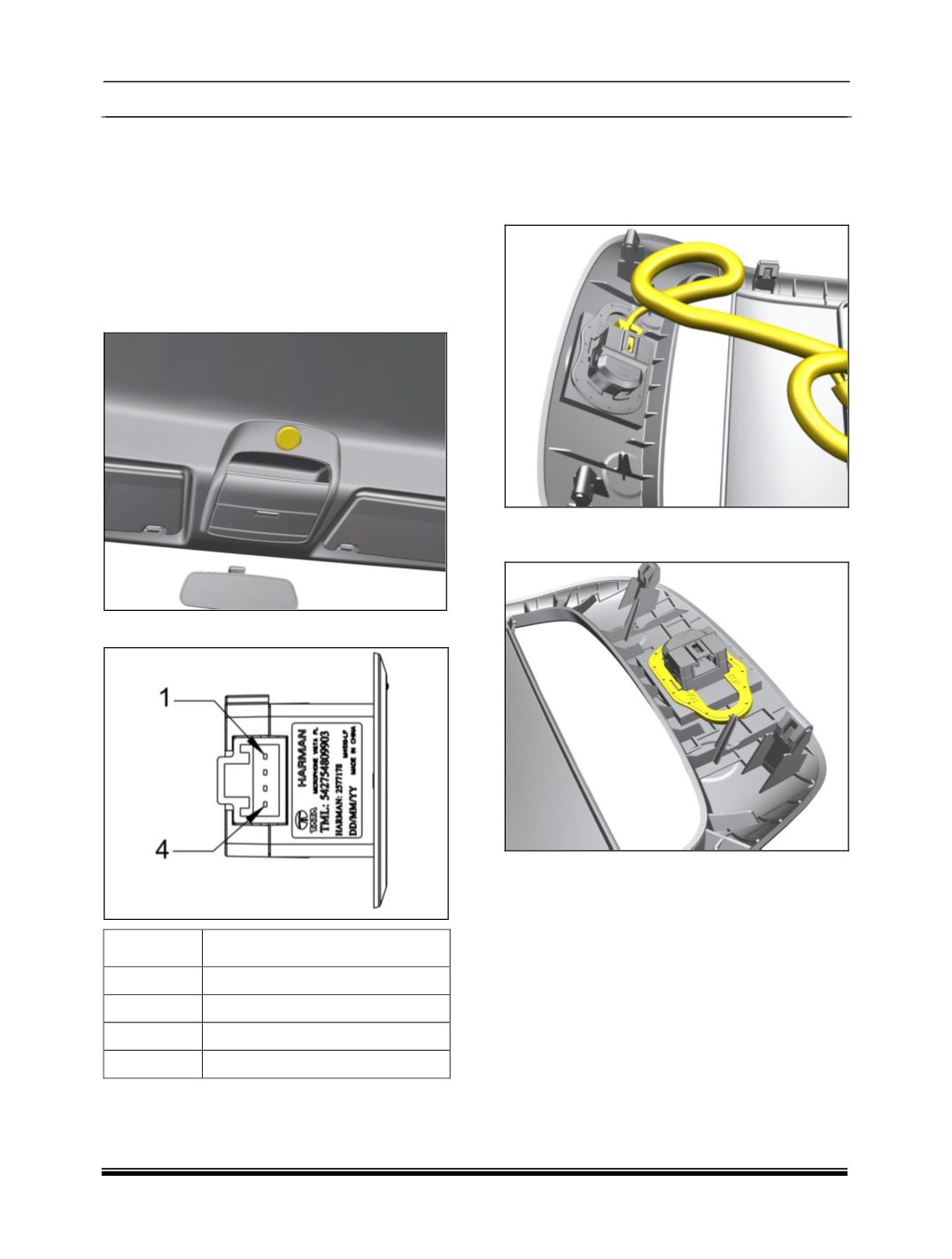

1.18.4 MICROPHONE
A microphone is an acoustic-to-electric transducer
or sensor that converts sound into an electrical
signal.
The microphone helps communicate calls through
the infotainment system. In some models provision
is given for fitment.
LOCATION
It is fitted on roof lamp bezel.
PINOUT DETAILS
PIN DESCRIPTION
1 MIC -
2 MIC +
3 NC
4 NC
REMOVAL
1. Remove the head lining assembly (Refer Body
section)
2. Disconnect the electrical connection.
3. Remove the locking ring and take out the
microphone.
