ELECTRICAL
88

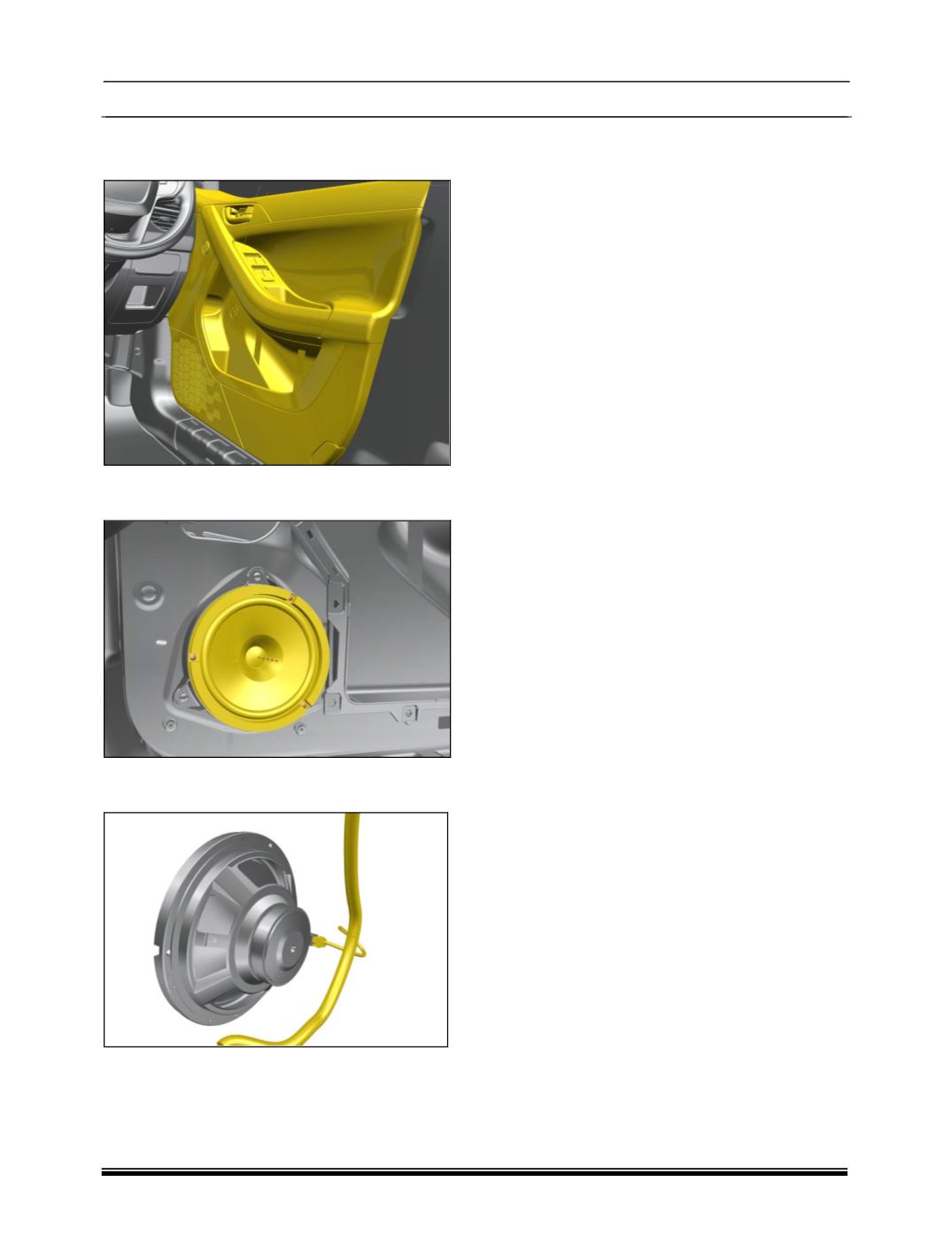

REMOVAL
1. Remove the door trim (
refer Body section
).
2. Loosen and remove the three mounting screws
of speaker.
3. Pull out the speaker. Disconnect the
connection and take out the speaker.
REFITMENT
1. Connect the electrical connection.
2. Fit the speaker on speaker spacer and tighten
the three mounting screws of speaker.
Tightening torque for screws – 0.3 Kgfm
3. Refit the door trim.
NOTE
Same procedure is applicable for other door
speakers. Front and rear door speakers should
not be interchanged.
