BODY

49

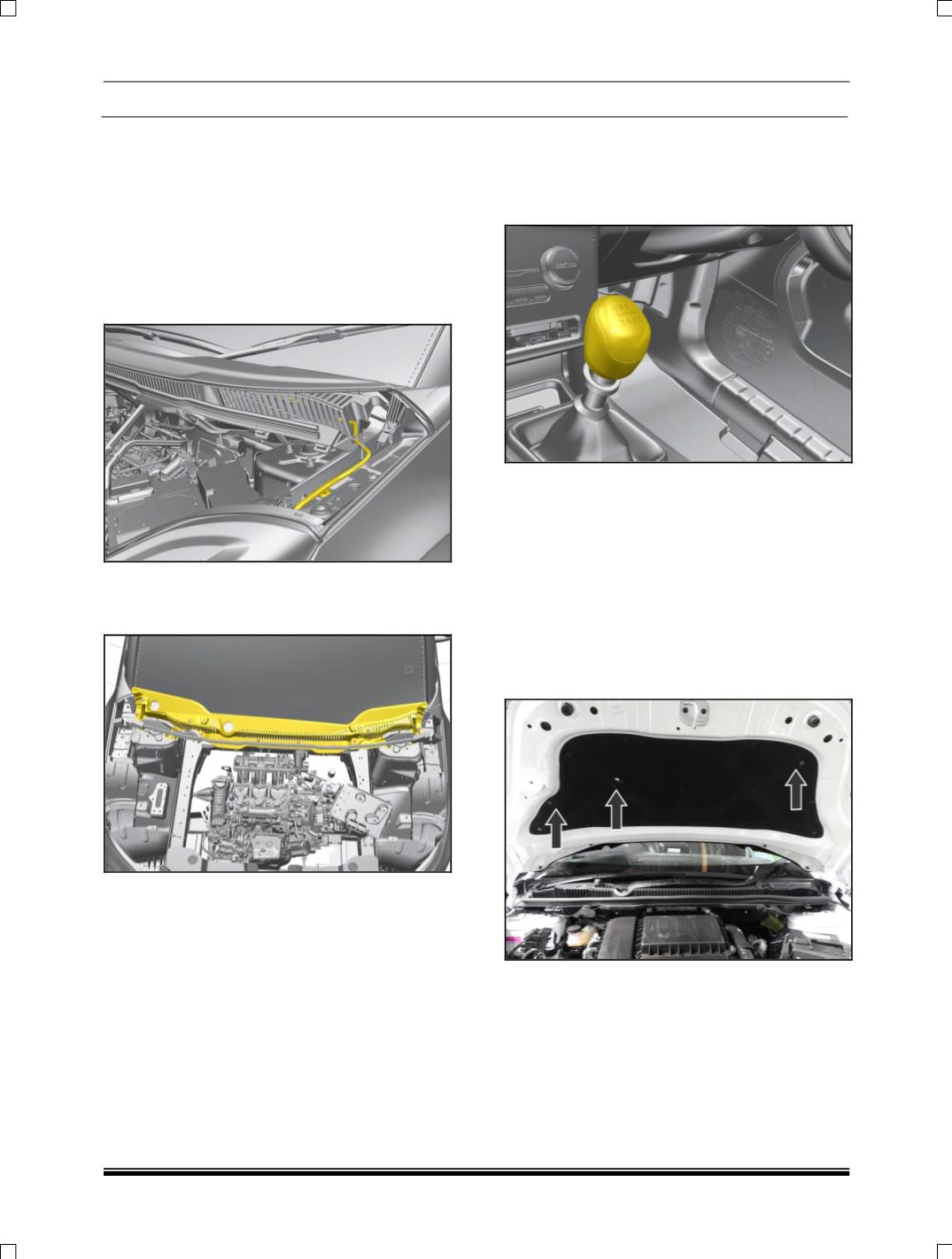

1.4.34. PLENUM COVER:

REMOVAL

1. Open the Bonnet.

2. Disconnect the negative terminal of battery.

3. Remove both front wiper arm and blade

assembly. (R

efer wiper arm and blade

assembly removal process

).

4. Disconnect washer tube

5. Pay out seven Grommet pin and pull out

plenum cover ,

FITMENT

For fitment follow reverse procedure of removal.

1.4.35. GEAR LEVER BOOT

REMOVAL

1. Pull out the rubber knob from GEAR SHIFT

UNIT

2. Remove the Lather boot from the gear shifter

lever.

FITMENT

For fitment follow reverse procedure of removal.

9.2.36 BONNET INSULATION

REMOVAL

1. Open the bonnet.

2. Pull out the insulation from the bonnet

assembly.

FITMENT

For fitment follow reverse procedure of removal.

NOTE

While pulling out the Bonnet insulation, care

should be taken such that clips do not get damage

if found damaged replace the same with the new

one
