BODY

45

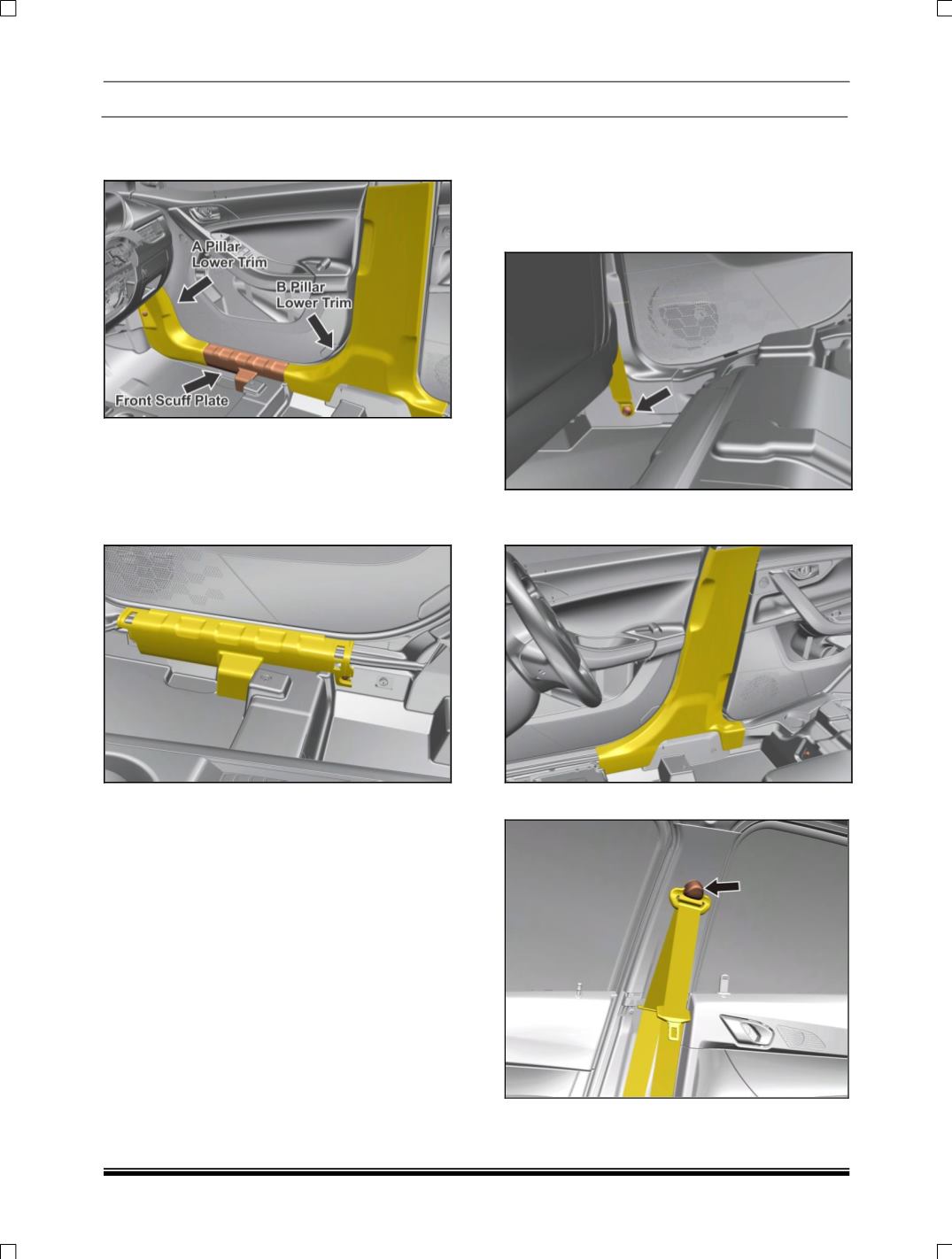

1.4.28. FRONT SCUFF PLATE

REMOVAL

1. Remove A pillar lower trim. (For procedure

refer A pillar removal process.)

2. Remove B pillar lower trim. (For procedure

refer B pillar removal process.)

3. Pull out front scuff plate from its location

FITMENT

For fitment follow reverse procedure of removal.

1.4.29. “B” PILLAR TRIMS:

REMOVAL

1. Remove door Beading.

2. Loosen and remove the lower mounting bolt of

seat belt.

3. Unlock B pillar lower trim from upper trim and

Pull out B pillar lower trim.

4. Remove front seat belt anchor mounting bolt.
