NEXON

SUSPENSION

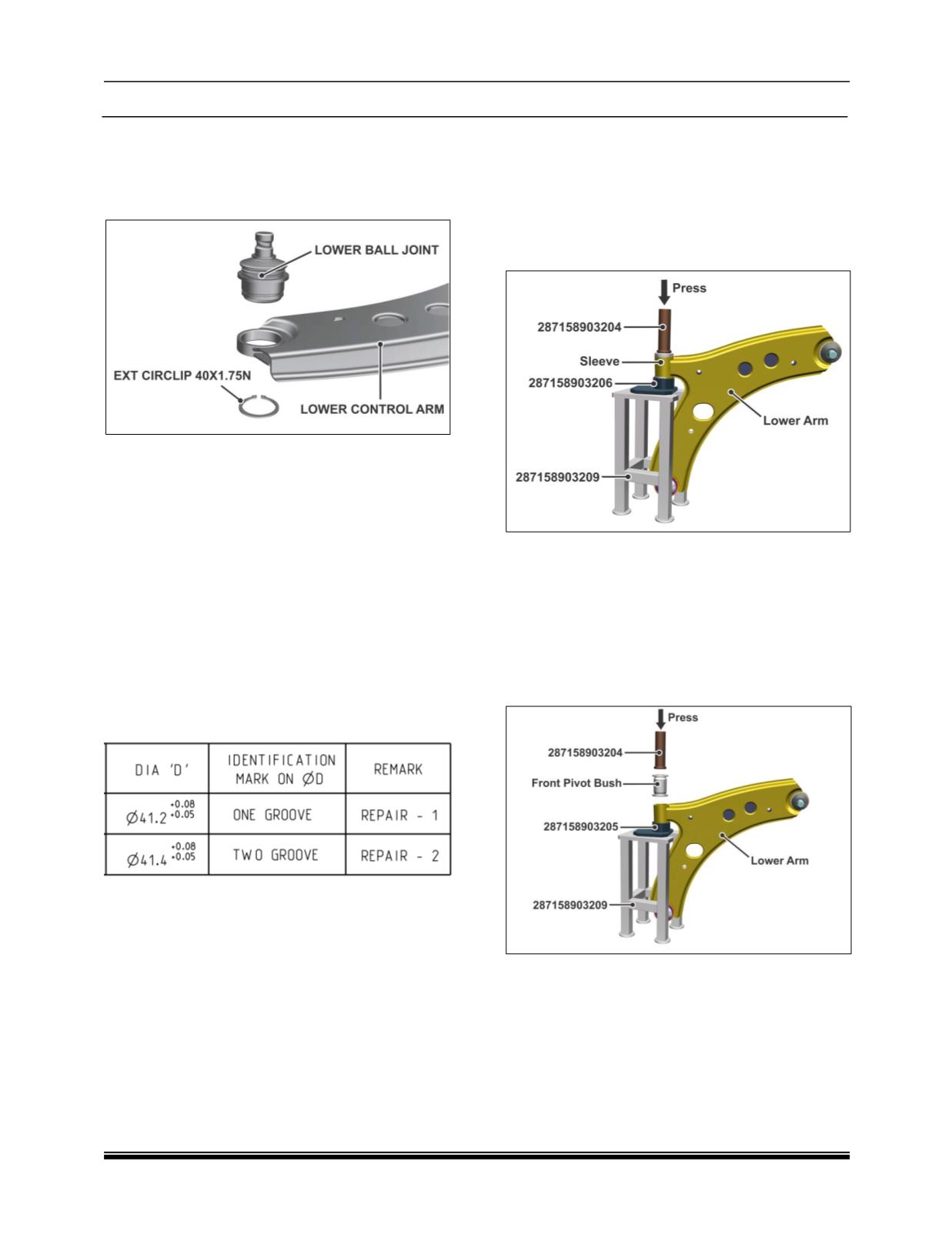

B) Fitting process-

a) Support (part no 5427 5890 32 01) to be

used for ball joint assembly on lower control

arm.

b) Ball joint to be fitted on hydraulic press.

c) Extra care to be taken during fitment to avoid

damage & boot puncher.

d) Apply pressing load using special tool (part

no 2779 5890 35 01) ball joint housing collar

until collar face butt with mating bush.

e) Circlip to be assembled after adequate

fitment of ball joint.

NOTE:

Ball joint assembly type repair-1 having bigger OD

to be used while replacement of ball joint first time

and repair 2 for second times.

Ball Joint Repair Sizes

1.9.4.3. REMOVAL OF LOWER ARM RUBBER

BUSHES

A. Lower arm front pivot bush

Removal:

1. Remove front pivot bush using special tools as

shown in below arrangement.

NOTE:

Apply soap and water to the bush, the

inner

surface of the tool and the bore of assembly

lower link before installation.

Installation:

1. Install pivot arm bush using special tools as

shown in below arrangement.

NOTE:

Load should be applied concentric to the

bush

axis to avoid improper fitting of bush into

the

housing.
