SUSPENSION

31

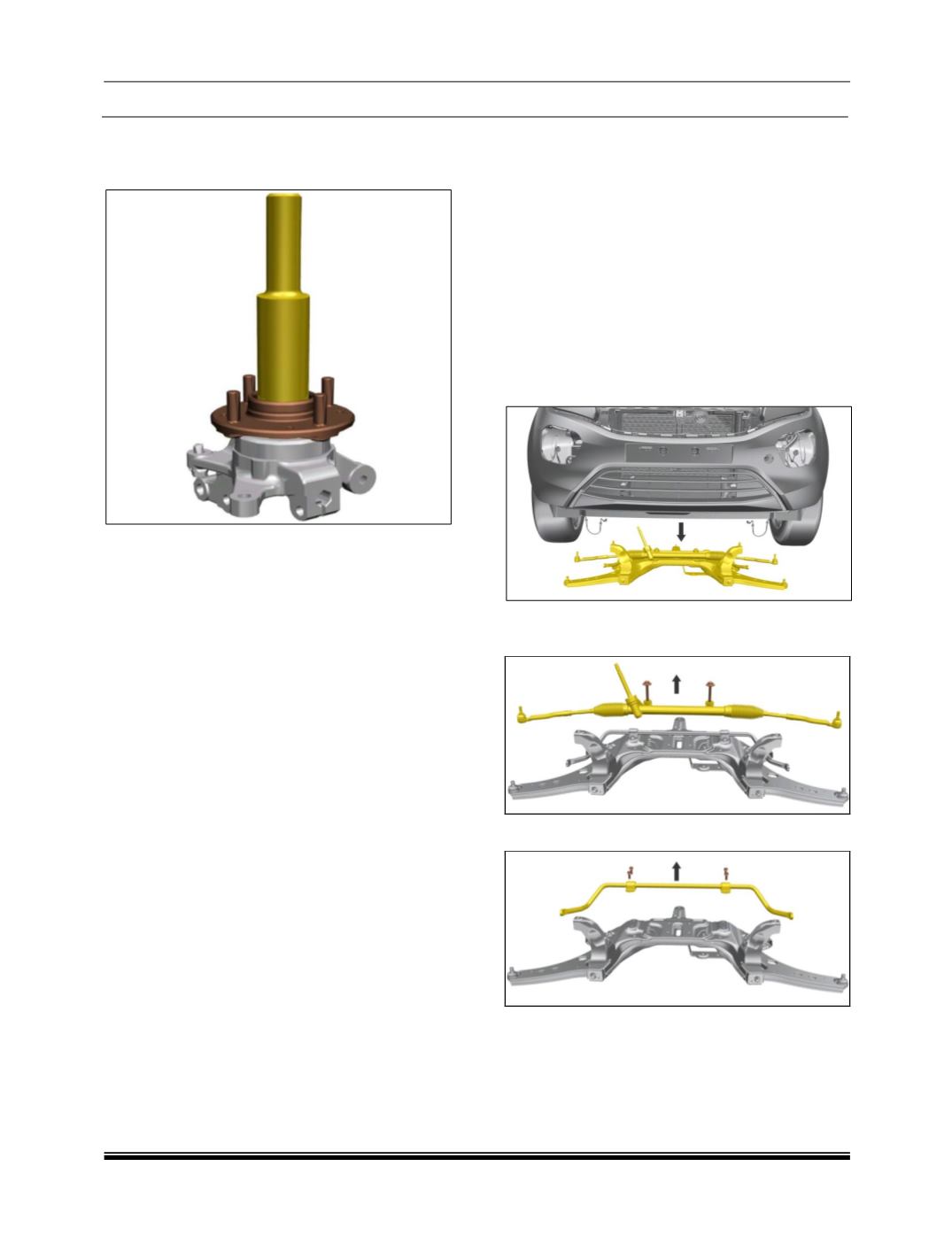

3. Place the knuckle assembly over the hub.

Using drift part No. 2576 5890 4401 press the

knuckle assembly on the hub.

1.9.4. REMOVAL OF SUBFRAME ASSEMBLY

1. Remove the front wheel and disconnect the

anti roll bar joint.

2. Disconnect the steering tie rod ball joint from

the knuckle.

3. Disconnect the EPAS. (steering group)

4. Remove the C mount of the engine from the

Subframe.

5. Remove Exhaust Front Pipe Assy

(for Petrol).

6. Loosen the Subframe bolts and lower the

assembly (Subframe, antiroll bar, steering

rack, lower arm).

7. Remove the steering rack assembly from

Subframe.

8. Remove the anti roll bar from Subframe.
