1.5L REVOTORQ ENGINE
172

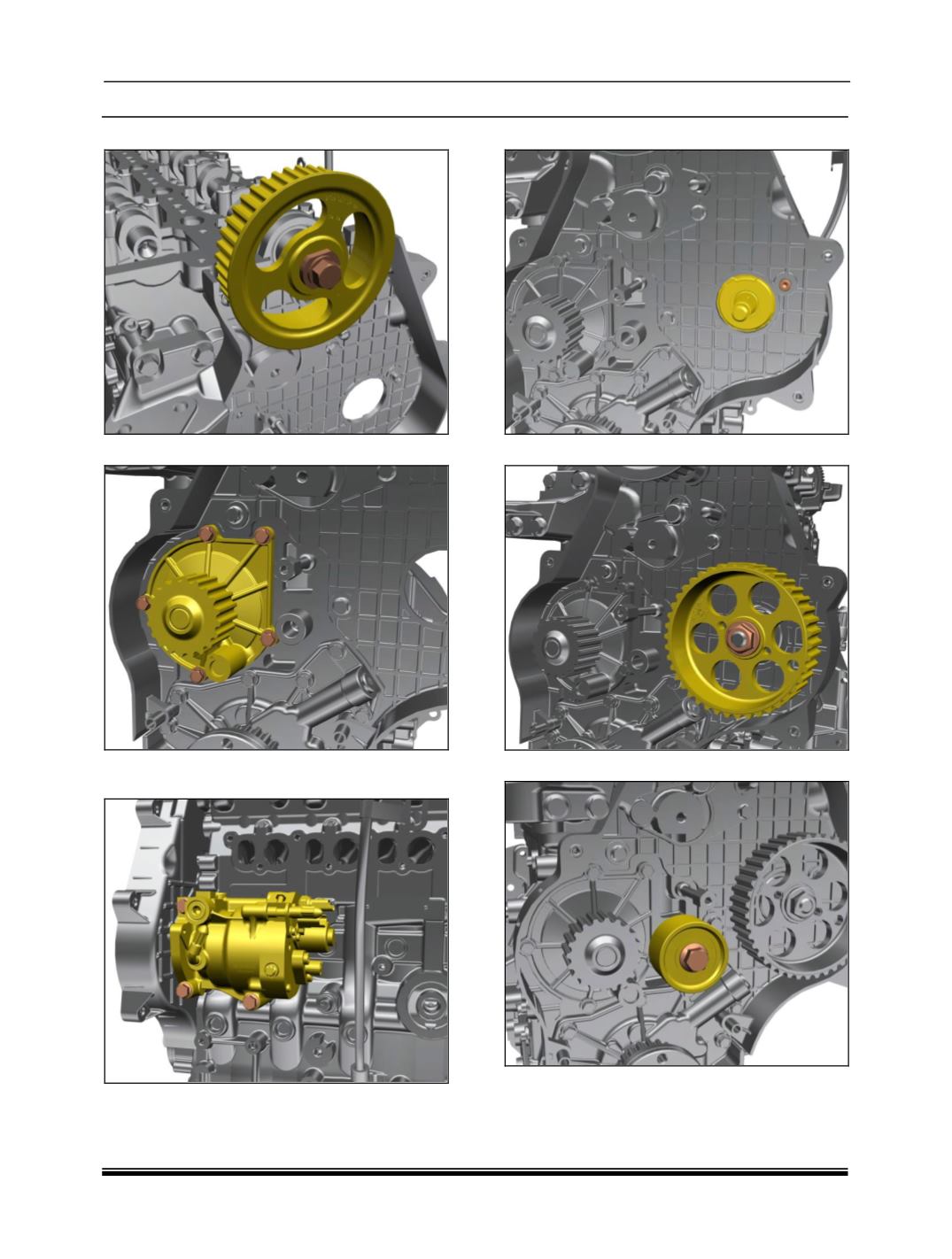

10. Install the timing gear camshaft pulley.
11. Install the water pump assembly.
12. Install the H.P. pump assembly using the
mounting bolts.
13. Fit the front mounting bolt of the H.P. pump.
14. Install the timing gear on the H.P. pump.
15. Mount the belt idler assembly.
