1.5L REVOTORQ ENGINE

171

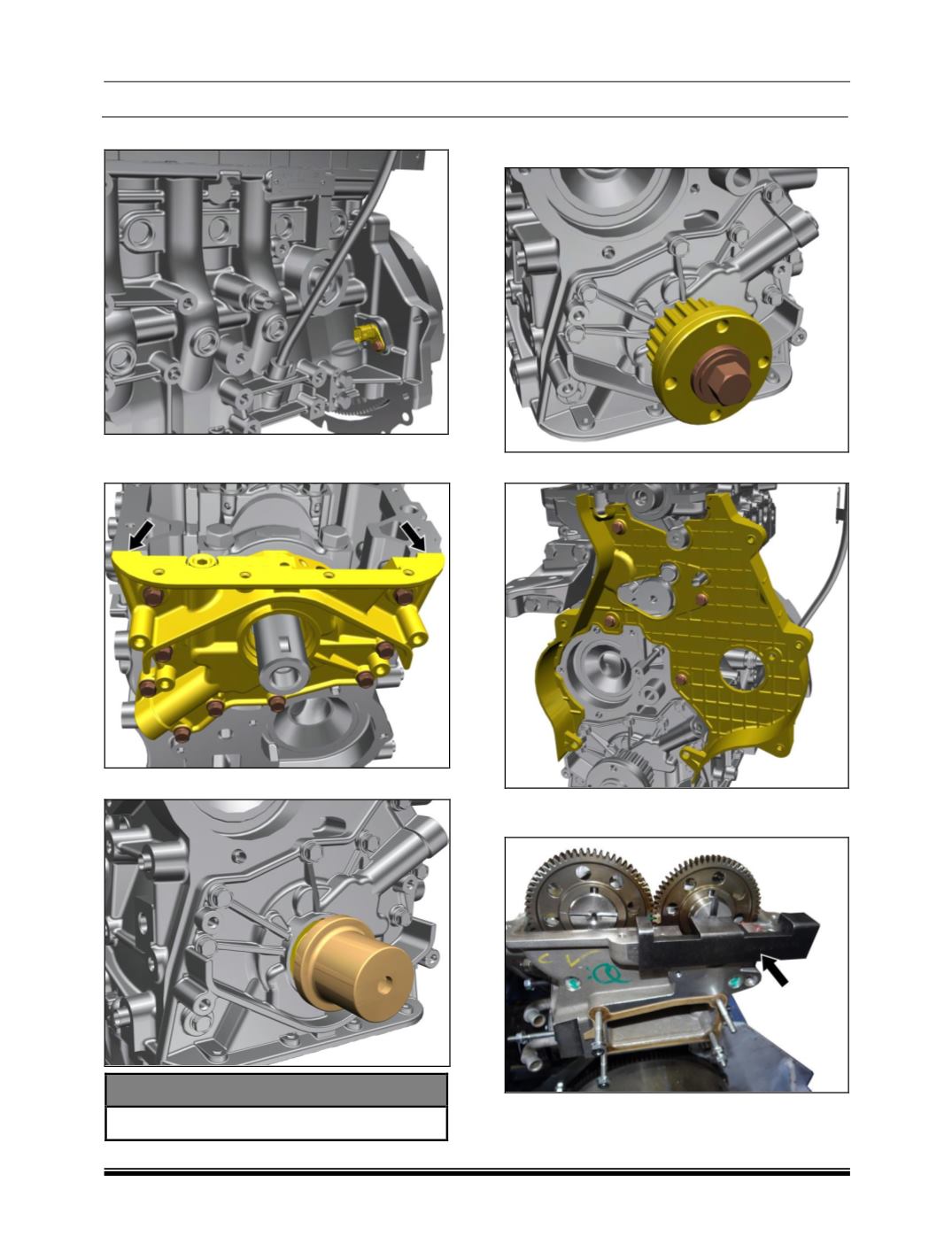

4. Install the crank position sensor.

5. Install gasket and apply sealant before

installing the oil pump assembly.

6. Install the crankshaft oil seal.

SPECIAL TOOL



Drift (Oil seal in Pump) -:2702 5890 18 01

7. Using the mounting bolt install the crankshaft

gear by applying specified torque.

8. Install the rear timing cover.

9. Lock the exhaust camshaft rotation using the

special tool.
