1.5L REVOTORQ ENGINE
134

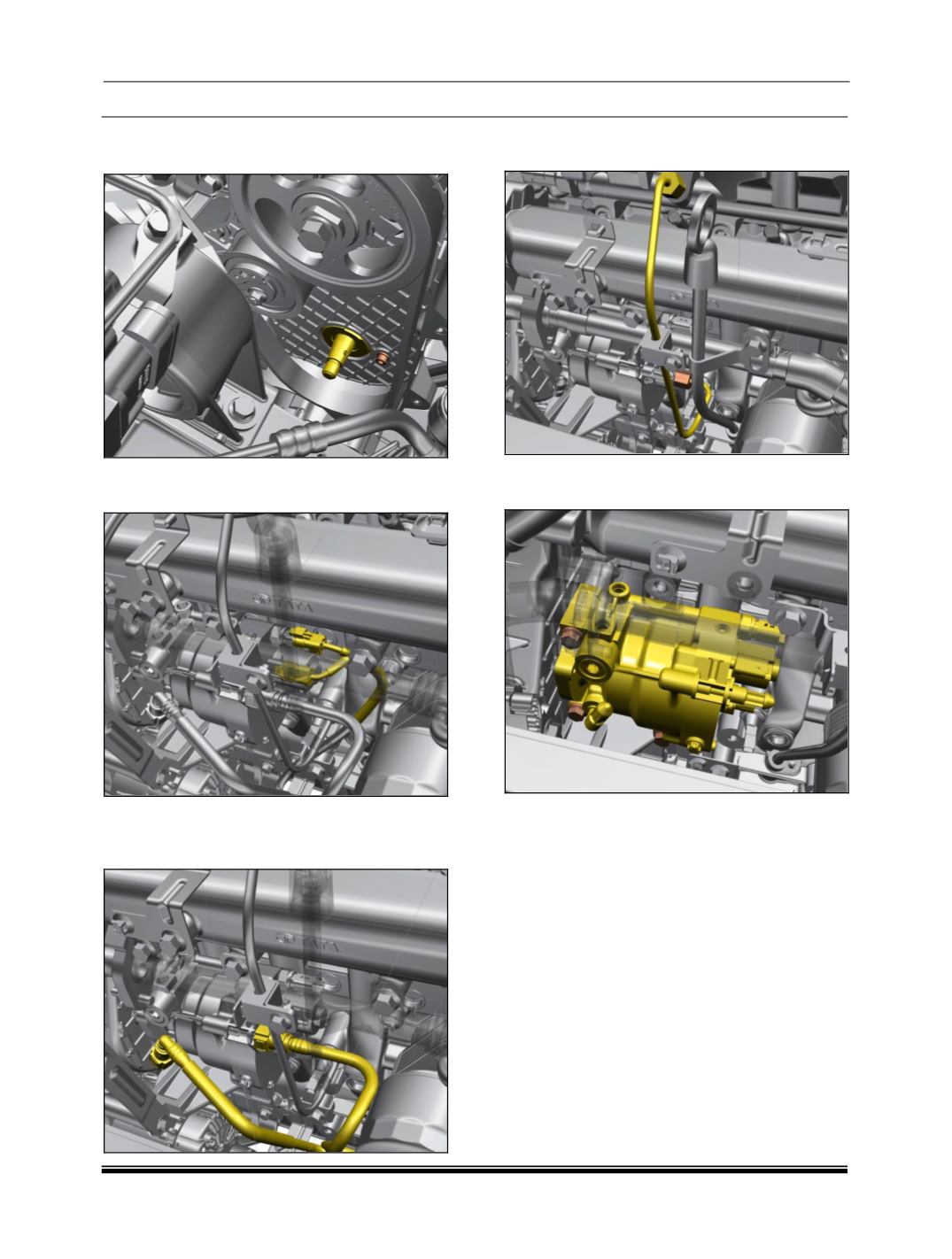

13.Remove the front mounting bolt of the H.P.
pump.
14.Remove all the electrical connections of the
HP pump.
15.Disconnect the fuel line connection of the HP
pump. Close the open fuel lines with suitable
plug to avoid spillage of fuel.
16.Disconnect the fuel line connection between
fuel rail and HP pump.
17.Loosen and remove the mounting bolts and
take out the H.P. pump assembly.
REFITMENT
Follow the reverse order of removal procedure.
