1.5L REVOTORQ ENGINE
108

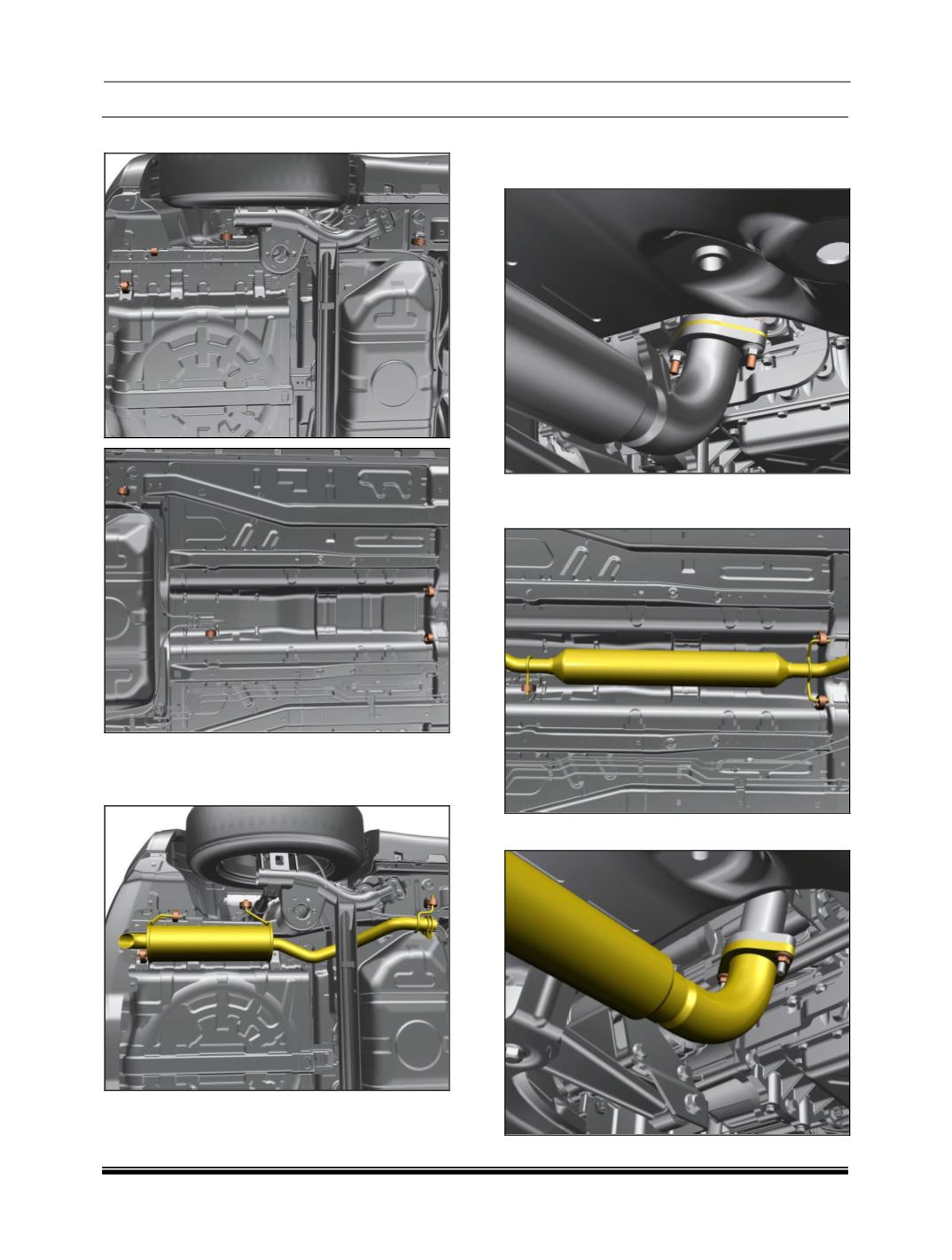

5. Mount all rubber hangers on BIW rod hangers.
6. Insert exhaust rear assy. In to BIW rod
hangers with rubber hangers.(ensure proper
orientation of rear assy. rubber hangers).
7. Match exhaust front pipe flange and exhaust
middle pipe flange holes with gasket in
between and insert in stud.
8. Mount exhaust middle pipe assy. into BIW
hangers with rubber hanger.
9. Hand tighten the nut of middle pipe flange.
