1.2L REVOTRON ENGINE
176

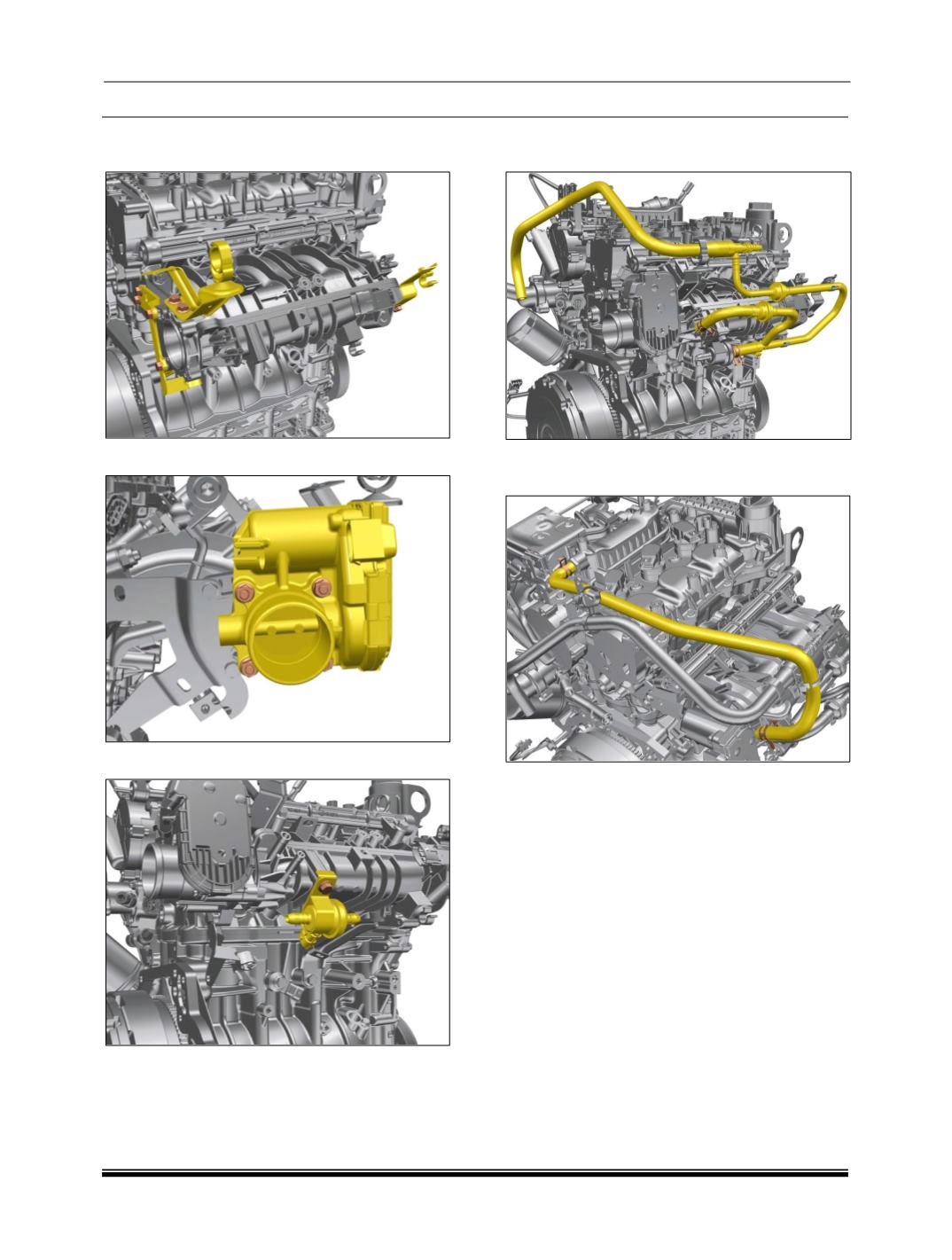

7. Install all the support brackets on the intake
manifold.
8. Install the electronic throttle body.
9. Fit the purge valve.
10. Connect all the hoses between purge valve
and the intake manifold.
11. Connect the hose between cylinder head
cover to intake manifold.
12. Remove the engine assembly from the bench
suitably.
