1.2L REVOTRON ENGINE

174

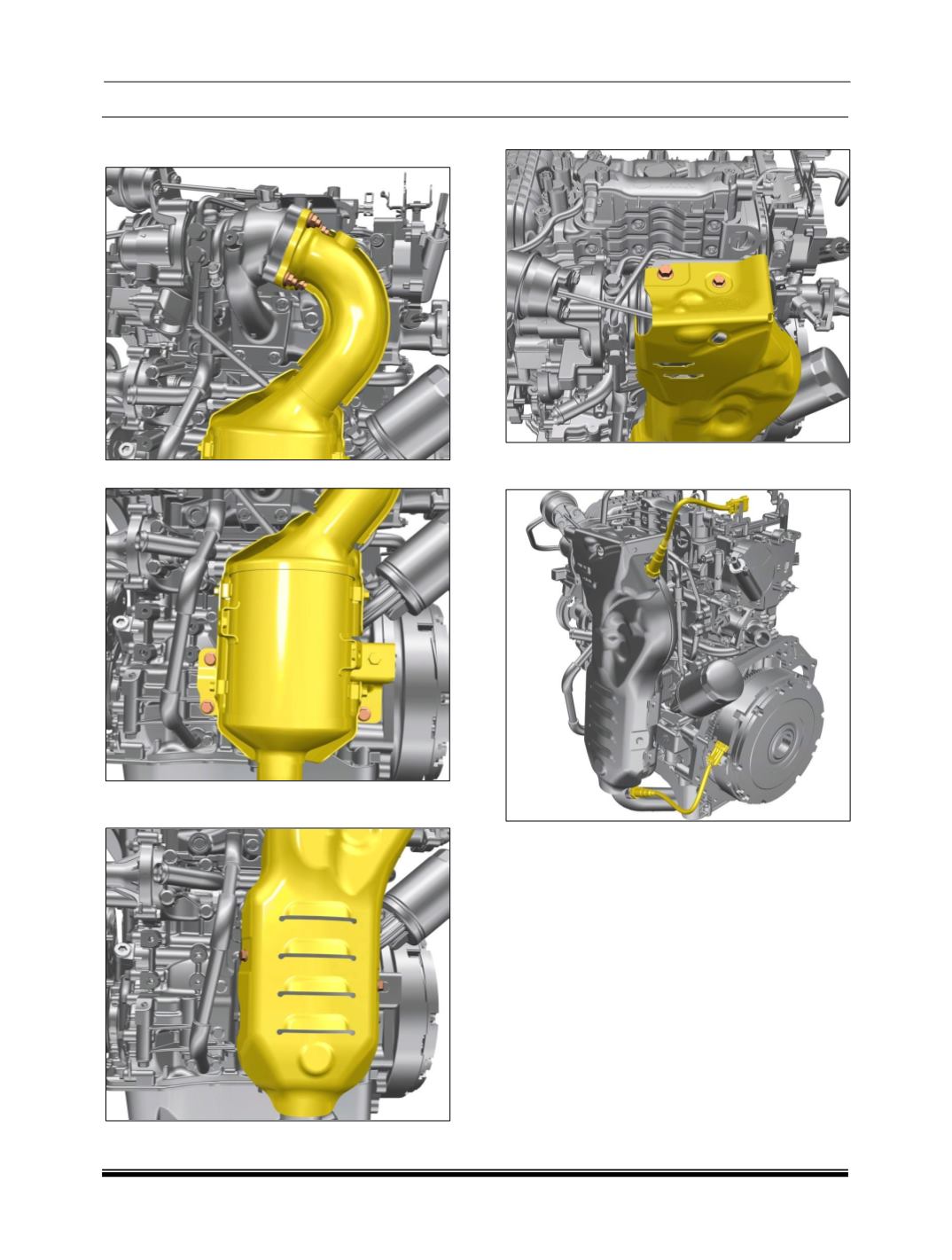

11.Locate the CCC to the turbocharger outlet then

mount the upper mounting bolts of the CCC.

12.Tighten the lower mounting bolts of the CCC.

13.Tighten the heat shield lower mounting bolts

install remove the heat shield.

14.Tighten the heat shield upper mounting bolts.

15.Install the Lambda sensor upper and lower on

CCC.
