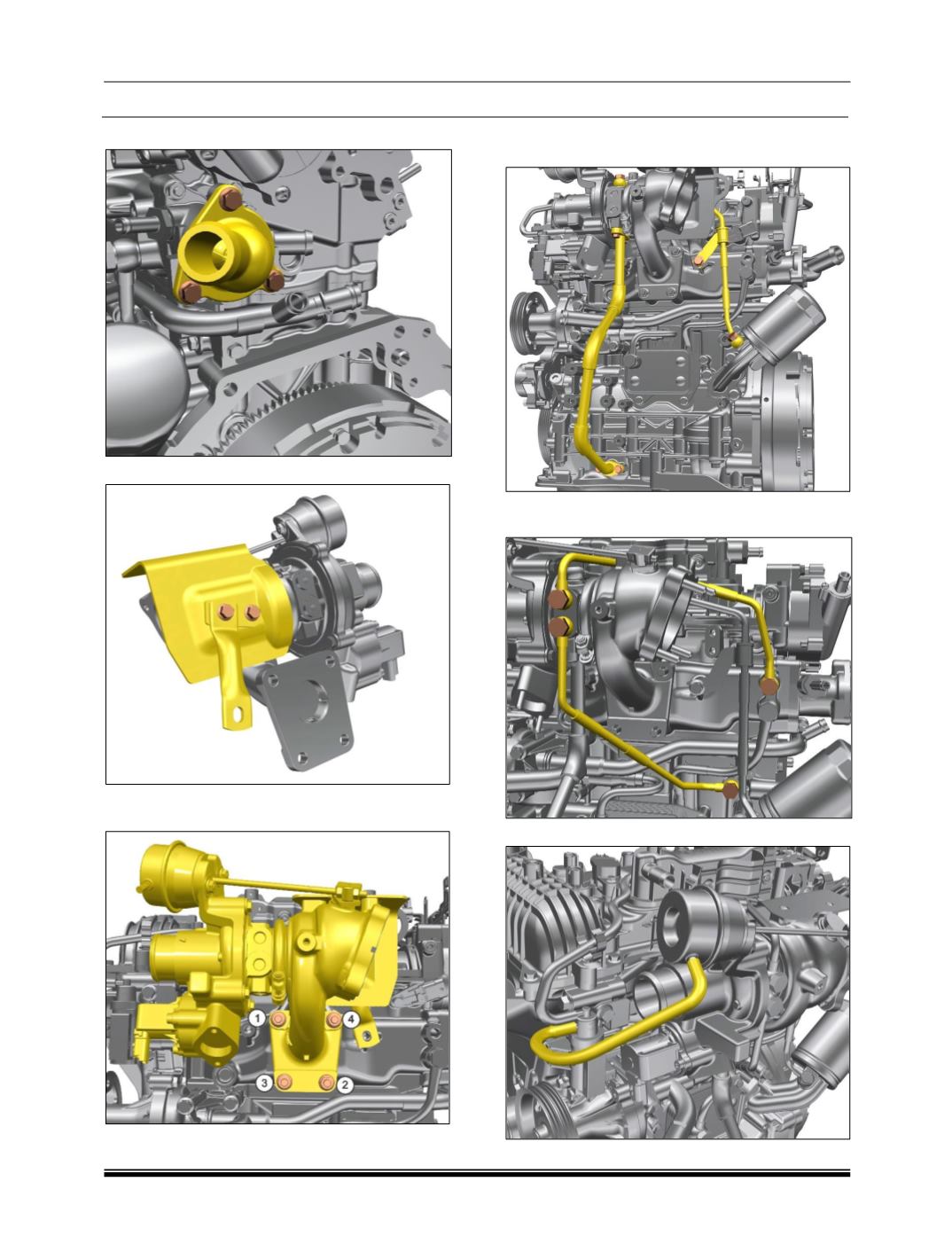

5. Fit the thermostat cover over the housing.

6. Fit the heat shield on the turbocharger.

7. Install the turbocharger assembly as sequence

shown.

8. Connect and install the turbocharger oil intake

and return lines.

9. Connect and install the turbocharger coolant

intake and return lines.

10.Fit the hose connecting turbocharger to EVRV.
