1.2L REVOTRON ENGINE
137

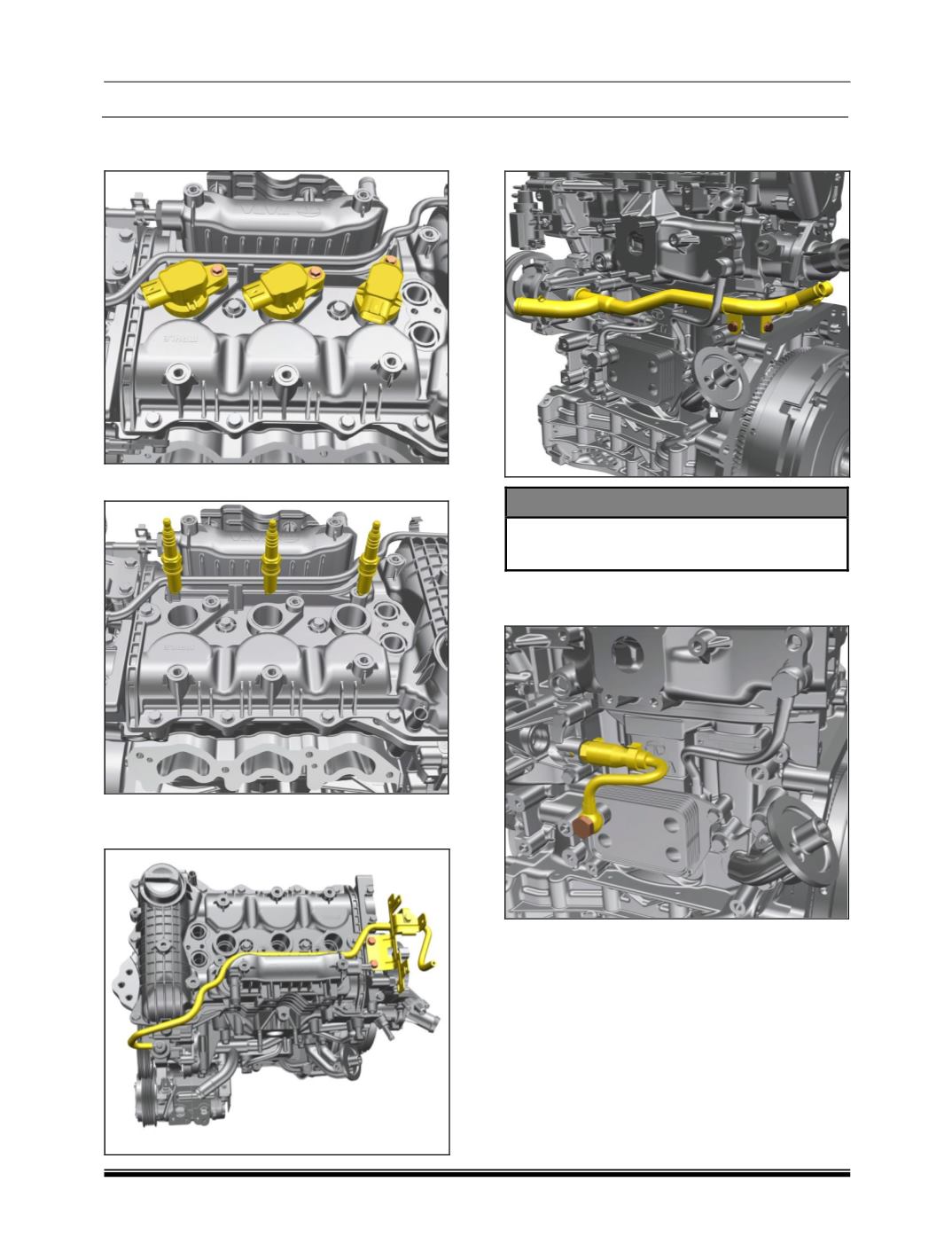

4. Remove ignition coil from head cover by
removing fasteners.
5. Remove the spark plugs.
6. Remove the EVRV hose and its support
bracket mounted on the head cover.
7. Remove the water bypass tube by removing 2
bolts and pulling out by special tool.
SPECIAL TOOL
Tool-Water pipe installation
–
5424 5890 20 02
8. Disconnect and remove the hose connecting
oil cooler inlet and water pump.
