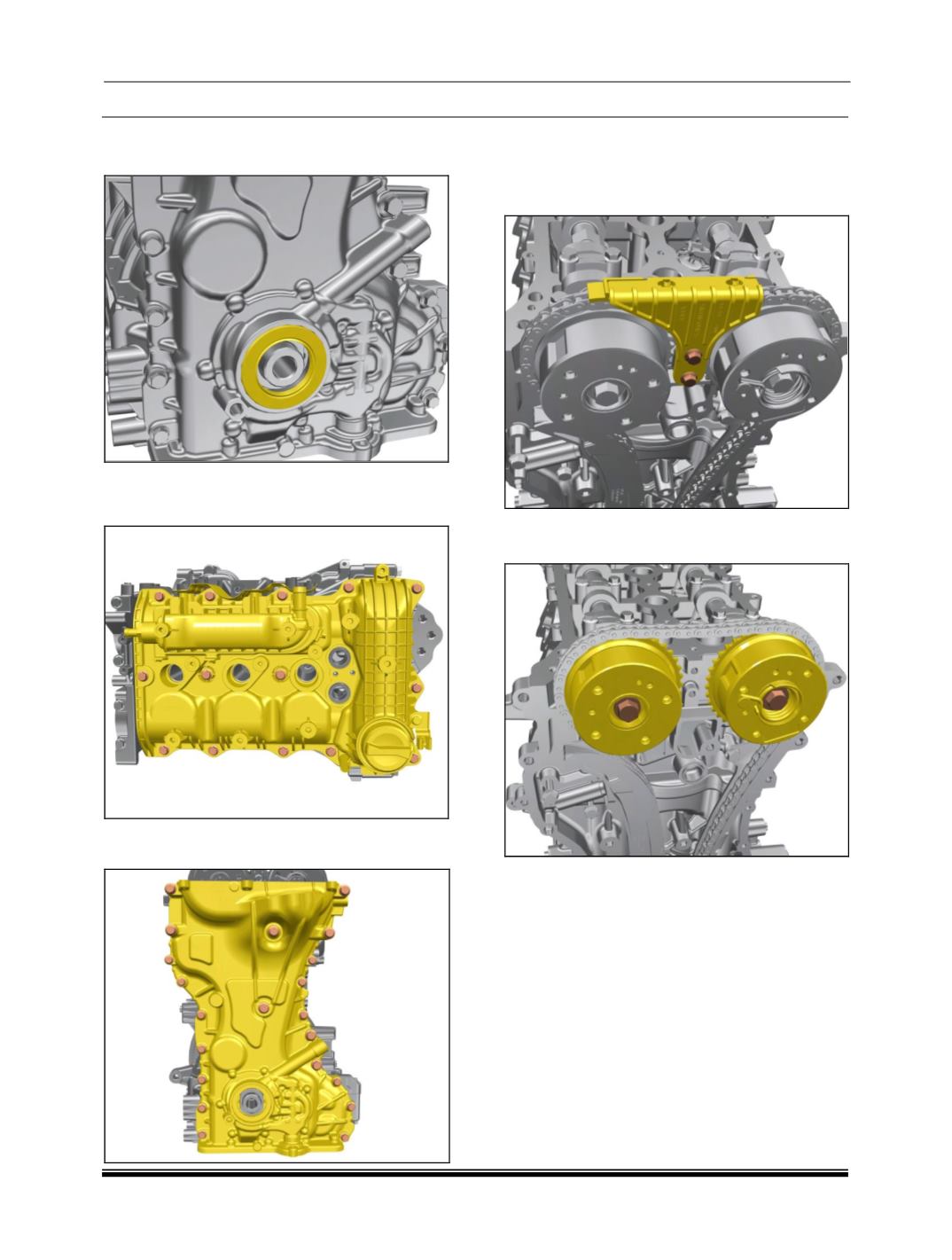

VI. Removal of Timing Chain
1. Remove the crankshaft front oil seal.
2. Remove the Cylinder Head Cover from the
engine & carefully place the rubber gasket
apart.
3. Remove the oil pump cover by removing its
mounting fasteners.
4. Keep the piston at top dead center by rotating
crankshaft.
5. Lock the flywheel
6. Remove the camshaft carrier assembly.
7. Soft loosen the VCT and exhaust camshaft
sprocket before removal of timing chain
