ELECTRICAL
64

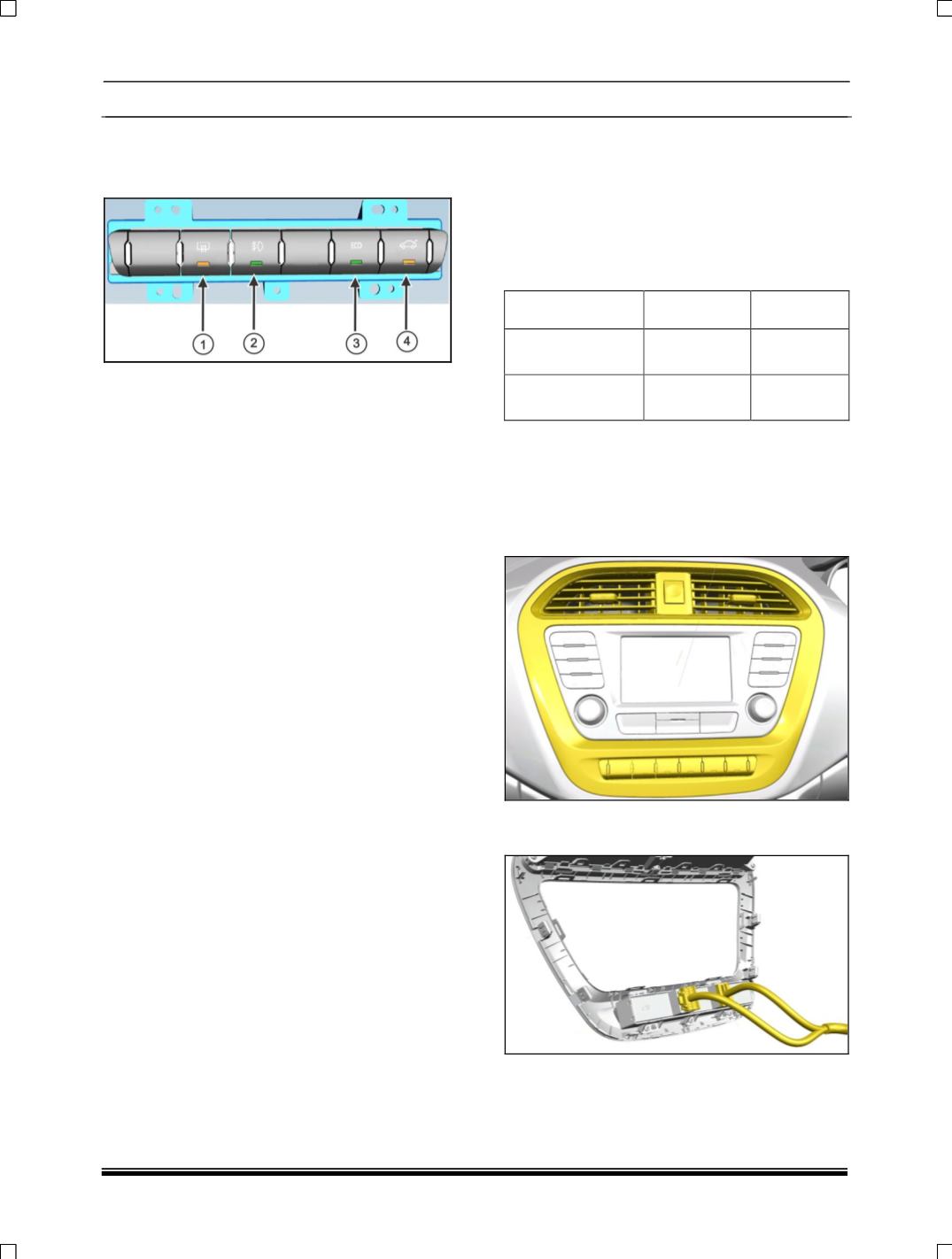

15. FASCIA SWITCHES
Heated rear window, fog lamps and drive mode
switches are located on fascia switches
1) HEATED REAR WINDOW
2) FRONT FOG LAMP
3) ECO DRIVE MODE SWITCH
4).TAIL GATE FUNCTION
1. HEATED REAR WINDOW SWITCH:
The heated rear window is controlled by a fascia
switch. The heated rear window is only active in
Vehicle Power State IGNITION or RUN.
If Heated Rear Window is cancelled, the heated
rear window relay output is immediately switched
off and, where necessary, the heated rear window
timer is reset.
2. FRONT FOG LAMPS (IF FITTED):
Front Fog Lamps are provided on front bumper to
provide improve divisibility in adverse weather
conditions to avoid accidents when visibility is
poor.
The front fog lamps can be switched ‘ON’ with
ignition and parking lamp ‘ON’ and can remain on
till the parking lamp is switched ‘OFF’.
3. ECO DRIVE MODE SWITCH
Two drive modes are provided. These modes can
be used to adjust certain characteristics of engine
& vehicle performance.
Drive mode selection switches are provided on
dashboard fascia to
activate the programs.
Selected drive mode will be displayed on
Instrument cluster telltale.
4. TAILGATE SWITCH (IF FITTED):
To open the tail gate, press the switch lo-cated on
fascia switch It can also be opened by using door
key. The lock is located on the tailgate.
For closing, pull the tail gate down and close it
with a slight swing.
NOTE:
’CITY’ is the default mode and will not be
displayed.
Select the desired mode as per driving
feasibility.
Drive mode switches are provided on the
dashboard fascia to activate the desired Mode.
SwitchOperation
Current Mode NewMode
ECO switch is
Pressed
CITY
ECO
ECO switch is
Pressed
ECO
CITY
NOTE:
CITY is the default mode. If both switches pressed
simultaneously last mode is retained.
FASCIASWITCH PANEL REMOVAL
1. Carefully pry out fascia switch cover assembly.
2. Disconnect electrical connection from the
fascia switch assembly.
