ELECTRICAL

62

c)

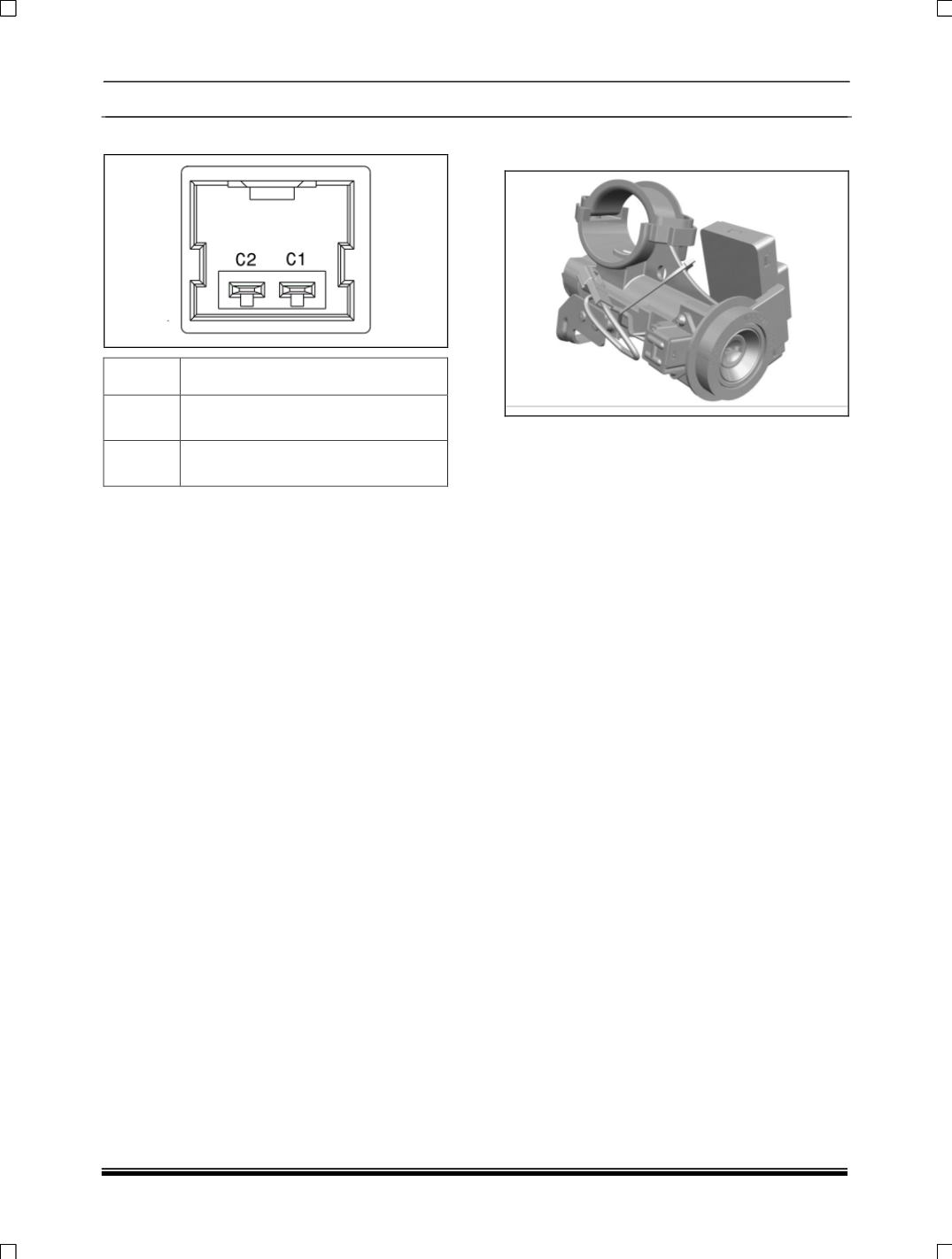

Horn connector

PIN

DETAIL

C1

To steering wheel for horn

(+ve)

C2

To steering wheel for horn

(-ve)

14. STEERING LOCK CUM IGNITION

SWITCH

FUNCTION

To lock the steering wheel

To start & stop the engine

To switch on accessories and other electrical

system

LOCATION

It is fitted on steering column below the steering

wheel and combi switch.

REMOVAL & REFITMENT OF STEERING

LOCK CUM IGNITION SWITCH (SLCIS):

REMOVAL:

1. Disconnect battery negative terminal.

2. Remove steering nacelle. Refer “Removal &

refitment of steering nacelle" from steering

section.

3. Remove steering wheel. Refer “Removal &

refitment of steering wheel" from steering

section.

4. Remove combi switch. Refer “Removal &

Refitment of combi switch."
