TIAGOR

DRIVETRAIN-TA65 Star

10. Fix sensing wheel with recess inside using

drift part No. 2654 5890 3507.

11. Press taper roller bearings using drift part no.

2702 5890 2608 on either side of differential

housing.

R. ASSEMBLIES OF TRANSAXLE:

1. Fit clutch release fork shaft. Fit plastic bushes.

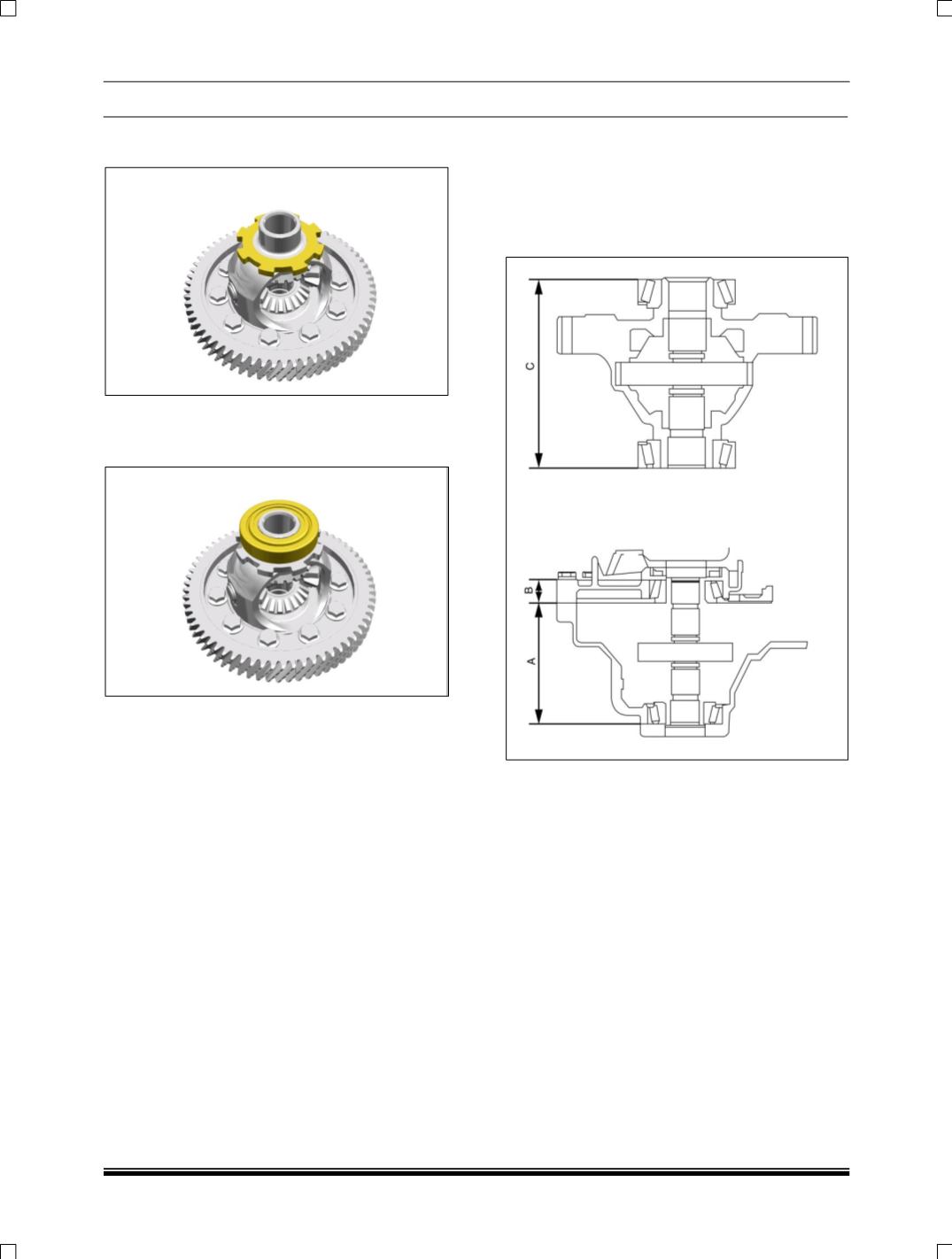

Fit lever on clutch release shaft and lock it by

grooved pin.

2. Differential bearing preload adjustment

procedure.



Measure dimension ‘A’ (Distance between top

mating surface of transaxle front half and the

outer differential bearing seat) say 103.7mm in

housing and dimension ‘B’ (Distance between

mating surface of transaxle rear half and the

inner differential bearing seat) say 19mm in

housing for bore 65.088 mm dia.



Place outer races on both differential side

bearings and measure distance between outer

surfaces of these outer races (dimension ‘C’).



Select shim thickness = (A+B) - C to (A+B) -

C+ 0.05 and install the shims against front half

taper roller bearing outer race.

3. Fix the outer race of differential bearing in the

housing (front half) by using drift part no. 2654
