TOD
10
AUTO TO 4x2 MODE SHIFT SEQUENCE:
AUTO to 4x2 mode shift is initiated when a request for 4x2 mode is received, and the transfer case is in Auto
mode. To shift to 4x2 mode the TOD system must ramp the TOD clutch to off desynchronizing the front axle
assembly and then turn off the front axle disconnect.

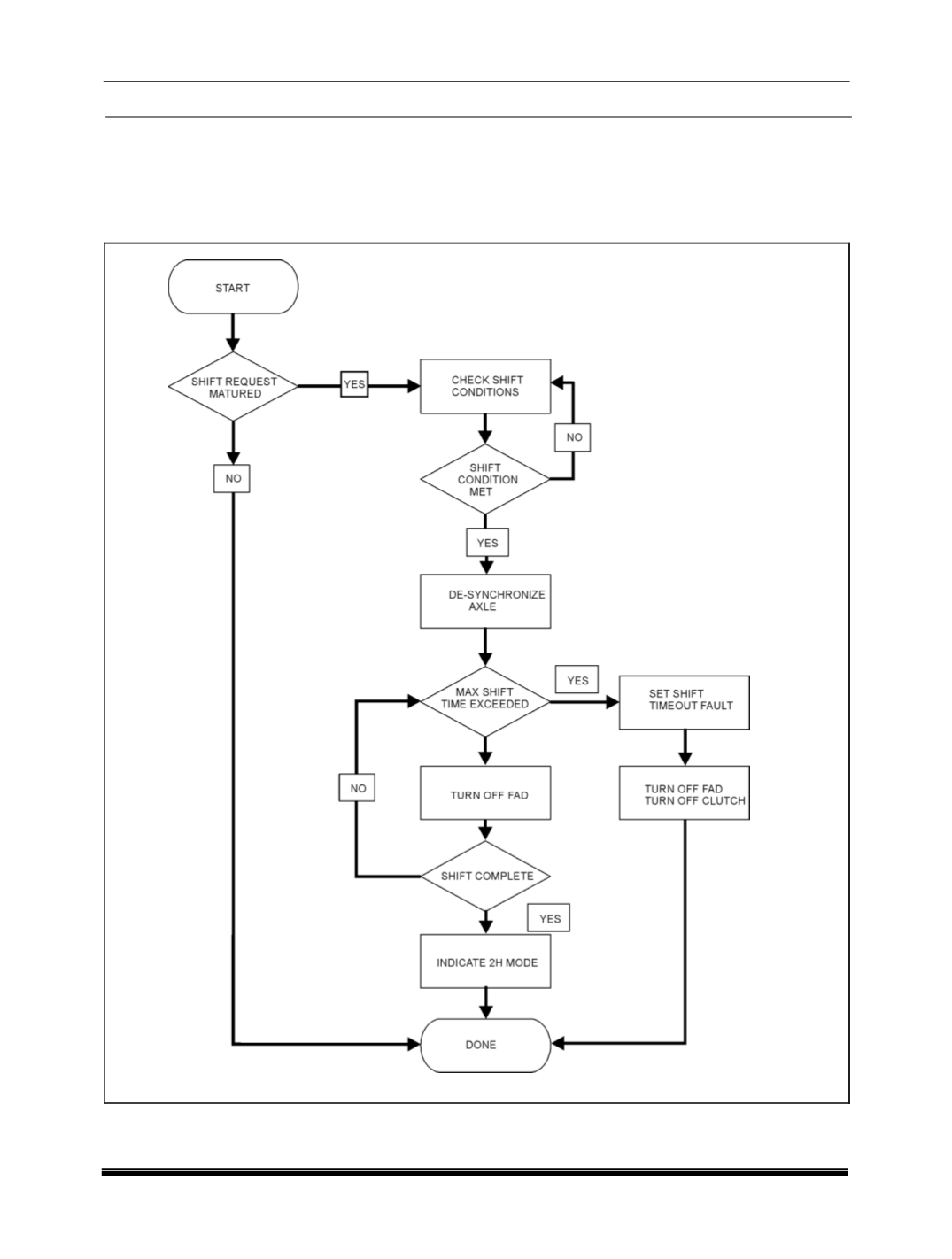

AUTO TO 4x2 SHIFT FLOW CHART
