GEAR BOX 6450
22
B.
For 4X4
remove the lock nut by using tool
(Part Number: 5403 5890 26 13).
12. Remove the coupling flange from the Main
shaft.
13. Remove the pivot pins on both side from the
gearbox housing.
14. Loosen and remove nuts (13 Nos.) of rear
housing.

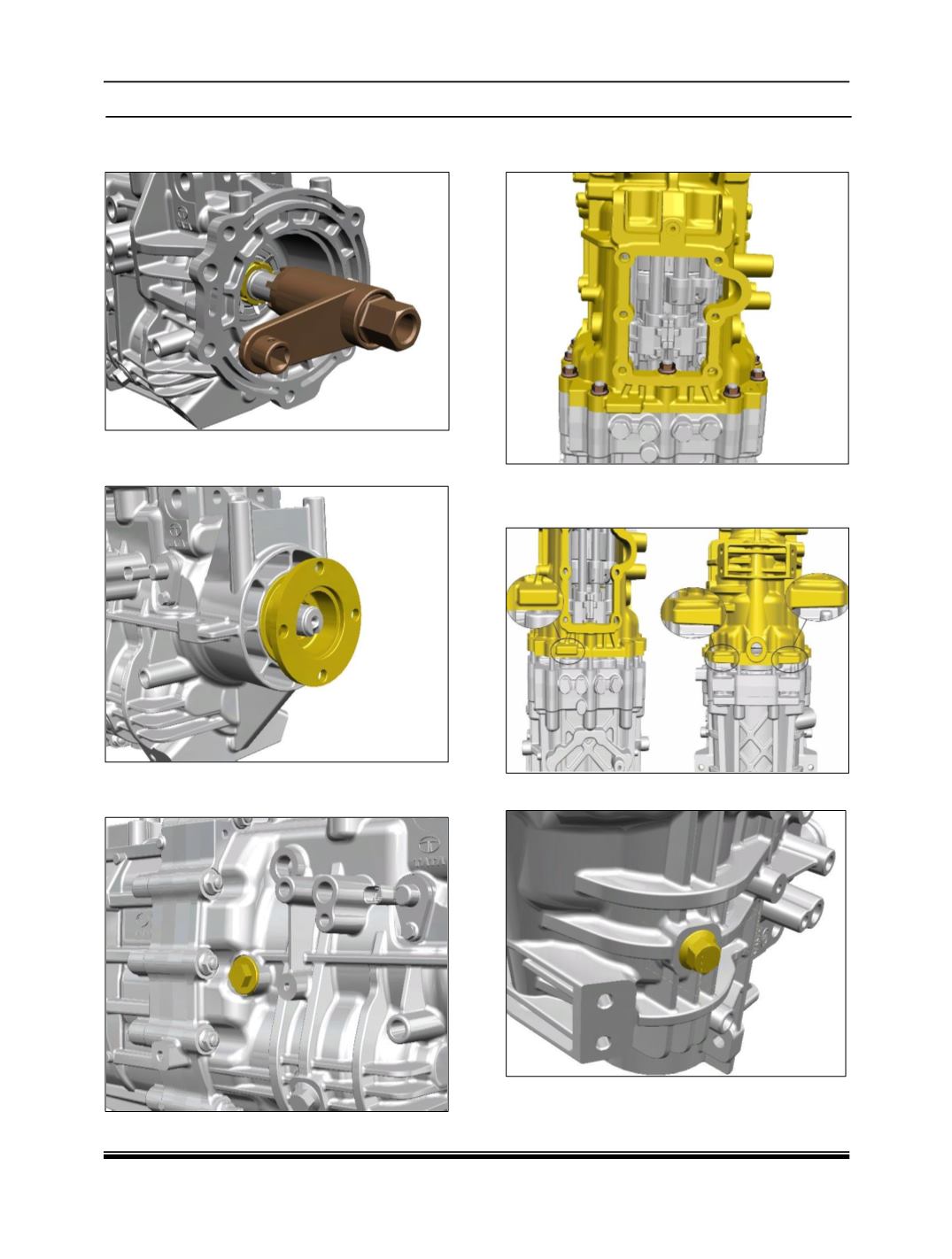

15. Remove rear housing of gearbox by using
proper tools at shown location in below
images.
16. Remove the reverse idler bolt.
