C. PRECAUTION FOR ASSEMBLY OF SAC

1. Use only paired Clutch Disc & SAC set for

assembly

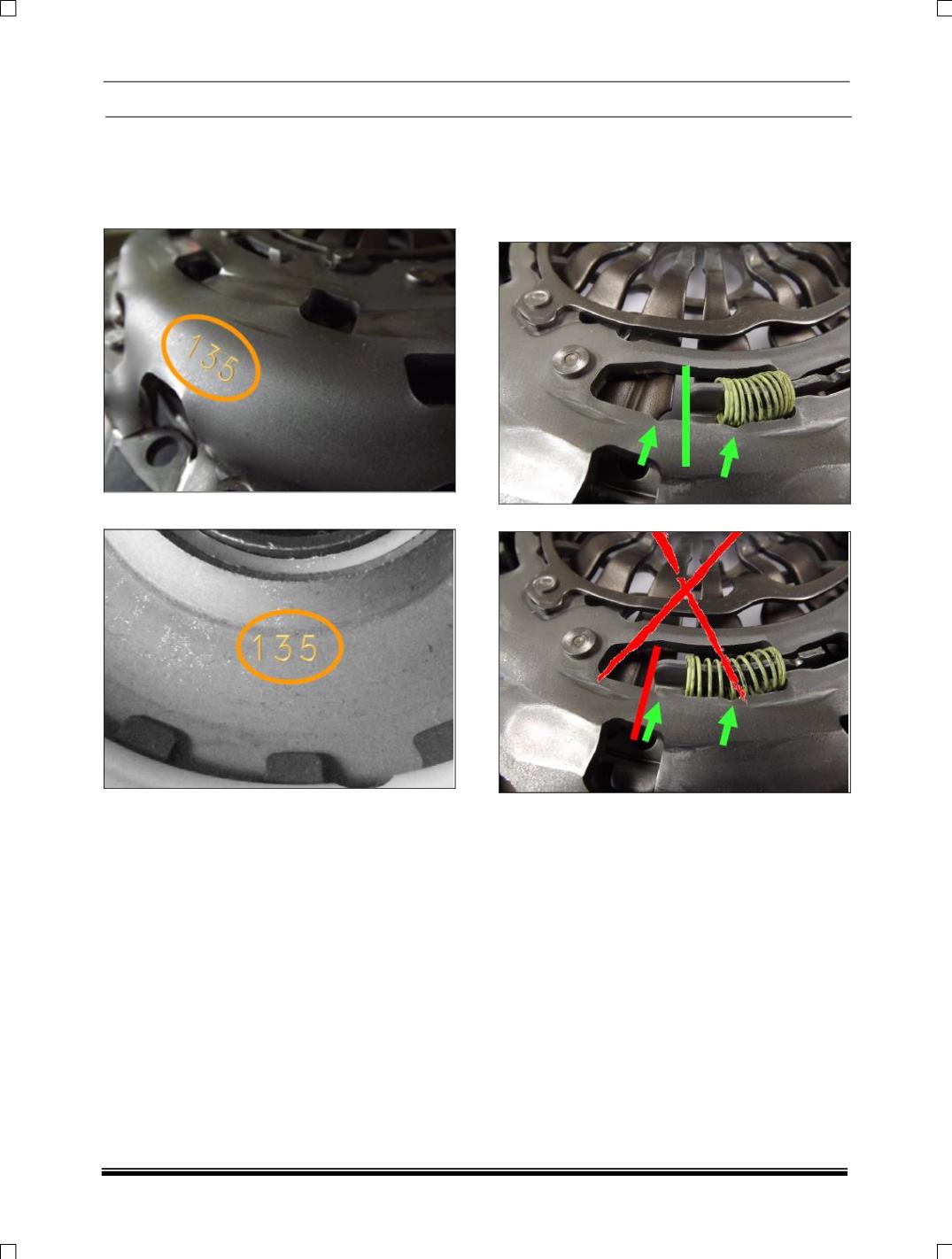

2. Ensure same serial no. marking on SAC cover

assembly & Clutch Disc.

SAC Cover Assembly

Clutch Disc Assembly

3. Don’t mix the disc from SAC-Set 1 to other

SAC- Sets 2, 3, 4. The Release load is

adjusted with same set of SAC and disc. You

can recognize that a disc was measured with

a SAC because of the same serial number.

4. SAC should be assembled with counter

load only (i.e. without releasing the clutch)

5. Don’t engage or disengage a clutch cover

without having a disc under the pressure plate.

SAC will adjust irregularly and produces

unpredictable. Release load and Clamp load

and therefore Pedal load is also unpredictable.

Don’t use this Set anymore.

(Adjusting ring is inside cover notches, SAC is ok)

(Adjusting ring is outside cover notches, SAC is not

ok (Only in new condition))

6. Don't release SAC without a clutch disc under

pressure plate & unless the SAC is properly

screwed to flywheel.

7. Replacement of the clutch should be as a set

only.

8. Do not replace individual clutch disc or SAC.

9. In field strictly follow the procedure as mentioned

in service manual

10. Ensure marking position on adjusting ring,

if unfortunately a SAC adjust during mounting

process, change the whole set.

11. Ensure that the clutch facing material is

not contaminated with oil or grease as this

shall result in clutch slipping.
