3.1.2.3 REPAIRS

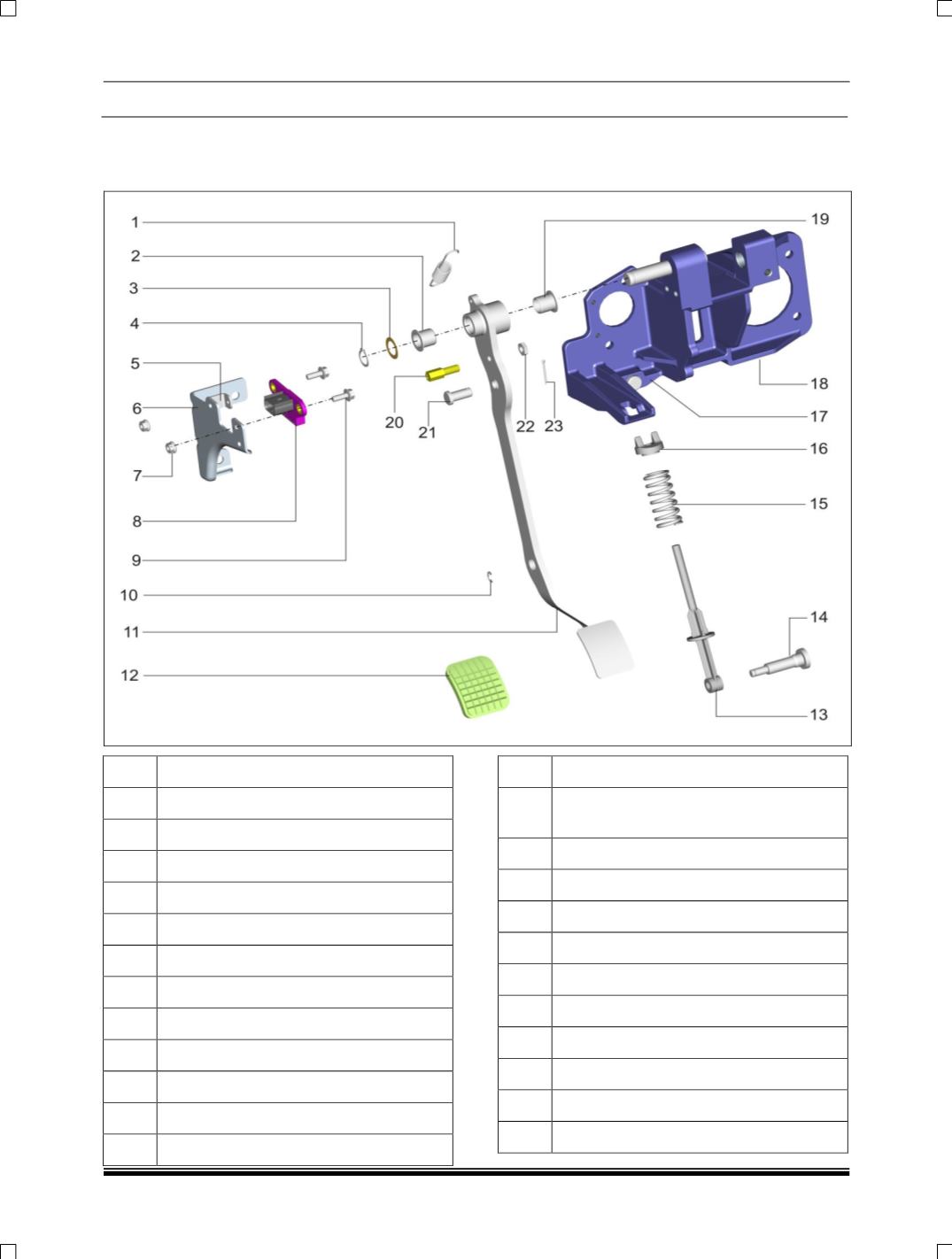

3.1.2.3.1 CLUTCH PEDAL ASSEMBLY
ITEM
DESCRIPTION
01
Clutch Return Spring
02
Pivot Bush
03
Shim for Control Mounting Pins
04
External Circlip
05
Clutch Return Spring bracket
06
Clutch Light Switch Mounting Bracket
07
Hex Fl Nut AM6
08
Contactless Clutch Sensor
09
Hex Fl Screw M6X16
10
Circlip E6
11
Clutch Pedal Assembly
12
Rubber Cover
ITEM
DESCRIPTION
13
Stay Rod (For Clutch Assistance)
(White Color)
14
Pin (For Clutch Assistance Spring)
15
Compression Spring
16
Pivot Pin
17
Stopper Pin
18
Control Mounting Bracket
19
Pivot Bush (For Clutch and Brake Pedal)
20
Contactless Clutch Sensor Magnet Assy
21
Clevis Pin
22
Thin Nut for Magnet
23
Split Pin
