637 / 1906
CLUTCH
9

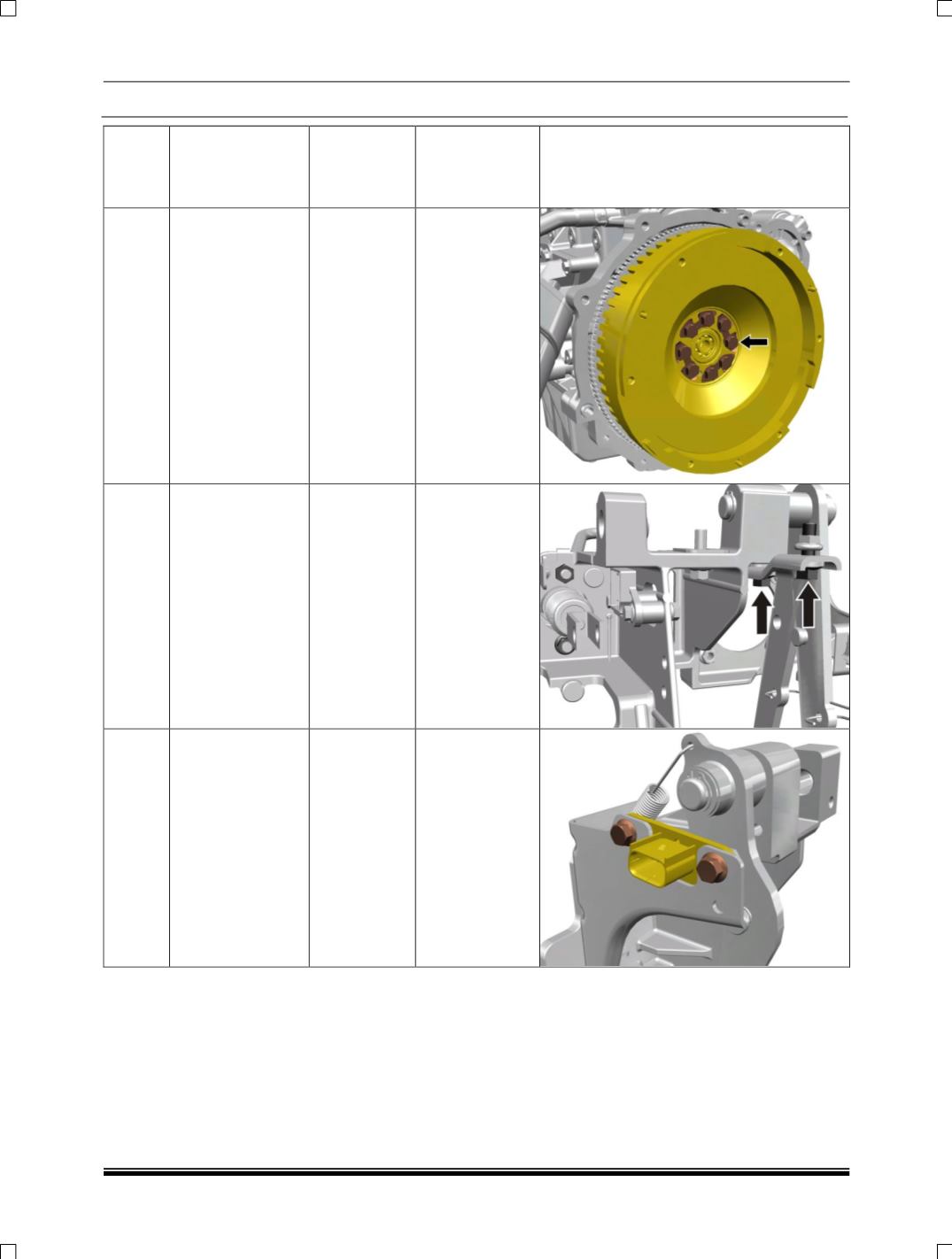

SR. NO. DESCRIPTION
FASTENER
TIGHTENING
TORQUE
(Kg-m)
LOCATION
7
Mounting Bolt
(Flywheel to crank
shaft)
Hex Bolt
M10 X 1
(8 Nos.)
(10.9)
a. Initially tighten
the bolt to torque
of 3.3 ± 0.3.
b. Finally tighten
the bolt by 55
o
±
5
o
angle
8
CCB Support
Bracket
(Z bracket)
Hex FL. Screw
M8 X 25
(2 Nos.)
2.5
9
Contactless Sensor
Mounting
Hex FL Screw
M6X16
1
