ENGINE
99

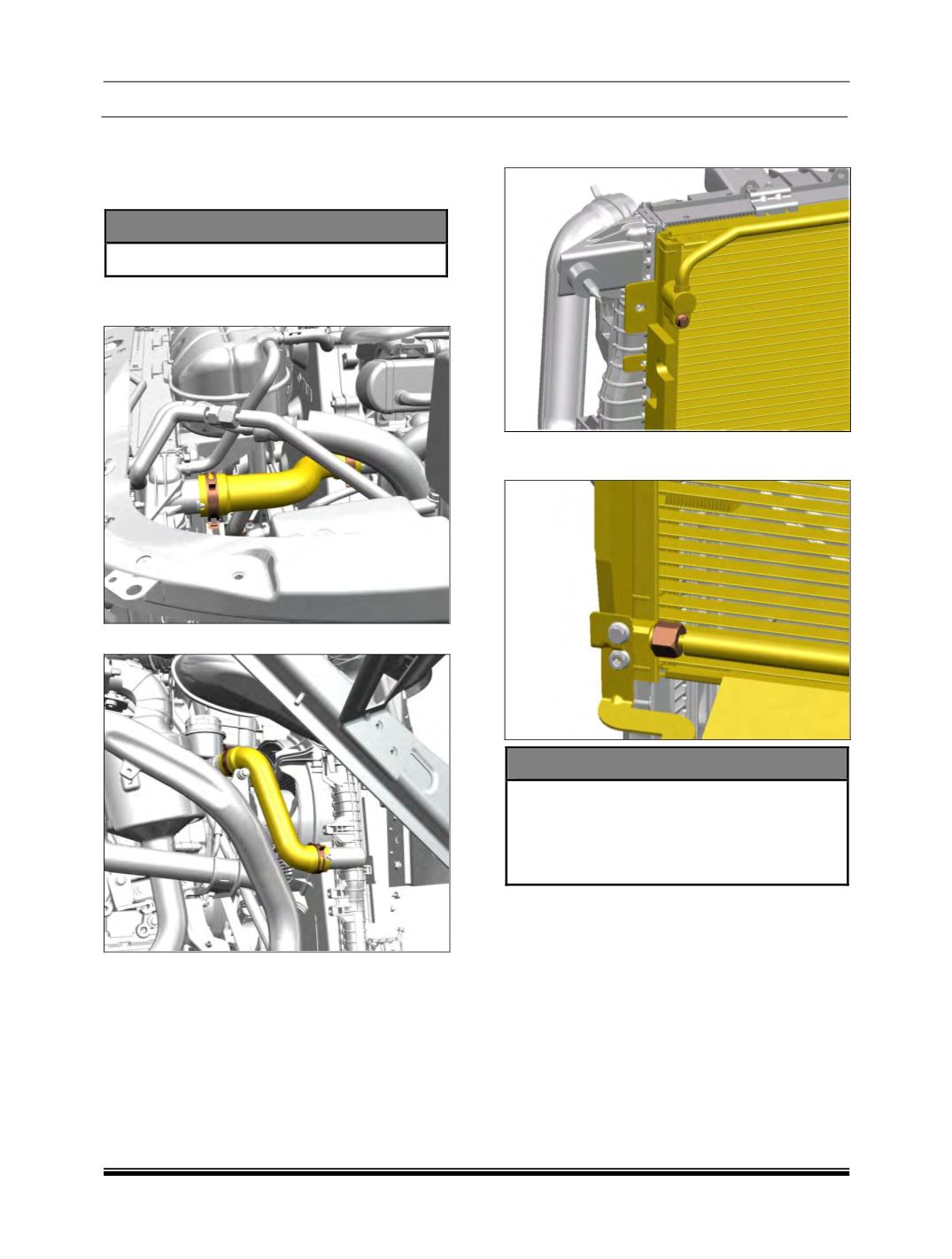

I. Radiator Removal :
1. Drain the coolant and remove the Coolant
tank.
(For procedure refer “Coolant
replacement” in Engine maintenance section)
WARNING
Don’t open the cap when it is hot.
2. Disconnect the radiator top hose at radiator
end.
3. Remove the bottom hose at the radiator end.
4. Remove the radiator fan shroud. (Refer
radiator fan shroud removal.)
5. Discharge the refrigerant using standard
recovering equipment.
6. Loosen and remove the bolt and disconnect
the refrigerant inlet pipe to condenser.
7. Loosen and remove the bolt and disconnect
the refrigerant outlet pipe to condenser.
CAUTION
Never leave the condenser lines open
immediately cover them with caps,
otherwise the desiccant which is in-built in
the condenser may absorb the moisture
from surrounding air and get contaminated.
