HEXA

ENGINE

14. Remove CC (Close couple catalytic

converter) assembly

.(For procedure refer

CCC removal in exhaust system section)

15.

Relieve the fuel pressure. (For procedure

refer maintenance section in fuel system.)

16. Disconnect the fuel line between fuel filter to

HP pump and return line from HP pump.

17. Drain the Power steering Oil at the Power

steering pump and pipe connecter to Steering

RAP. Refer

Steering

section.

18. Remove the starter motor. Refer

Electrical

section.

19. Support the Gearbox from below.

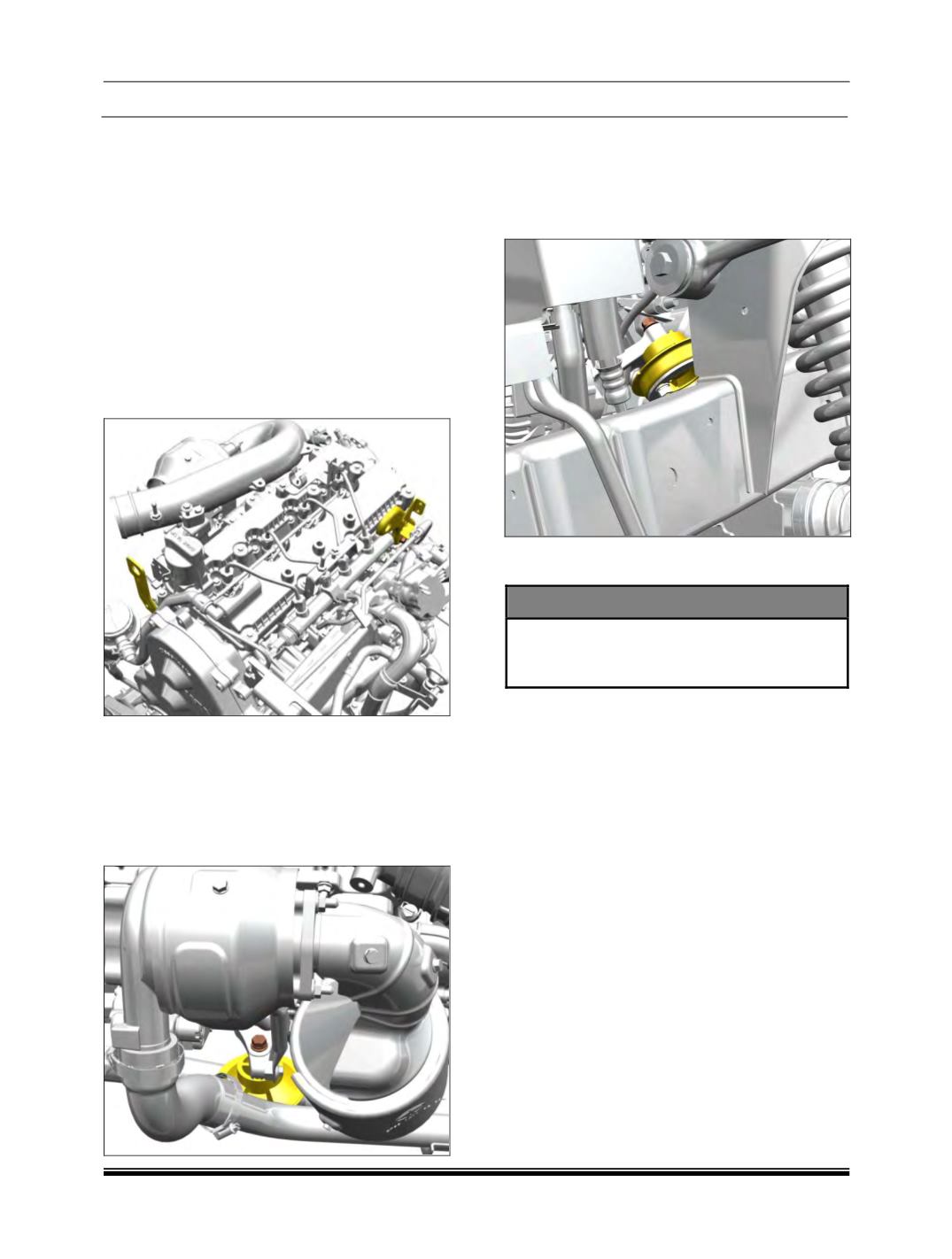

20. Hook the engine at the lifting hooks provided.

21. Raise the crane till the chains are in tension.

22.Loosen and remove the Clutch house

mounting bolts,

(For procedure, refer Gearbox

removal in Gearbox section.)

23.Loosen and remove the RH engine mount by

approaching from top (Access provided after

removing Air filter).

24. Loosen and remove the LH engine mount by

reaching out beyond the suspension tower on

the inner side of the frame, when approached

from the LH wheel arch

(Access provided by

removal of LH front wheel and Wheel arch

inner liner).

25. Slowly lift the Engine out of the engine

compartment.

CAUTION



While lifting the engine out from the engine

bay take extra care to avoid the suspended

engine hitting the windshield bottom..

Fitment :

For fitment follow the reverse order of removal.

Tighten the following fasteners to the

recommended torque.

i) Refrigerant lines on compressor.

ii) Engine mounts

iii) Exhaust pipe joints & CC Assembly

iv) Clutch house mounting bolts.

v) Starter motor.
