ENGINE

98

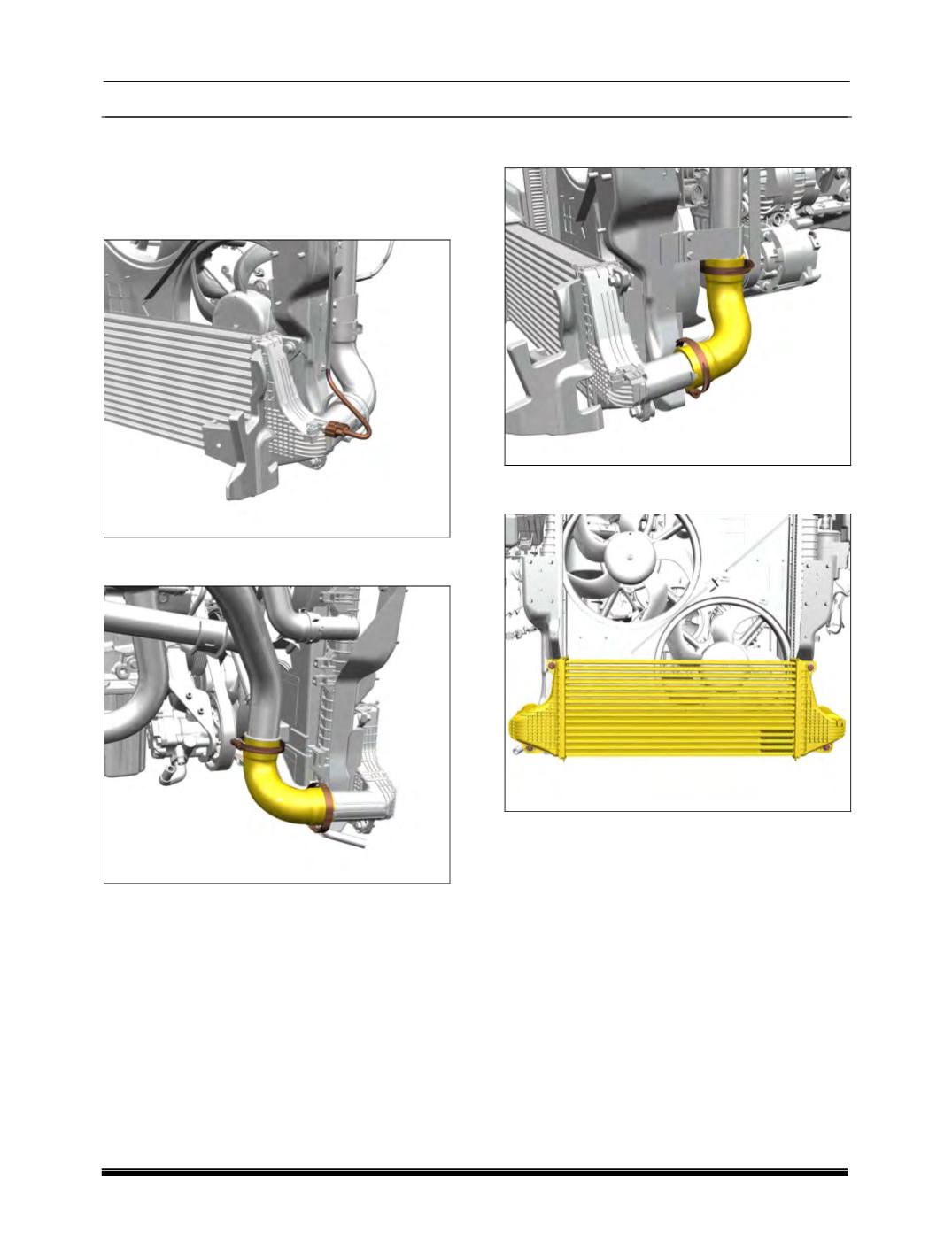

H. Intercooler Removal :

1. Remove the stone guard

(Refer Stone guard

removal procedure in Body section).

2. Disconnect TMAP sensor connection on

Intercooler.

3. Loosen spring clamp and disconnect the

intercooler inlet hose.

4. Loosen spring clamp and disconnect the

outlet hose.

5. Loosen and remove the 4 bolts and take out

the Intercooler assembly.

Fitment :

For re-fitment, follow reverse order of removal

procedure.
