ENGINE

171

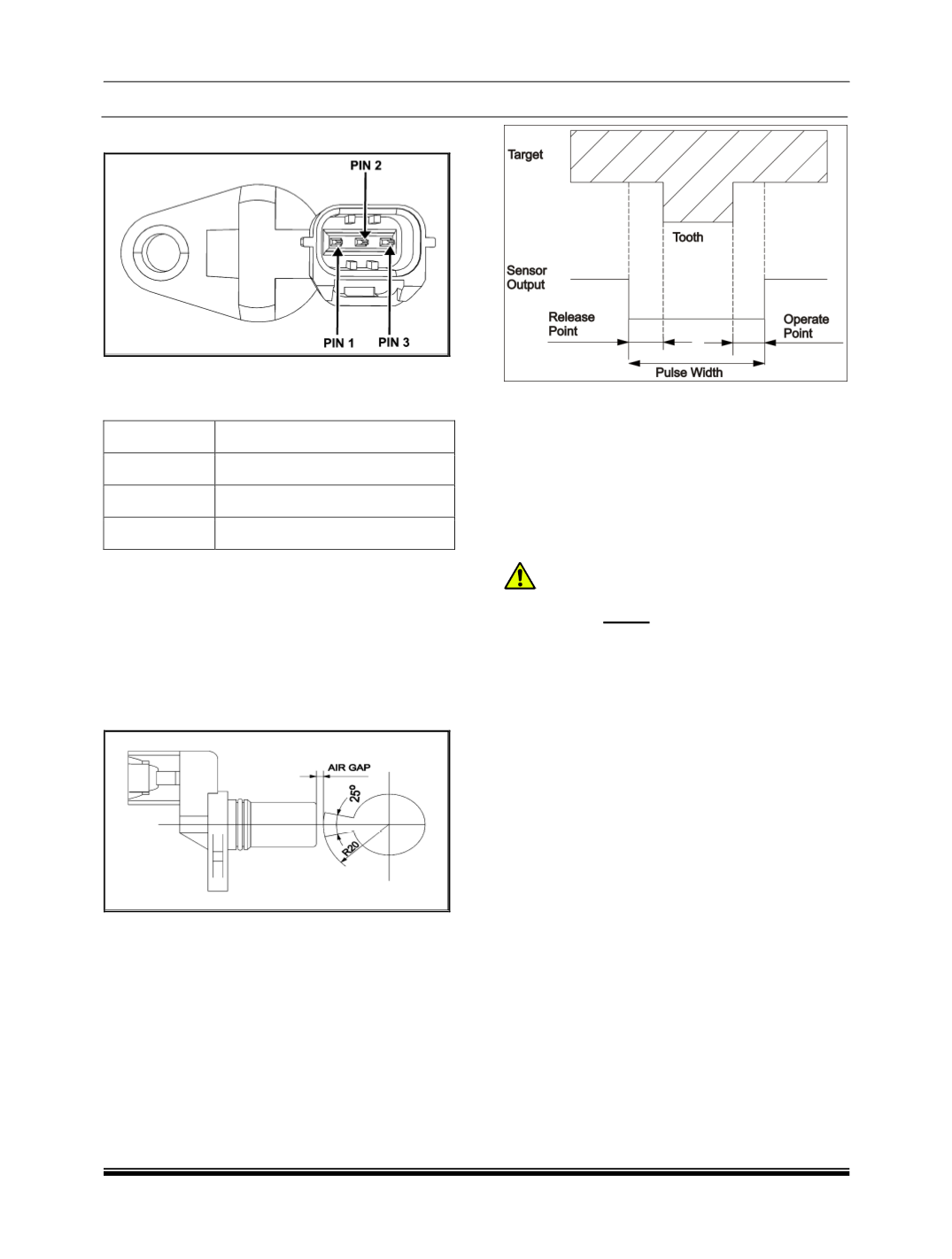

CONNETCOR DETAILS

PIN DETAILS

PIN NO

DESCRIPTION

Pin 1

Power supply

Pin 2

Signal

Pin 3

Earth

REMOVAL

1. Remove engine cover.

2. Disconnect the wiring harness connector from

cam shaft position sensor.

3. Remove one mounting bolt of sensor and take

out the cam position sensor from its location.

INSPECTION

1. Using multimeter measure the voltage across

the pins of cam sensor.

With ignition ‘ON” voltage between pin 2 & 3 is

as below,



4.7 V (

When the flag is not in front of the sensor

)



0.6V (

When the Flag is in front of the sensor

)

REFITMENT

1. Locate the cam shaft position sensor and fit one

mounting bolt and tighten with specified torque.

Tightening torque for bolt – 1 Kgfm

2. Connect the wiring harness connector to the

cam shaft position sensor.

3. Fit engine cover.

CAUTION:

Cam Sensor

Reset

need to be activated in Di-

agnostic Tool whenever Cam Sensor is

changed or When any of the Timing drive sys-

tem components is changed or TDC is reset for

some reason like flywheel change etc.
