ELECTRICAL
337

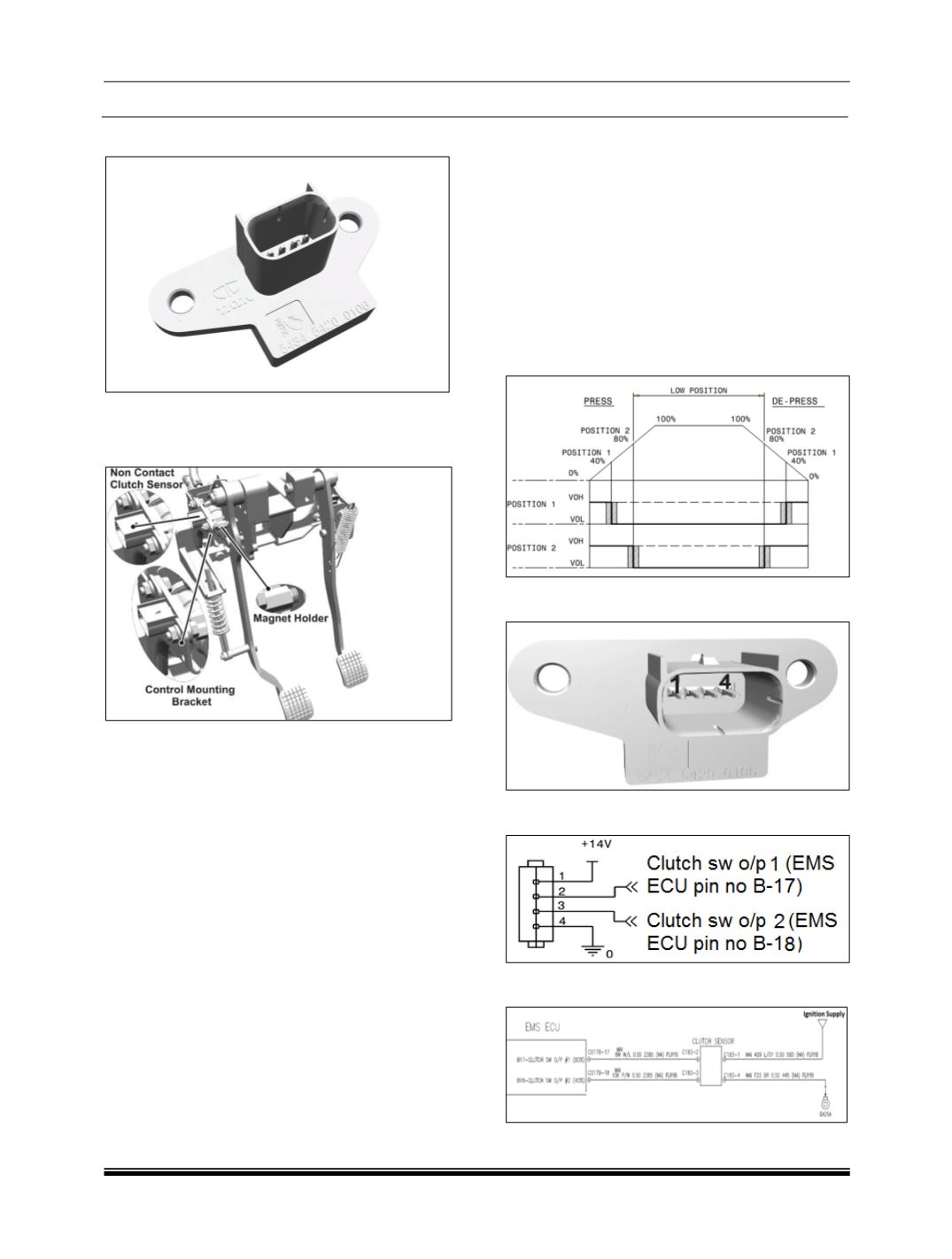

8.26 CLUTCH PEDAL SENSOR
LOCATION
It is fitted on clutch pedal mounting bracket.
This feature is used to prevent failure of Starter
Motor under the following conditions.
A. Cranking when in Geared condition
(Inching)
B. Cranking while Engine is running Non-
Contact
C. Continuous Cranking.
The Non-Contact Clutch Sensor (Hall Type)
replaces Mechanical Switches. It is mounted on
the Control Mounting Bracket and Magnet Holder
is mounted on the Clutch Pedal Lever. When the
Clutch pedal is pressed the Magnet moves in front
of the Sensor and the sensor sends signal to EMS
ECU for control action.
The following functions are achieved.
Cranking only when the Clutch is disengaged.
Disengage Starter as soon as Engine Starts.
Prevent re-cranking when Engine is running.
Delayed cranking in case of Sensor failure. (Fail
Safe)
Thermal protection
Clutch sensor & harness side connector details &
Circuit schematic and paddle travel information:
Fig: Distance traveled by paddle
Connector details
W/H Side connector details
