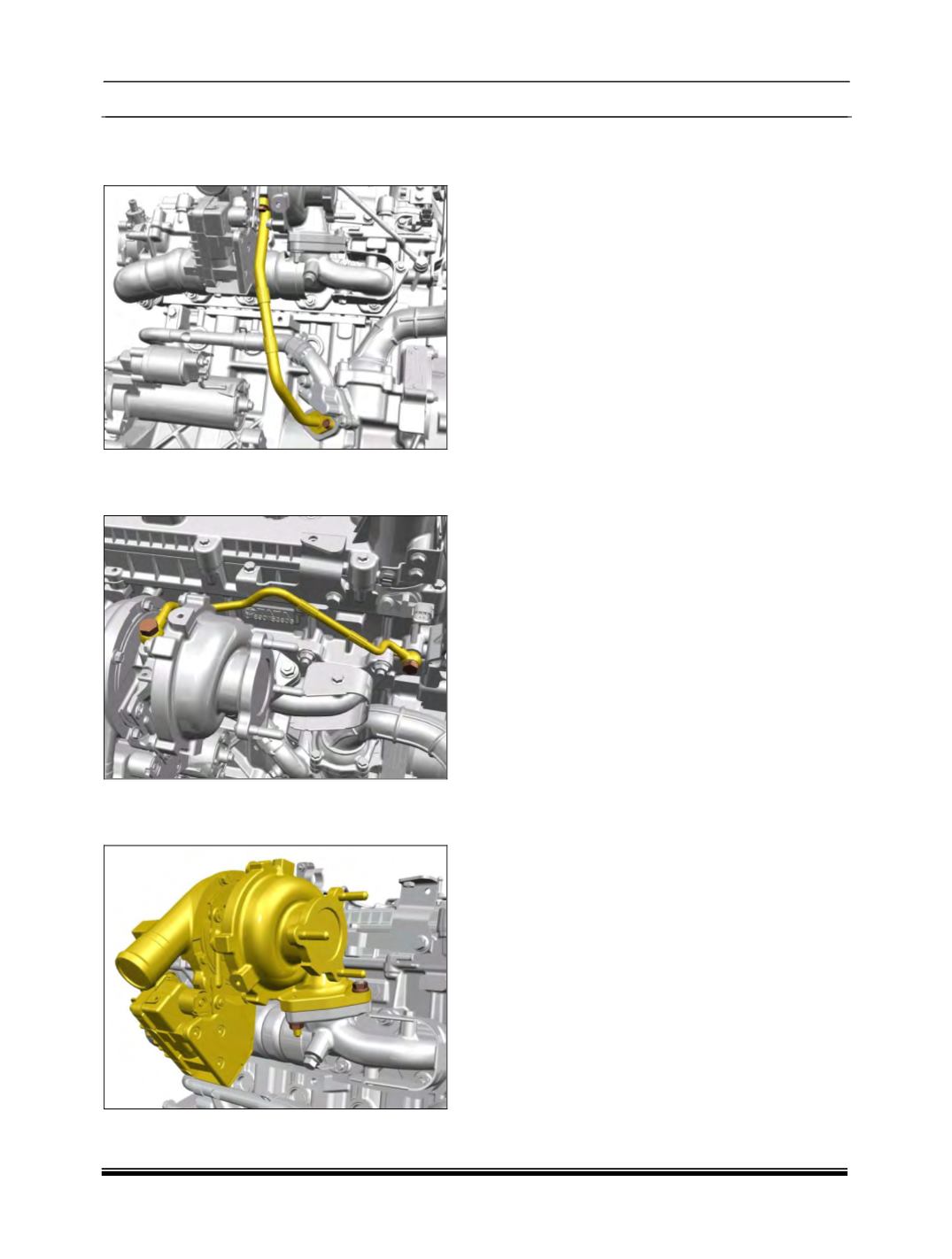

10. Disconnect the Turbocharger oil return tube
by removing two mountings bolts from
cylinder block.
11. Loosen and remove the banjo bolt of oil feeder
line and disconnect the same from
turbocharger and cylinder head.
12. Loosen and remove three mounting nuts and
take out the turbocharger from exhaust
manifold.
Precautions for handling the turbocharger :
• Do not lift the turbocharger by holding the
actuator.
• Do not lift turbocharger holding the rod end.
• Do not lifting turbocharger holding the
compressor side.
• Hold the turbocharger at the turbine housing /
center housing.
• No foreign particles (dust/dirt) should enter
the turbocharger.
• Ensure the conditions of handling and
installation of turbocharger/manifold are such
that there is no risk of shocks, dropping the
turbocharger or damage to the sealing
surfaces (turbine housing inlet and outlet
surfaces, compressor inlet and outlet, oil
circuit), or damage to the actuator or flow
adjusting rod and screw which might lead to
the misalignment.
• Handle the turbocharger carefully and ensure
that it is not dropped.
