ENGINE
94

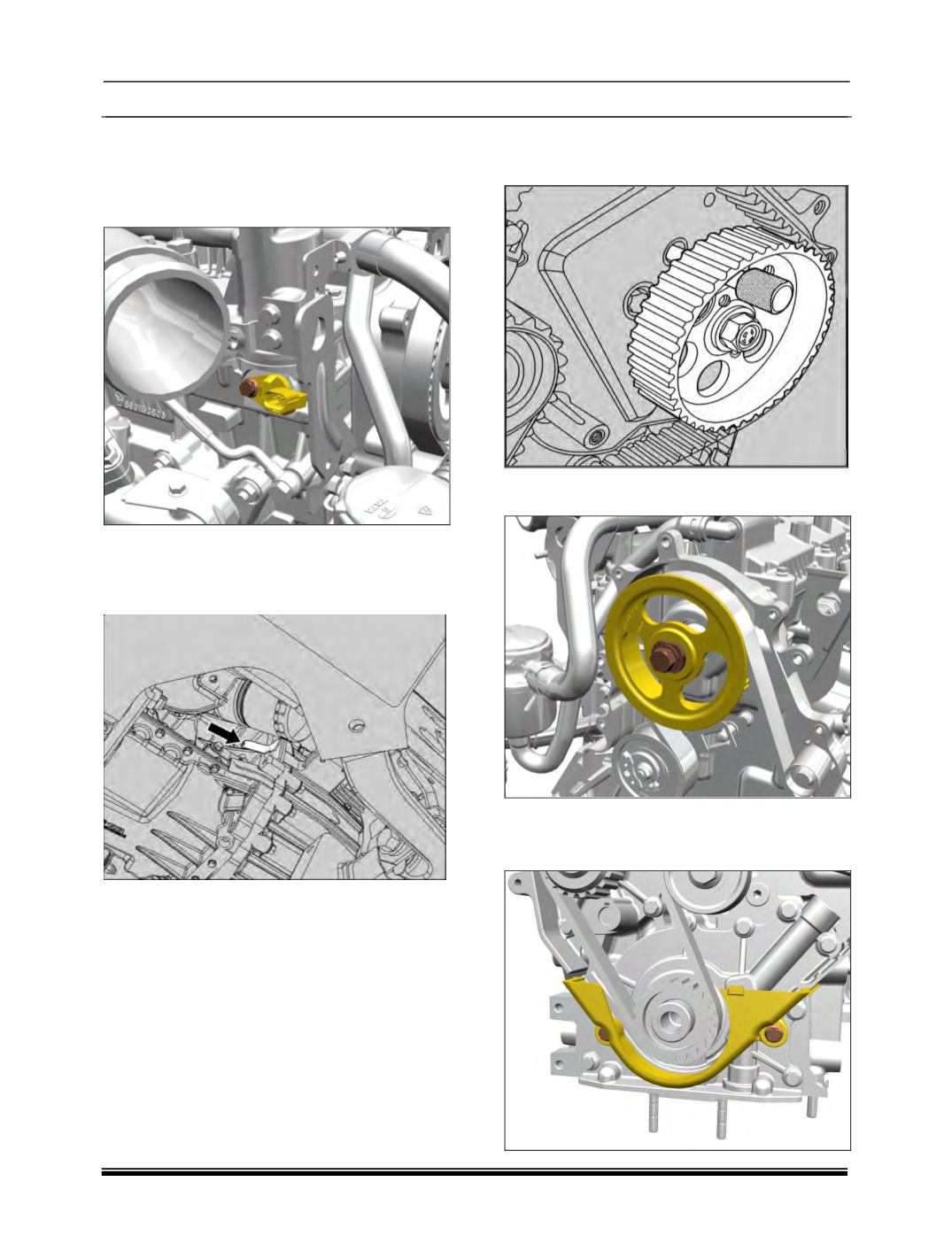

4. Disconnect electrical connection from cam
phase sensor.
5. Remove the cam phase sensor and insert the
locking pin (Part no. 2653 5890 06 09) for on
vehicle ease for locking the camshaft.
6. Lift the vehicle and remove the stone guard.
7. Lock the flywheel using locking pin
(Part no.
2870 5890 06 01) to bring the piston of No.1
cylinder to TDC position.
8. Align hole on the HP mounting bracket and
lock the gear with the help of locking pin
(Part
no. 2653 5890 06 07).
9. Loosen the camshaft gear and remove the
camshaft gear flange.
10. Release the timing belt tension by loosening
the auto tensioner mounting bolt.
11. Remove the timing cover lower.
