ENGINE
93

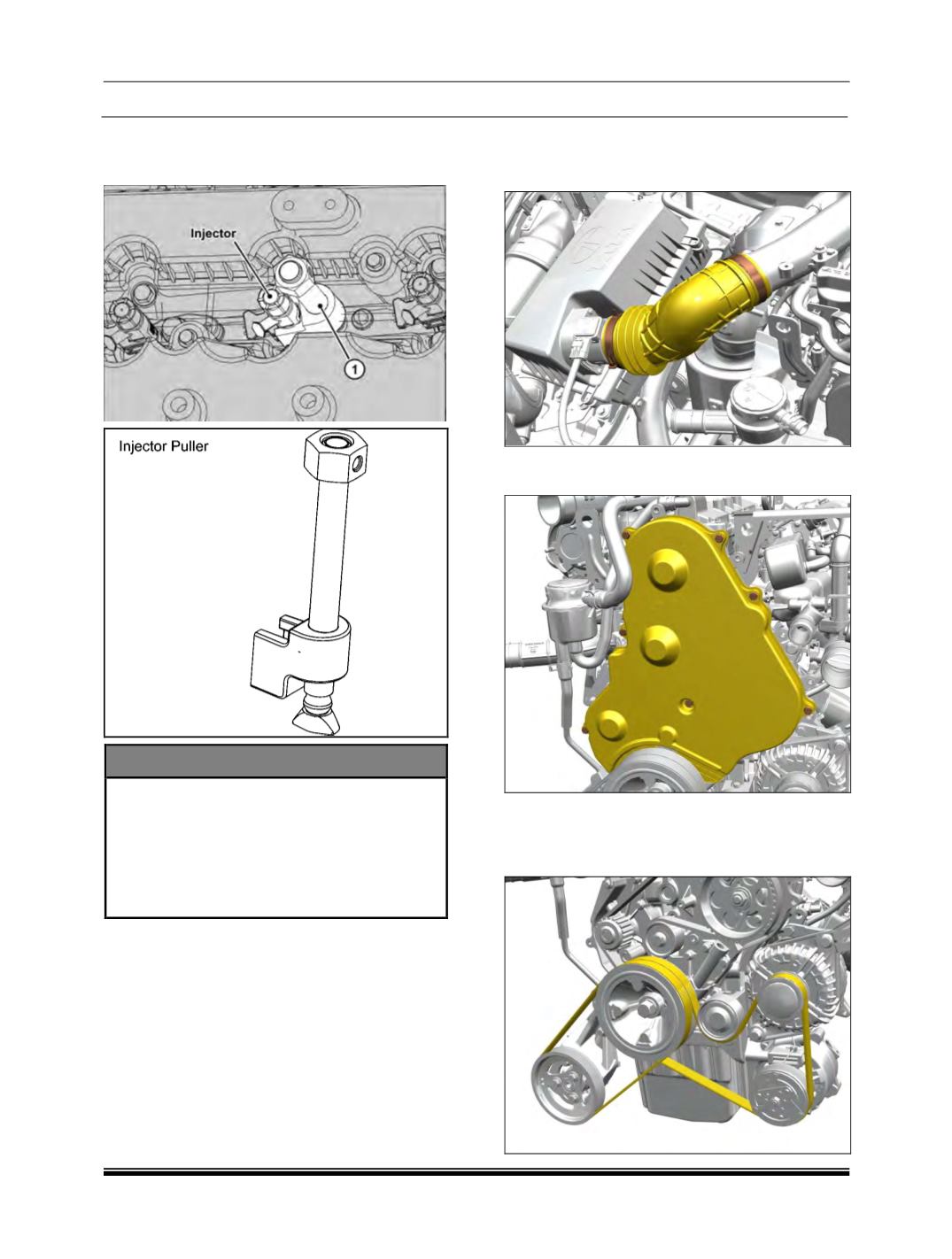

9. Extract the injector using injector removal tool
(1) (Part no. 2868 5890 07 04).
Remove the
injector with the sealing washer.
NOTE
Injector should be tagged as soon as it is
removed to avoid chances of it being
interchanged. Since the I3C code of each
injector is calibrated to the EMS, whenever
an injector is replaced it I3C codes of the
respective injectors should be fed in the
EMS ECU using diagnostic tool
Fitment :
Follow the reverse order of removal for
fitment.
Do not reuse the bolt and washer removed in
step 6, use new ones.
Replace the injector sealing washer while
refitting the injector.
Vacuum clean the injectors.
F. Timing Belt Removal :
1. Remove air filter outlet hose for easy
accessibility.
2. Loosen and remove the front timing cover
bolts and take out the front timing cover.
3. Remove the AC compressor belt and Power
steering pump belt (stretch belt) (for
procedure refer AC compressor belt removal
procedure in this section).
