ELECTRONIC STABILITY PROGRAM (ESP)
15
C
DIAGNOSTICS
A) STEERING ANGLE SENSOR CALIBRATION USING DIAGNOSTIC TOOL.
1. Open the TDS application.

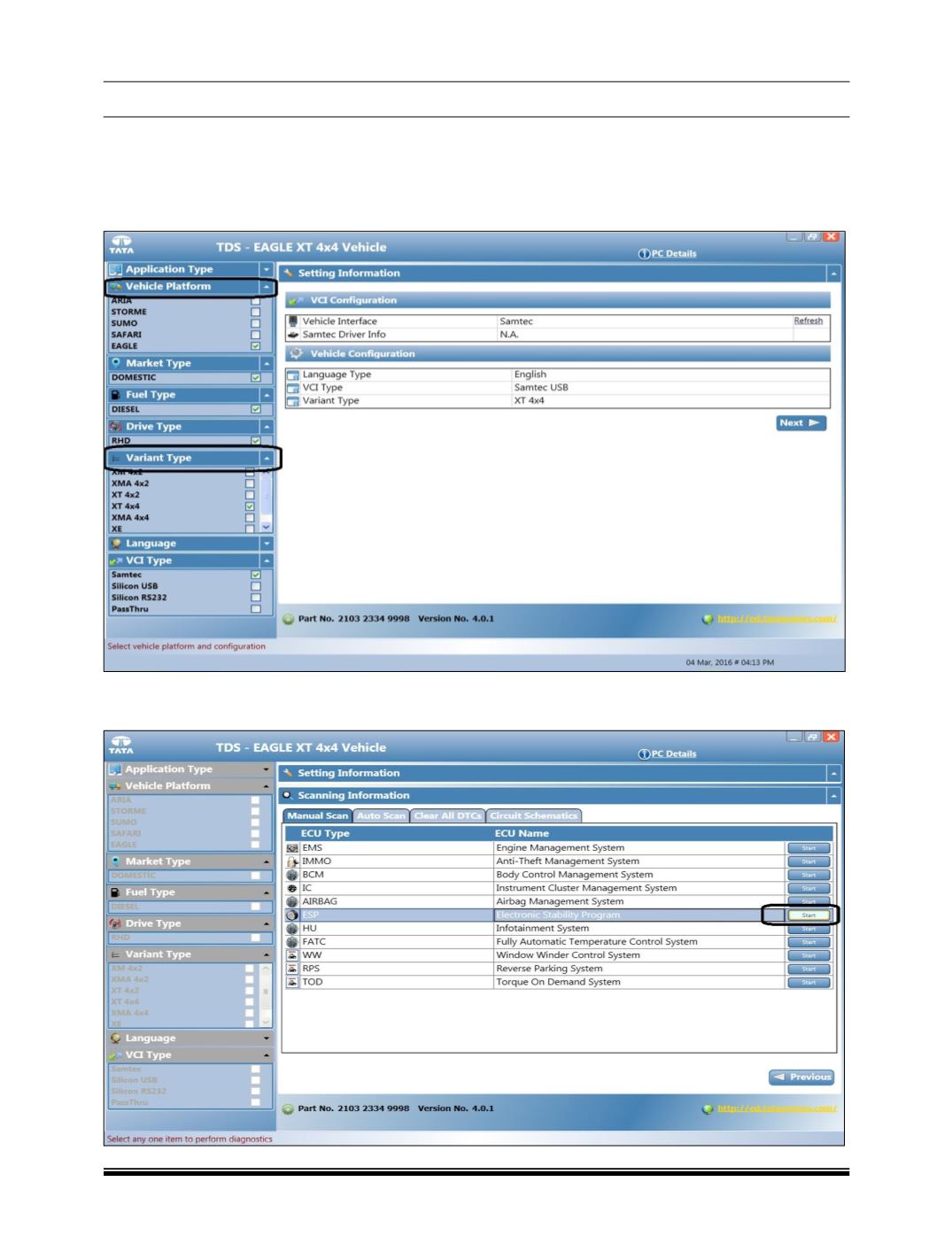

2. Select the appropriate Vehicle Platform and Variant Type as shown below. Then click on Next button
3. In the next screen User can see all the ECUs present in the vehicle as shown below.
4. Select ESP ECU and click on Start button to start the communication between ECU and PC.
