Anti-lock Braking System(ABS)
12

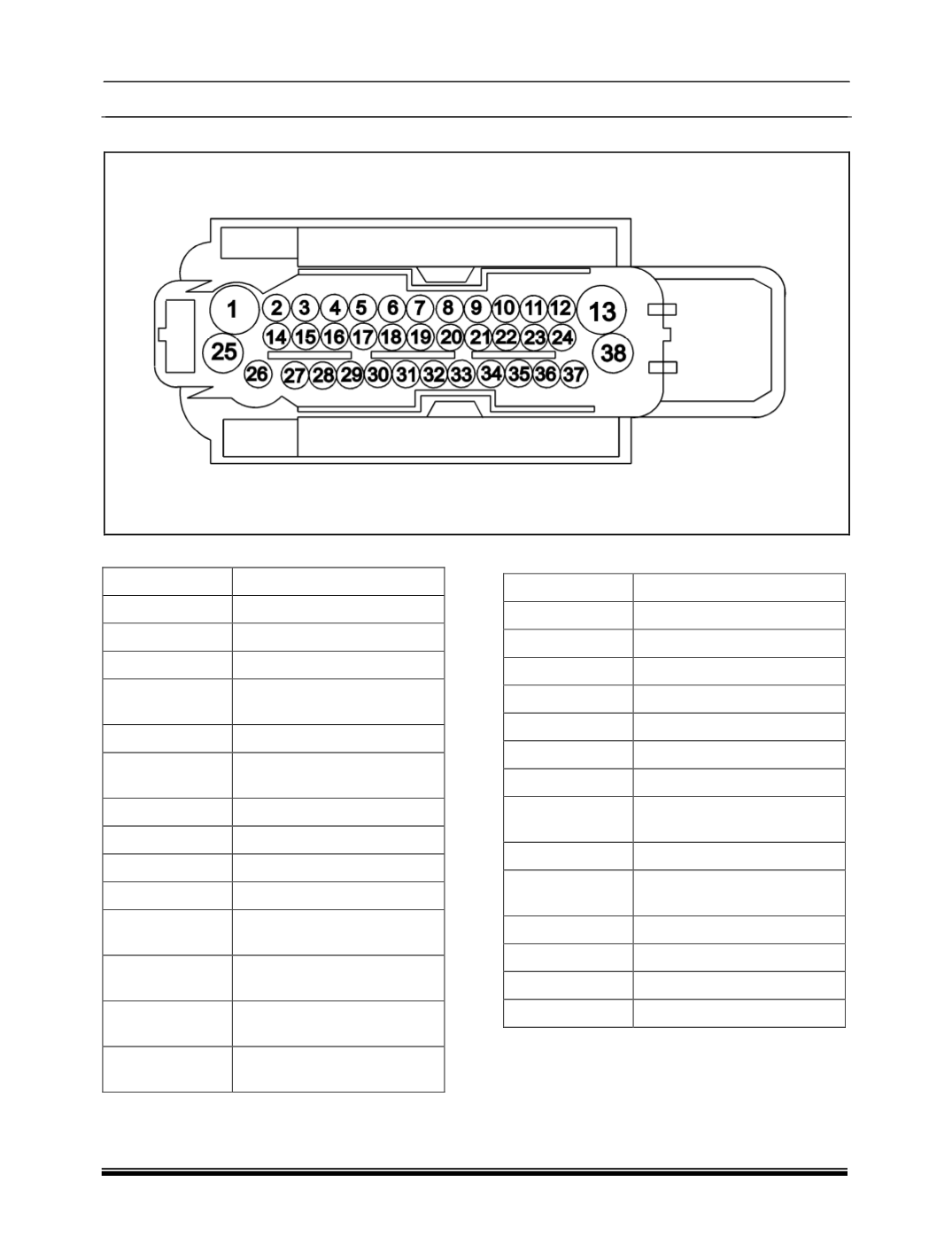

PIN OUT ABS ECU CONNECTOR (K2):
ECU Pin Details :
PIN NO.
DESCRIPTION
1
Battery positive
2
VSO
3
EBD Warning Lamp
4
Front Right Wheel Speed
Sensor Signal
5 to 7
Not Used
8
Front Left Wheel Speed
Sensor Signal
9 to 12
Not Used
13
Ground
14
CAN L
15
Not Used
16
Front Right Wheel Speed
Sensor Power
17
Rear Right Wheel Speed
Sensor Power
18
Rear Left Wheel Speed
Sensor Signal
19
Front Left Wheel Speed
Sensor Power
PIN NO.
DESCRIPTION
20 to 21
Not Used
22
Off-road switch
23-24
Not Used
25
Battery Positive
26
CAN H
27
Not Used
28
Ignition
29
Rear Right Wheel Speed
Sensor Signal
30
Brake Light Switch
31
Rear Left Wheel Speed
Sensor Power
32
Not Used
33
ABS Warning Lamp
34 to 37
Not Used
38
Ground
