Dismantling :
NOTE :
To overhaul caliper assembly, the carrier
assembly need not be removed from the
vehicle. (Refer the note at the end of caliper
assembly with carrier removal in this section.)
1 Remove the caliper pads.
(For procedure
refer caliper pad replacement process in this
section.)
2 Remove the rear caliper assembly from the
vehicle.
(For procedure refer caliper assembly
removal process in this section.)

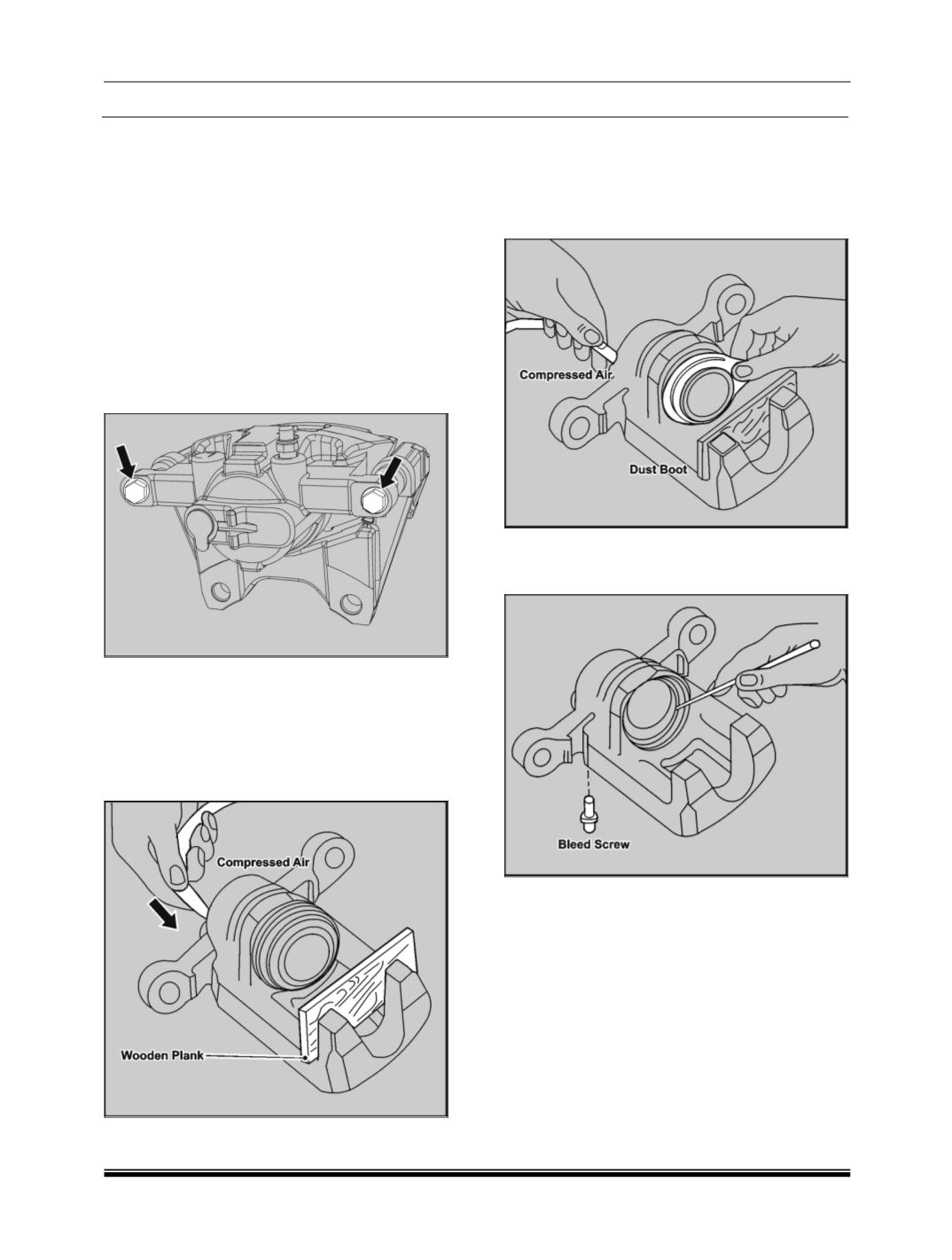

3 Loosen and remove the pin bolts and
separate the caliper housing from carrier.
4 Take out the sliding boot and pin from the
carrier.
5 Keep the wooden piece in between the
plunger and the caliper housing and blow dry
compressed air into the caliper gradually
through the inlet port.
(Where banjo bolt get
connected).
6 Now you will observe the piston coming out of
the caliper gradually. After cleaning the
surfaces remove the dust boot from caliper
housing by pulling the same with fingers.
Take out the piston from the caliper housing
and remove the boot from the piston.
7 Remove sealing ring from the groove in the
caliper housing. Remove the bleed screw
from the caliper housing.
