HEXA

REAR AXLE

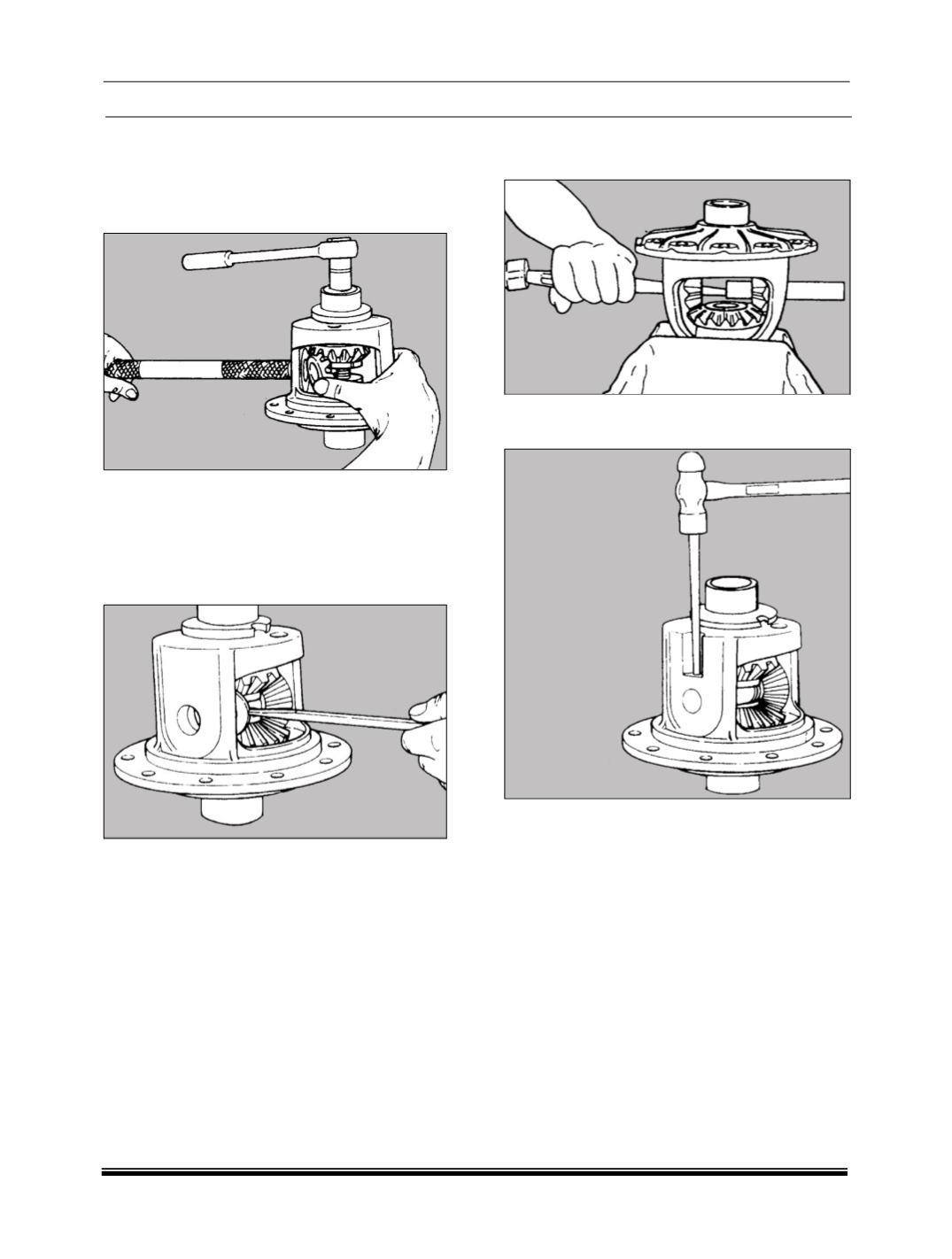

11.While holding gears in place, insert turning bar

into case. Pull on bar to rotate case allowing

gears to turn. Make absolutely sure that the

holes of the pinion mate are in alignment with

holes of the case.

12.Pre-lubricate spherical washers. Torque

forcing screw until it is tight. This will collapse

the Belleville plates and allow clearance

between gears.

13.Assemble spherical washers into case. Use a

small screwdriver to push washers into place.

14.Remove tools and assemble cross pin shaft

and drive in shaft with hammer.

15.Use the drift to replace the roll pin that retains

the cross shaft.

16.When roll pin bottoms out, stake

(Peen)

a little

metal over the edges in two places 180° Apart

NOTE

For further assembly of differential case into

carrier section refer follow procedure as that of

standard differential.
