REAR AXLE

Total amount of space measured without ring gear.



Measurement A ‗‗‗‗‗

Total amount of space measured with gear set assembled in

carrier



Measurement B ‗‗‗‗‗

Measurement A minus Measurement B dimensions



Measurement C ‗‗‗‗

Assemble shim pack using dimension determined in A, B, C adjusting the packs as described below.

RING GEAR SIDE

Assemble shim pack to measurement B- 0.125 mm or B- 0.005” mm

OPPOSITE SIDE OF RING GEAR

Assemble shim pack to measurement C. Add shim thickness 0.20 mm or 0.008” for differential bearing

preload and backlash.

14.Install side bearing cone on hub of differential

assy. And place bearing cup along with

selected shim pack in between side bearing

and carrier assembly and press with the help

of dolly

(Part No.289458903509)

15.Repeat this procedure for installation of shims /

bearing cone on opposite side of differential

case.

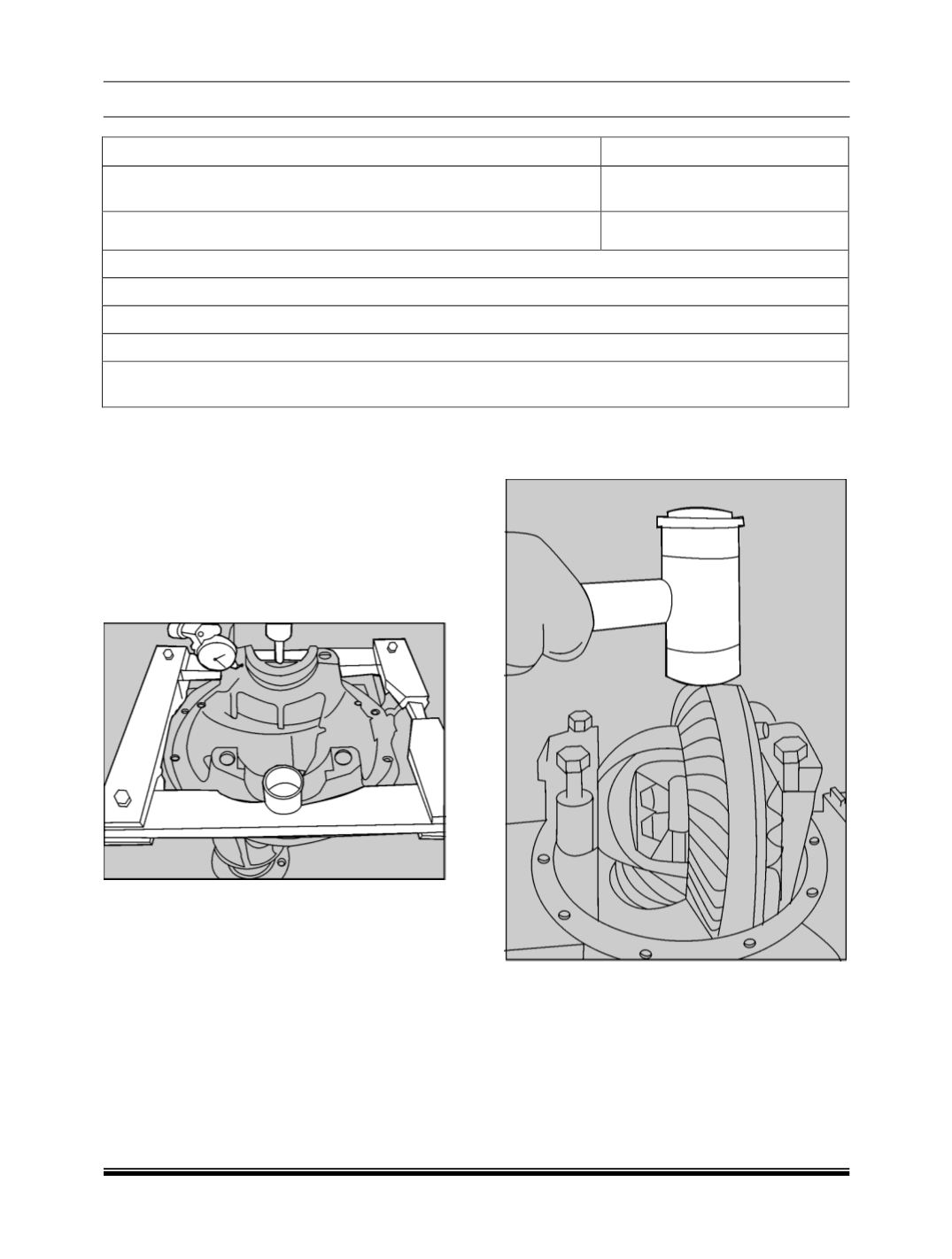

16.Install spreader and dial indicator. Spread the

carrier. Do not spread it over 0.58 mm.

17.Remove dial indicator. Install differential case

assembly into carrier with the help of mallet

and remove the spreader.

WARNING

Carelessness while installing differential case

assembly may result in injury.
