TIAGO

TIAGO AMT Gasoline

DTC Troubleshooting Guide

Version: 2.0

Date: 06-06-2016

Author: Sathi/Anupama

Page: 369 of 424

TATA MOTORS Ltd.

This document must not be used in any way, such as copying and redistributing to third parties, without the consent of author.

After rectification, ensure the following points using TML diagnostic tool before handing over to customer.

DTC should not be present in ECU memory.

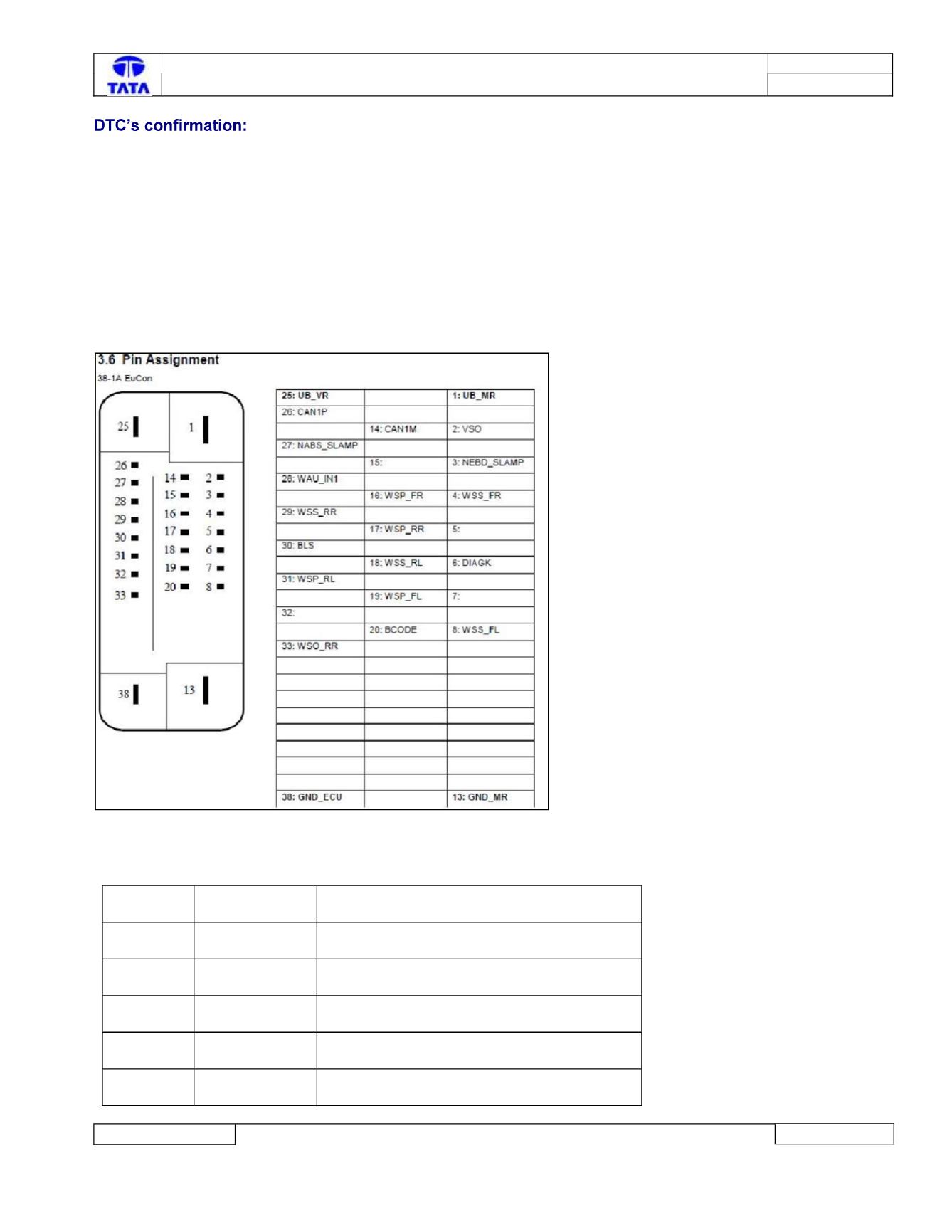

Connector View & Information: -

ABS ECU side connector diagram

ABS ECU Pin assignment:-

Pin No.

Pin Name

Description

CAN_H

CAN High

CAN_L

CAN Low

Ign

Ignition

1,25

Vbat

Supply Voltage Battery

13,38

GND

Battery GND
