CONSOLE

5

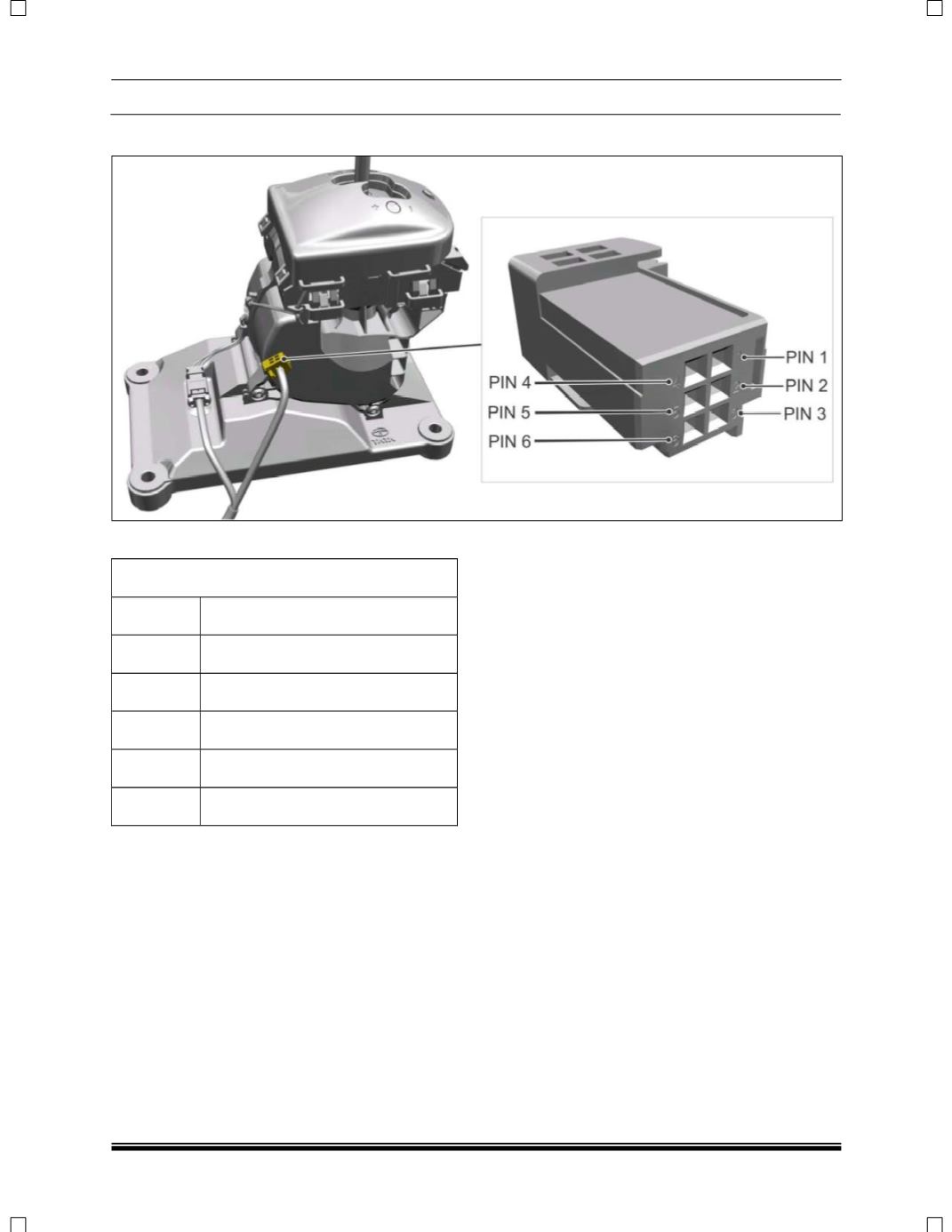

4. GEAR SHIFTER PIN CONFIGURATION

GEAR SHIFTER PIN CONFIGURATION

PIN 1

GND / REFERENCE

PIN 2

SIGNAL A4

PIN 3

+ V

BATT

PIN 4

SIGNAL A1

PIN 5

SIGNAL A2

PIN 6

SIGNAL A3
